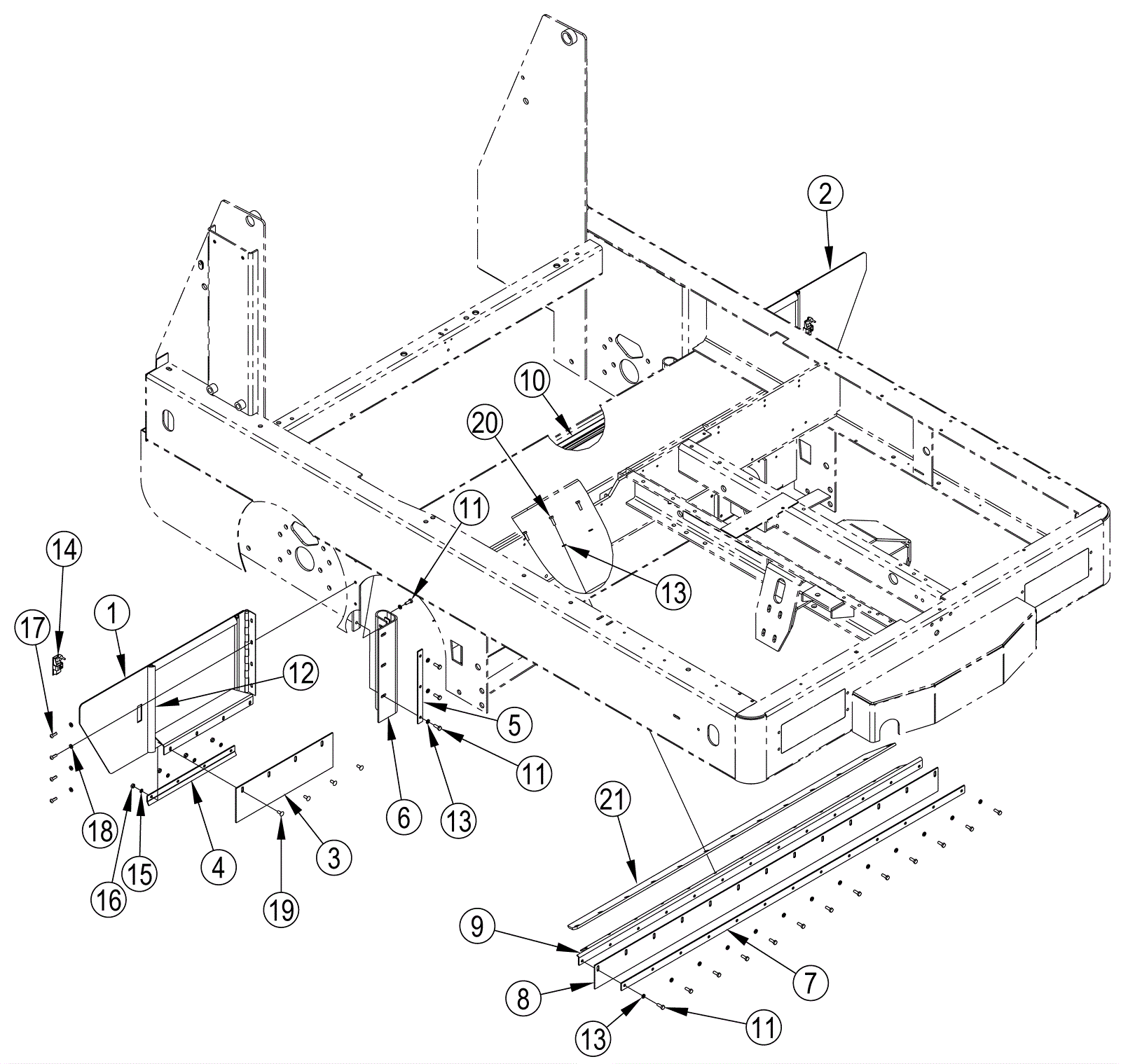

7765 Broom and Brush Chamber Door Assembly

#PartDescriptionPriceReqNotesAvailability
1 272-6950 Left hand broom chamber door $306.30 1 usually ships 1-5 days
2 272-6951 Right hand broom chamber door $306.30 1 usually ships 1-5 days
3 272-6952 Broom chamber door flap $111.99 2 usually ships 1-5 days
4 272-6953 Door flap strap $44.58 2 usually ships 1-5 days
5 272-6954 Broom chamber strap $12.31 4 usually ships 1-5 days
6 272-6955 Broom chamber flap $86.09 2 usually ships 1-5 days
7 272-6956 Broom chamber flap strap $74.21 1 usually ships 1-5 days
8 272-6957 Broom chamber flap $245.37 1 usually ships 1-5 days
9 272-6958 Flap bracket $735.56 1 usually ships 1-5 days
10 272-6959 Gasket $78.58 1 usually ships 1-5 days
11 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 25 ships same day
12 272-6960 Gasket $11.99 1 usually ships 1-5 days
13 999-0060 Washer 1/4 split lock plain finish $0.99 33 ships same day
14 272-6961 Flush mount latch $110.55 2 usually ships 17-28 days
15 372-1011 Washer 1/4 $12.31 8 usually ships 17-28 days
16 999-0181 Nut 1/4-20 hex jam plain finish $0.99 8 ships same day
17 999-0235 Screw 1/4-20 x 3/4 button head socket plain finish $0.99 8 ships same day
18 999-0998 Washer #10 flat stainless steel $0.99 8 ships same day
19 372-1247 Bolt 1/4-20 x 63/100 carriage head $13.17 8 usually ships 17-28 days
20 999-0822 Screw 1/4-20 x 7/8 hex head plain finish $0.99 13 ships same day
21 272-6963 Front broom chamber flap $444.17 1 usually ships 1-5 days
