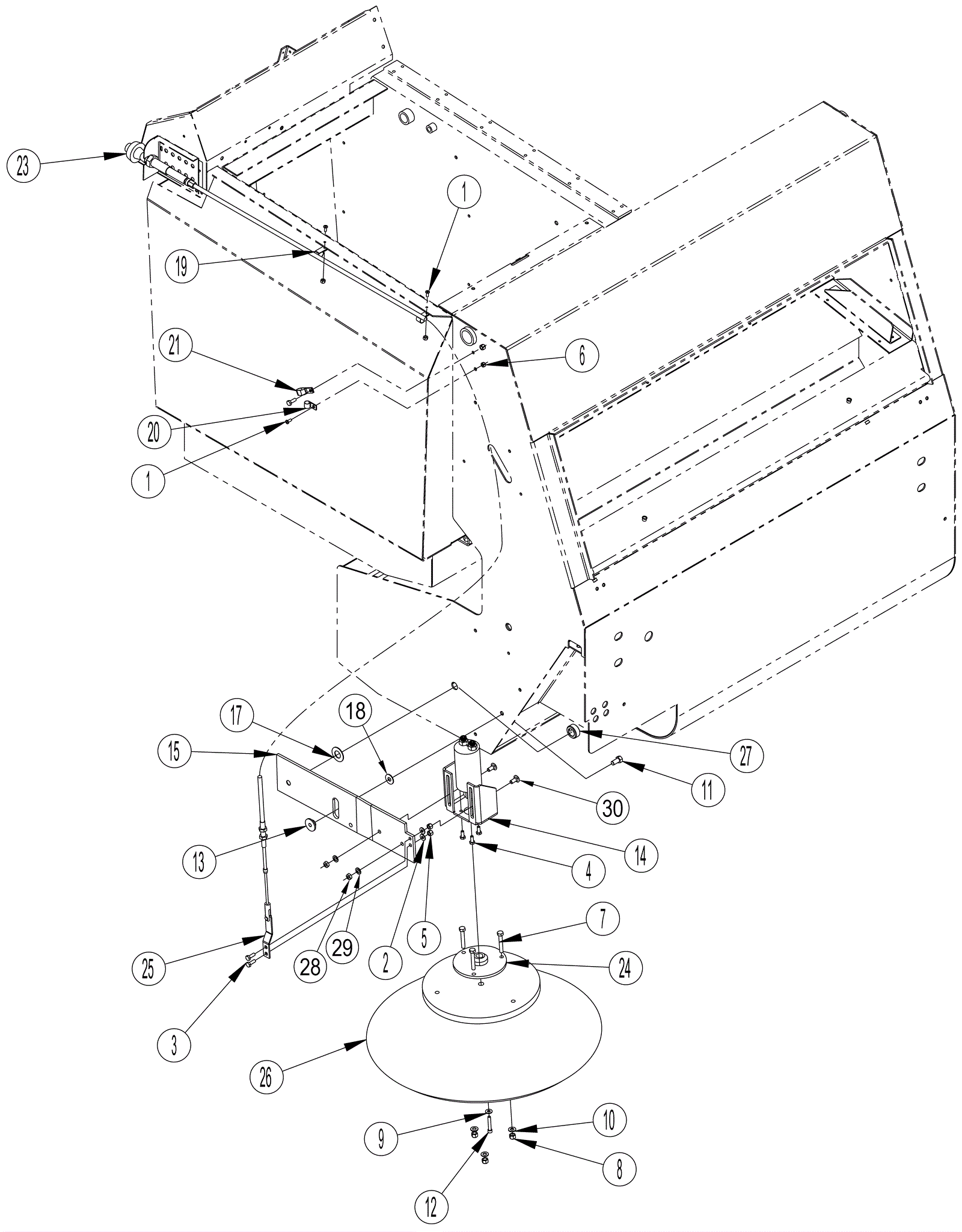

7765 Side Broom Variable Dump Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 3 ships same day
2 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
3 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel $0.99 3 ships same day
4 372-1245 Screw 1/4-28 x 31/50 hex head $14.41 3 usually ships 13-18 days
5 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 3 ships same day
6 999-0199 Nut 10-24 nylon insert lock zinc plated $0.99 3 ships same day
7 999-0792 Screw 5/16-18 x 2 flat head slotted stainess steel $1.66 3 ships same day
8 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 3 ships same day
9 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 1 ships same day
10 999-9004 Washer 5/16 SAE flat stainless steel $1.69 3 ships same day
11 272-5257 Bolt 3/8-16 x 3/4 hex head lock $12.89 1 usually ships 1-5 days
12 372-1246 Screw 1/4-28 x 1 1/2 socket head $12.89 1 usually ships 13-18 days
13 272-6934 Bushing $115.74 1 usually ships 1-5 days
14 272-6935 Side broom bracket $156.02 1 usually ships 1-5 days
15 272-6936 Side broom weldment arm $153.00 1 usually ships 1-5 days
16 272-6937 Main broom motor $1,843.84 1 usually ships 13-18 days
17 170-6933 Washer 3/4 x 1 1/2 x 1/16 flat $12.89 1 usually ships 1-5 days
18 999-0024 Washer 5/16 flat stainless steel $1.34 1 ships same day
19 170-8266 Clamp $12.89 2 usually ships 1-5 days
20 272-6941 P-clamp $12.89 1 usually ships 1-5 days
21 272-3775 Double clamp $14.41 1 usually ships 1-5 days
23 272-6943 Cable $353.25 1 usually ships 13-18 days
24 272-6944 Weldment flange $320.69 1 usually ships 1-5 days
25 272-6945 Strap $79.22 1 usually ships 1-5 days
26 993-2154 BROOM, SIDE POLY (OBSOLETE) $84.53 1 usually ships 1-5 days
27 272-6946 Set screw collar $19.25 1 usually ships 1-5 days
28 999-0069 Nut 5/16-18 hex $0.99 2 ships same day
29 170-6750 Washer 5/16 type A $11.35 2 usually ships 1-5 days
30 999-9069 Bolt 5/16-18 x 3/4 carriage head $0.99 2 usually ships 1-5 days
N/S 272-6938 Key $32.56 1 usually ships 13-18 days
N/S 272-6939 Seal kit $305.09 1 usually ships 1-5 days
N/S 272-6940 Seal kit $281.00 1 usually ships 1-5 days
N/S 272-6942 Fitting $15.17 1 usually ships 1-5 days
