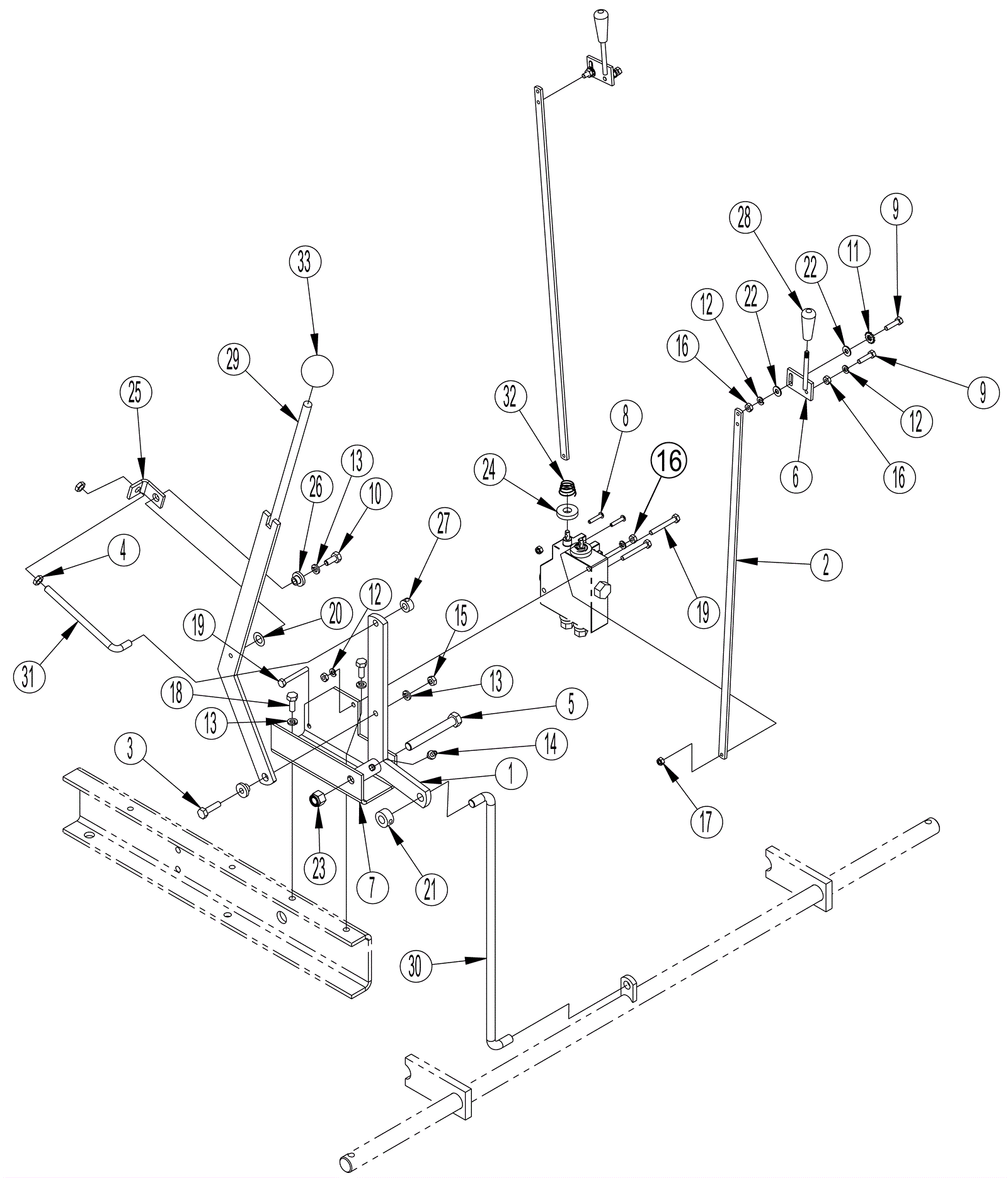

7765 Main Broom Linkage Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 272-6916 Weldment crank $103.00 1 usually ships 1-5 days
2 272-6917 Link $49.63 2 usually ships 1-5 days
3 999-0162 Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated $0.99 1 ships same day
4 999-0247 Nut 3/8-16 hex jam plain finish $0.99 2 ships same day
5 272-6918 Screw 1/2-13 x 3 3/4 hex head $12.31 1 usually ships 1-5 days
6 272-6919 Weldment lever $123.12 2 usually ships 1-5 days
7 272-6920 Bracket $67.42 1 usually ships 1-5 days
8 170-6770 Screw 10-24 x 1 $12.31 2 usually ships 1-5 days
9 999-0830 Screw 1/4-20 x 1 hex head plain finish $0.99 4 ships same day
10 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 1 ships same day
11 999-0017 Washer 1/4 external star lock $0.99 2 ships same day
12 999-0060 Washer 1/4 split lock plain finish $0.99 6 ships same day
13 170-6686 Washer 5/16 lock $10.85 4 usually ships 17-28 days
14 272-6921 Straight lubrication fitting $13.76 1 usually ships 1-5 days
15 999-0069 Nut 5/16-18 hex $0.99 1 ships same day
16 170-6639 Nut 1/4-20 $13.17 6 usually ships 1-5 days
17 999-0199 Nut 10-24 nylon insert lock zinc plated $0.99 2 ships same day
18 181-0983 Screw 5/16-18 x 7/8 hex head $12.31 2 usually ships 1-5 days
19 999-0258 Bolt 1/4-20 x 2 hex head grade 5 zinc plated $0.99 2 ships same day
20 170-7562 Washer 7/8 x 1/2 x 5/32 spring $12.31 1 usually ships 1-5 days
21 170-7567 Collar screw set $13.76 1 usually ships 1-5 days
22 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
23 999-1208 Nut 1/2-13 nylon insert lock stainless steel $2.53 1 ships same day
24 372-1244 Felt washer $10.85 2 usually ships 17-28 days
25 272-6924 Main broom adjusting bracket $29.23 1 usually ships 1-5 days
26 170-7552 Flanged bushing $14.91 2 usually ships 1-5 days
27 272-6925 Set screw collar $13.76 1 usually ships 1-5 days
28 272-6926 Handle $46.00 2 usually ships 1-5 days
29 272-6927 Weldment lever $199.52 1 usually ships 1-5 days
30 272-6928 Broom lift link $57.16 1 usually ships 1-5 days
31 272-6929 Adjusting rod $81.60 1 usually ships 1-5 days
32 272-6930 Conical compression spring $23.01 2 usually ships 1-5 days
33 272-6931 Knob $37.05 1 usually ships 1-5 days
