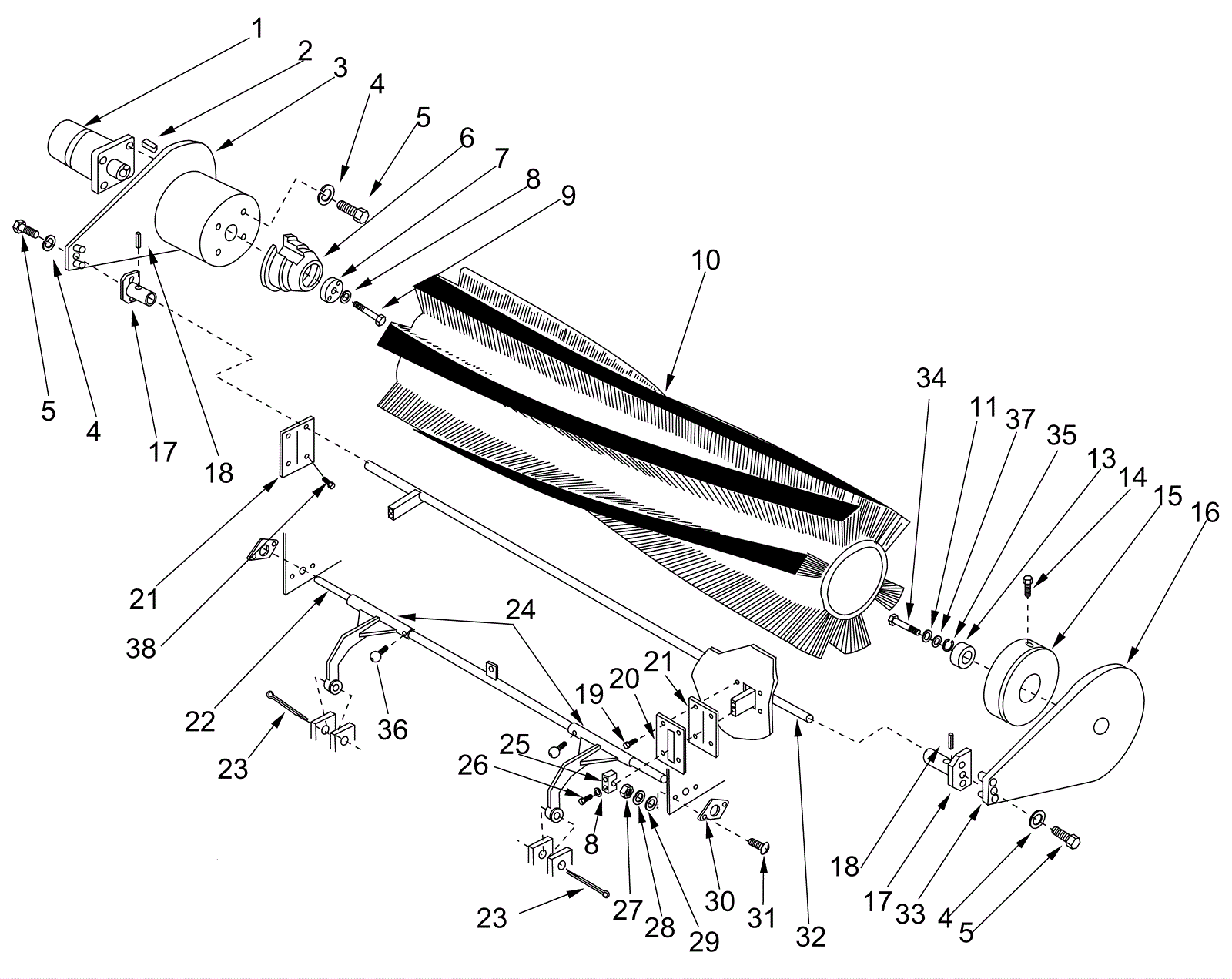

7765 Main Broom Assembly

#PartDescriptionPriceReqNotesAvailability
1 272-6889 Broom drive hydraulic motor $2,220.72 1 usually ships 1-5 days
2 272-6890 Woodruff key $12.31 1 usually ships 1-5 days
3 272-6915 Drive broom arm $1,394.02 1 usually ships 1-5 days
4 170-6752 Washer 3/8 lock split plated $12.31 6 usually ships 1-5 days
5 372-2116 Screw 3/8-16 x 3/4 hex head $12.31 6 usually ships 17-28 days
6 272-3893 Broom driver hub $551.66 1 usually ships 1-5 days
7 272-3894 Broom driver locking plate $41.54 1 usually ships 1-5 days
8 999-0060 Washer 1/4 split lock plain finish $0.99 7 ships same day
9 272-6891 Screw $12.31 3 usually ships 1-5 days
10 NOTE Please See Batteries, Brushes, Pad Holders and Charger Pages Call for price 1 usually ships 3-26 days
11 272-6892 Helical spring lock washer $12.31 1 usually ships 17-28 days
13 272-6893 Bearing $144.53 1 usually ships 1-5 days
14 272-6894 Screw 3/8-20 x 1/2 $12.31 2 usually ships 1-5 days
15 272-6895 Idler $436.79 1 usually ships 1-5 days
16 272-6896 Idler arm $949.84 1 usually ships 1-5 days
17 272-6897 Pivot collar $150.47 2 usually ships 1-5 days
18 272-6898 Spring pin $12.31 2 usually ships 1-5 days
19 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 8 ships same day
20 272-6899 Gasket cover plate $23.01 2 usually ships 1-5 days
21 272-6900 Broom arm gasket $26.04 3 usually ships 1-5 days
22 272-6901 Shaft $383.41 1 usually ships 1-5 days
23 272-6902 Lift pin w/ cotter pin $12.31 2 usually ships 1-5 days
24a 272-6904 Left hand arm assembly $827.59 1 usually ships 1-5 days
24b 272-6904 Left hand arm assembly $827.59 1 usually ships 1-5 days
25 272-6905 End clamp $32.69 2 usually ships 1-5 days
26 272-6906 Screw 1/4-20 x 1 1/4 $13.17 4 usually ships 1-5 days
27 999-0430 Nut 5/16-18 hex jam plain finish $0.99 4 ships same day
28 170-6686 Washer 5/16 lock $10.85 4 usually ships 17-28 days
29 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
30 272-6908 Flange bearing $126.74 2 usually ships 1-5 days
31 170-8401 Bolt 5/16 - 18 x 1 carriage $13.17 4 usually ships 1-5 days
32 272-6909 Broom chamber shaft $522.42 1 usually ships 1-5 days
33 272-6910 Dowel pin $12.31 4 usually ships 1-5 days
34 272-6911 Screw 3/4-10 x 1 1/4 $12.31 1 usually ships 17-28 days
35 272-6912 Retaining ring $5.39 1 ships same day
36 272-6913 Lubrication fitting $12.31 2 usually ships 1-5 days
37 272-6914 Flat washer $12.31 1 ships same day
38 272-8689 Flat washer $12.31 4 usually ships 1-5 days
