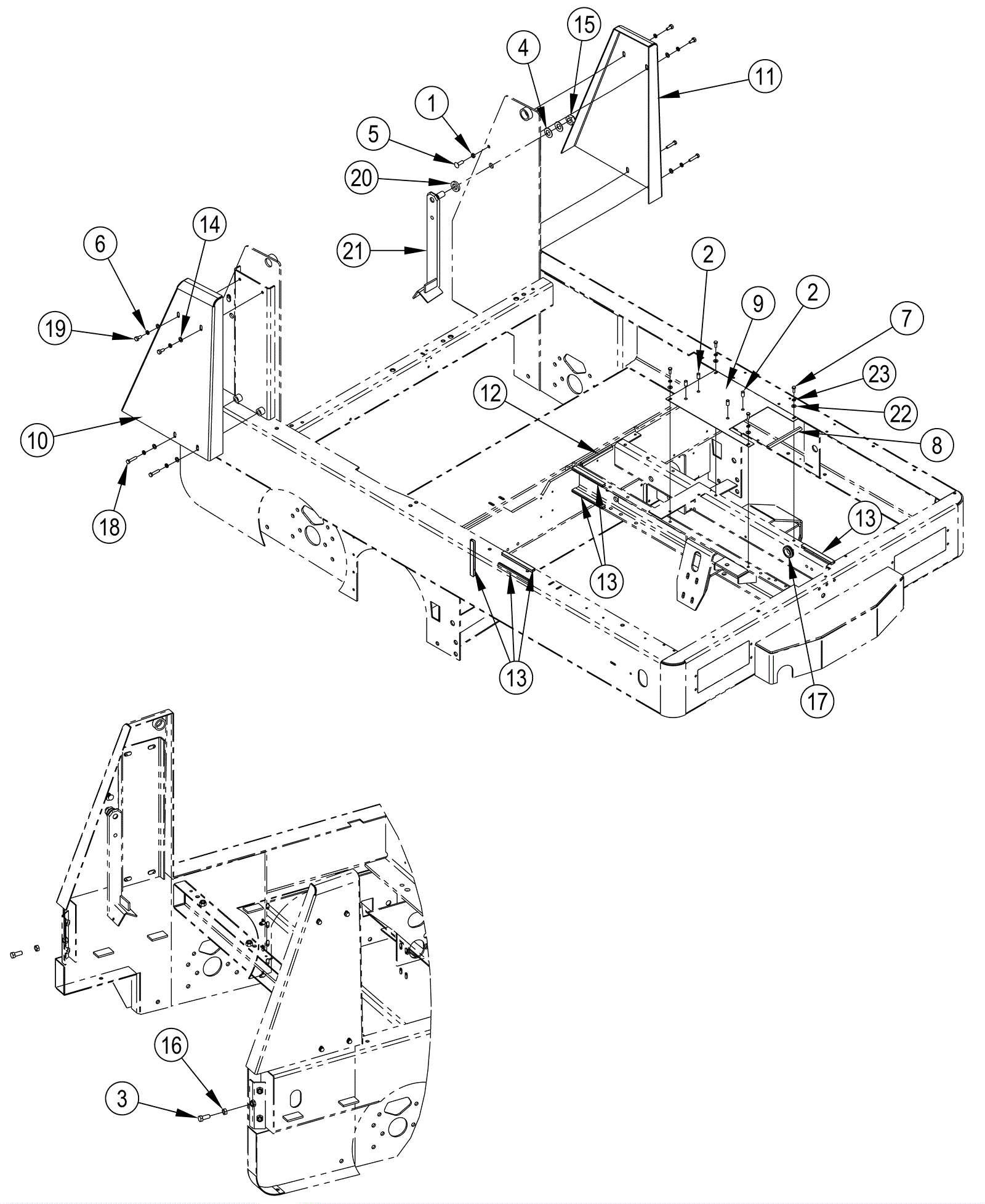

7765 Main Frame Assembly - Variable Dump

#PartDescriptionPriceReqNotesAvailability
1 999-0247 Nut 3/8-16 hex jam plain finish $0.99 1 ships same day
2 272-6874 Nutsert $12.31 4 usually ships 1-5 days
3 999-0200 Bolt 1/2-13 x 1 1/4 hex head $3.45 2 ships same day
4 272-6876 Spring washer $12.31 2 usually ships 1-5 days
5 272-6877 Carriage bolt $13.17 1 usually ships 1-5 days
6 170-6686 Washer 5/16 lock $10.85 8 usually ships 17-28 days
7 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 4 ships same day
8 272-6878 Bumper $13.76 1 usually ships 1-5 days
9 272-6879 Gear assembly cover $41.54 1 usually ships 1-5 days
10 272-6880 Left hand support wing cover $268.38 1 usually ships 1-5 days
11 272-6881 Right hand support wing cover $268.38 1 usually ships 1-5 days
12 272-6882 Brush drive support edging $12.31 1 usually ships 1-5 days
13 272-6883 Brush drive support edging $18.38 6 usually ships 1-5 days
14 999-0024 Washer 5/16 flat stainless steel $1.34 8 ships same day
15 272-6884 Nut $12.31 1 usually ships 1-5 days
16 999-0050 Nut 1/2-13 hex jam plain finish $0.99 2 ships same day
17 272-6885 Rubber grommet $13.76 1 usually ships 1-5 days
18 999-0162 Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated $0.99 4 ships same day
19 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 4 ships same day
20 272-6886 Spacer $44.58 1 usually ships 1-5 days
21 272-6887 Right hand safety arm support $429.26 1 usually ships 1-5 days
22 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
23 999-0060 Washer 1/4 split lock plain finish $0.99 4 ships same day
