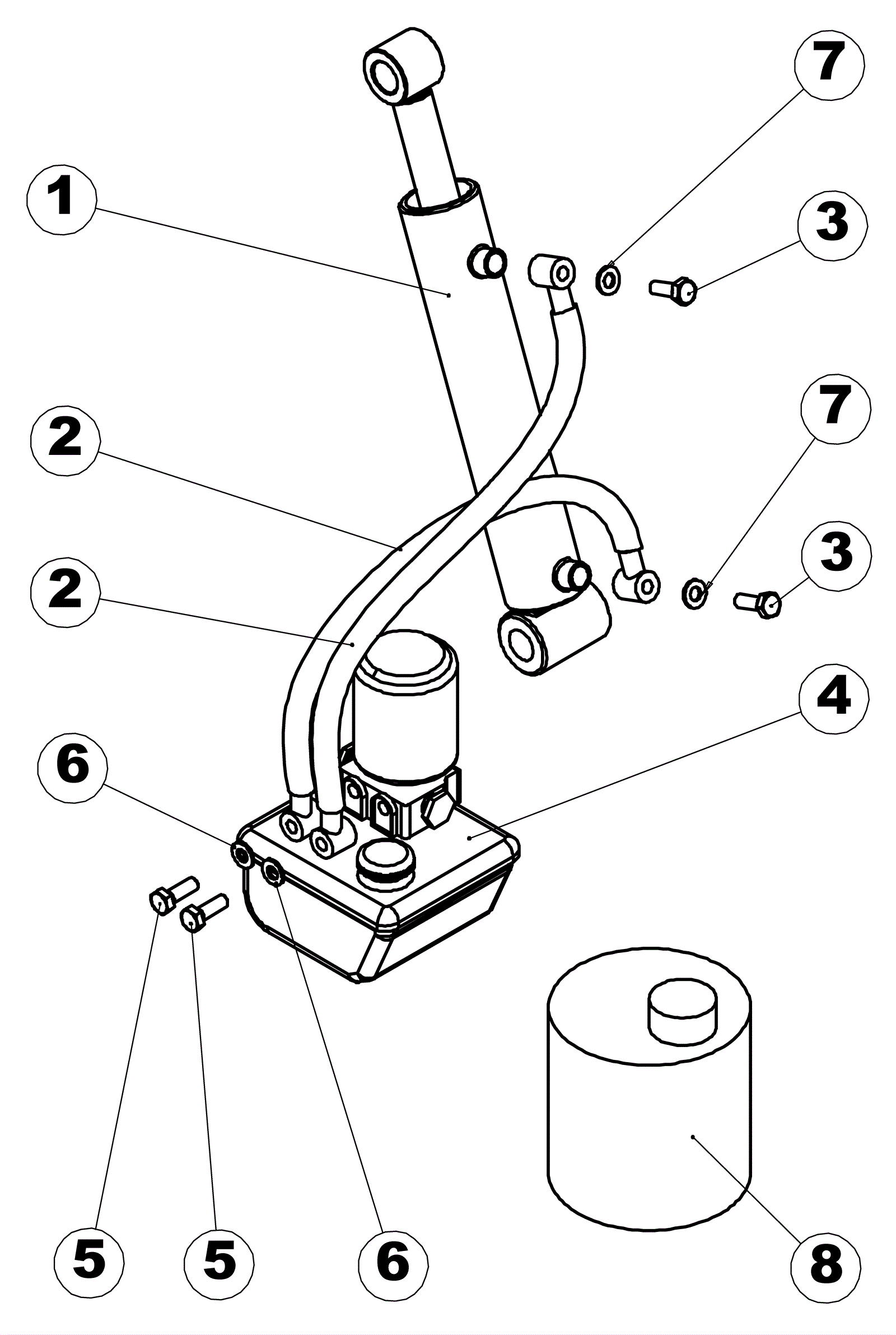

Hydraulic Assembly

#PartDescription ReqNotesAvailability
1 N/A Not available 1 (Cylinder)
2 N/A Not available 2 (Tube)
3 N/A Not available 2 (Screw)
4 N/A Not available 1 (Hydraulic motor)
5 N/A Not available 2 (Screw)
6 272-6862 Gasket 4
7 272-4506 Gasket 4
8 N/A Not available 1 (Oil)
