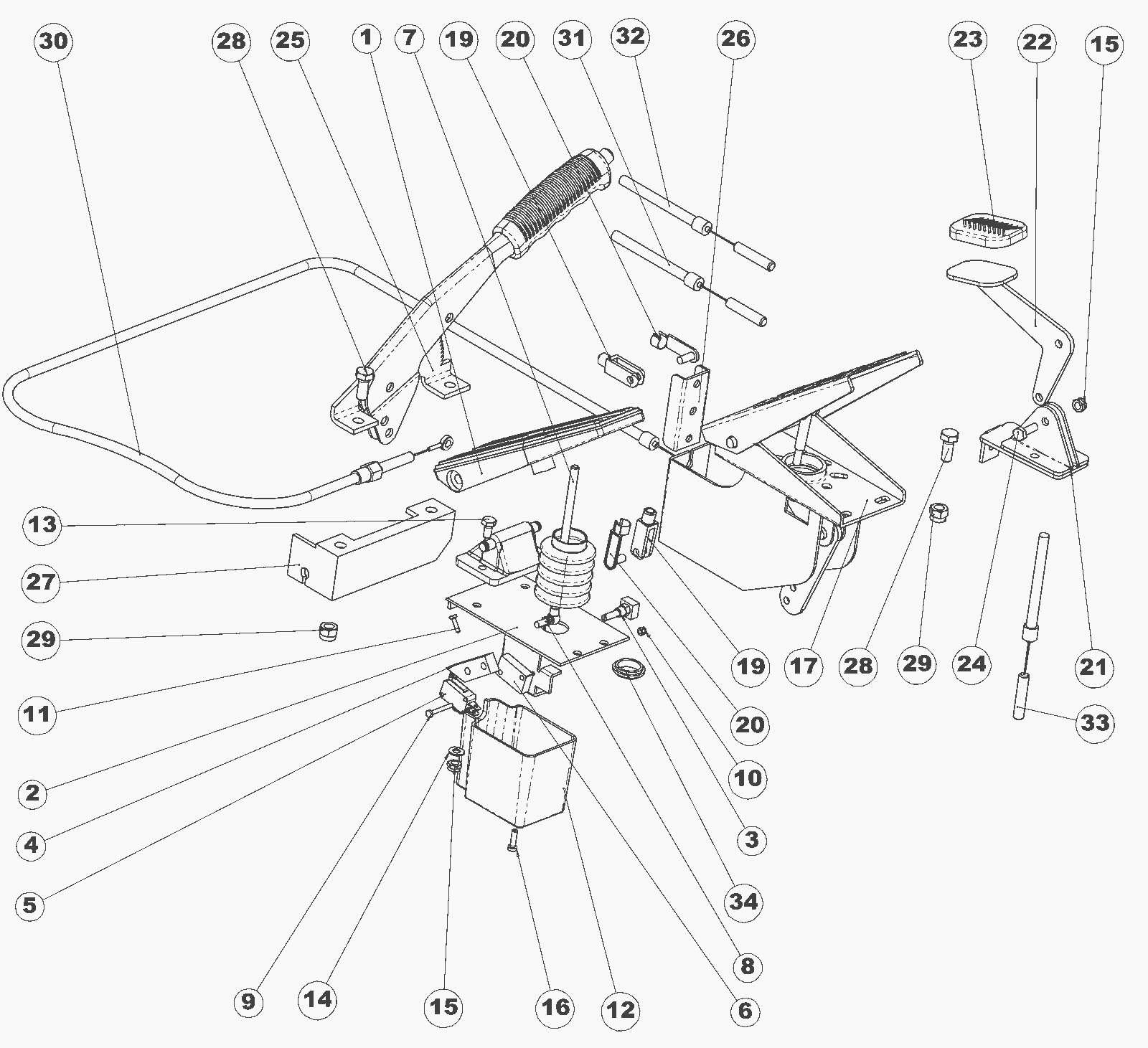

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
170-9149
|
Pedal (OBSOLETE) |
1 |
|
|
2 |
N/A
|
Not available |
1 |
(Bracket) |
|
3 |
N/A
|
Not available |
1 |
(Potentiometer) |
|
4 |
N/A
|
Not available |
1 |
(Connecting rod) |
|
5 |
272-0639
|
Microswitch |
1 |
|
|
6 |
N/A
|
Not available |
1 |
(Spacer) |
|
7 |
N/A
|
Not available |
1 |
(Tension rod) |
|
8 |
272-7164
|
Elbow joint |
1 |
|
|
9 |
272-0650
|
Screw 3 x 20 hex head (OBSOLETE) |
2 |
|
|
10 |
272-0655
|
Nut m3 hex head self lock (OBSOLETE) |
2 |
|
|
11 |
N/A
|
Not available |
1 |
(Screw 4 x 16 hex head) |
|
12 |
170-9155
|
Rubber pedal cover |
1 |
|
|
13 |
172-3665
|
Screw 6 x 12 hex head |
2 |
|
|
14 |
N/A
|
Not available |
2 |
(Washer) |
|
15 |
172-3667
|
Nut M6 self locking (OBSOLETE) |
3 |
|
|
16 |
N/A
|
Not available |
2 |
(Screw) |
|
17 |
N/A
|
Not available |
1 |
(Pedal) |
|
19 |
472-1423
|
CLEVIS M6X24 GALV. DIN71752 PK |
2 |
|
|
20 |
172-3779
|
Clip |
1 |
|
|
21 |
272-6849
|
Pedal support (OBSOLETE) |
1 |
|
|
22 |
272-6850
|
Pedal lever (OBSOLETE) |
1 |
|
|
23 |
181-0917
|
Pedal cover |
1 |
|
|
24 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
1 |
|
|
25 |
N/A
|
Not available |
1 |
(Brake level) |
|
26 |
N/A
|
Not available |
1 |
(Support) |
|
27 |
N/A
|
Not available |
5 |
(Plate) |
|
28 |
999-9092
|
Screw M8-1.25 x 20mm hex head stainless steel |
5 |
|
|
29 |
472-3360
|
NUT SELF L. M8 UNI7473 10 PCS |
1 |
|
|
30 |
N/A
|
Not available |
1 |
(Brake cable) |
|
31 |
N/A
|
Not available |
1 |
(Cable) |
|
32 |
N/A
|
Not available |
1 |
(Cable) |
|
33 |
N/A
|
Not available |
1 |
(Cable) |
|
34 |
170-9154
|
Washer (OBSOLETE) |
1 |
|
|
