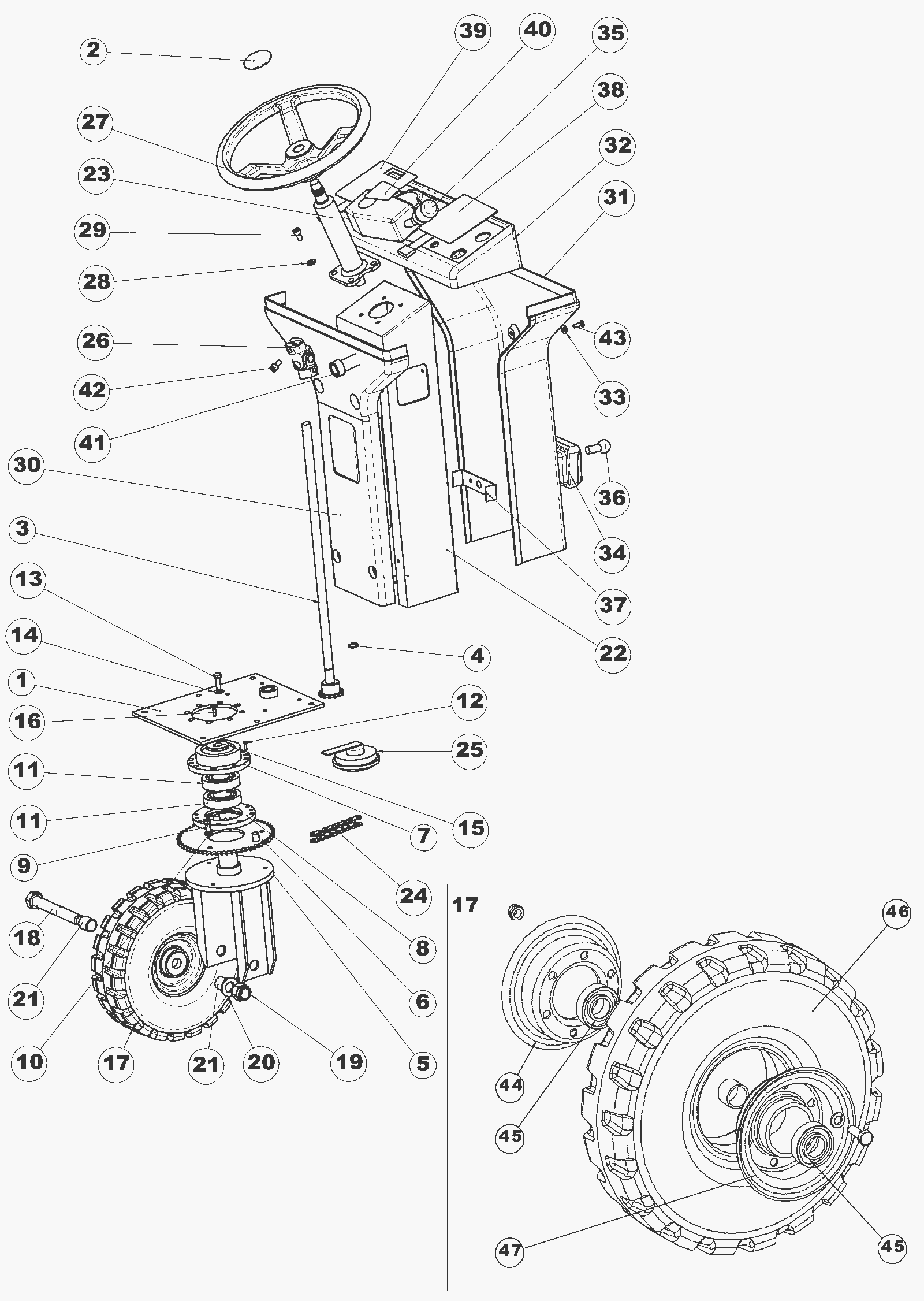

Steering Assembly

#PartDescription ReqNotesAvailability
1 272-6868 Plate (OBSOLETE) 1
2 272-8322 Cap 1
3 N/A Not available 1 (Steering shaft)
4 572-3661 RING D 17 UNI7435 10 PCS SET 1
5 272-6848 Wheel support 1
6 272-8333 Crown (OBSOLETE) 1
7 272-8335 Flange 1
8 272-8334 Flange 1
9 999-9092 Screw M8-1.25 x 20mm hex head stainless steel 3
10 272-9520 Washer M8 split lock (OBSOLETE) 3
11 272-8395 Ball bearing 2
12 N/A Not available 1 (Screw)
13 172-3707 Screw 8x25 hex head (OBSOLETE) 8
14 272-9520 Washer M8 split lock (OBSOLETE) 8
15 272-8332 Washer (OBSOLETE) 1
16 172-4835 Screw M6 x 20mm 1
17 N/A Not available 1 (Wheel) (Includes items 44-47)
18 N/A Not available 1 (Screw)
19 N/A Not available 1 (Nut)
20 272-6845 Washer 1
21 272-6846 Spacer (OBSOLETE) 2
22 N/A Not available 1 (Front panel)
23 272-8307 Steering column 1
24 270-0852 Chain (69 links) 1
25 472-1366 HORN 24V PKD 1
26 272-8313 Joint 1
27 272-8320 Steering wheel 1
28 999-1267 Washer M8 flat zinc 4
29 N/A Not available 4 (Screw)
30 N/A Not available 1 (Rear cover)
31 N/A Not available 1 (Front cover)
32 N/A Not available 1 (Control panel)
33 272-6838 Washer (OBSOLETE) 4
34 272-6847 Headlight (OBSOLETE) 1
35 N/A Not available 1 (Lever)
36 272-8387 24V lamp (OBSOLETE) 1
37 N/A Not available 1 (Bracket)
38 N/A Not available 1 (Decal)
39 N/A Not available 1 (Decal)
40 N/A Not available 1 (Adhesive)
41 N/A Not available 1 (Push button)
42 N/A Not available 1 (Screw)
43 172-4835 Screw M6 x 20mm 8
44 N/A Not available 1 (Semicircle)
45 N/A Not available 2 (Ball bearing)
46 N/A Not available 1 (Tire)
47 N/A Not available 1 (Semicircle w/ hub)
