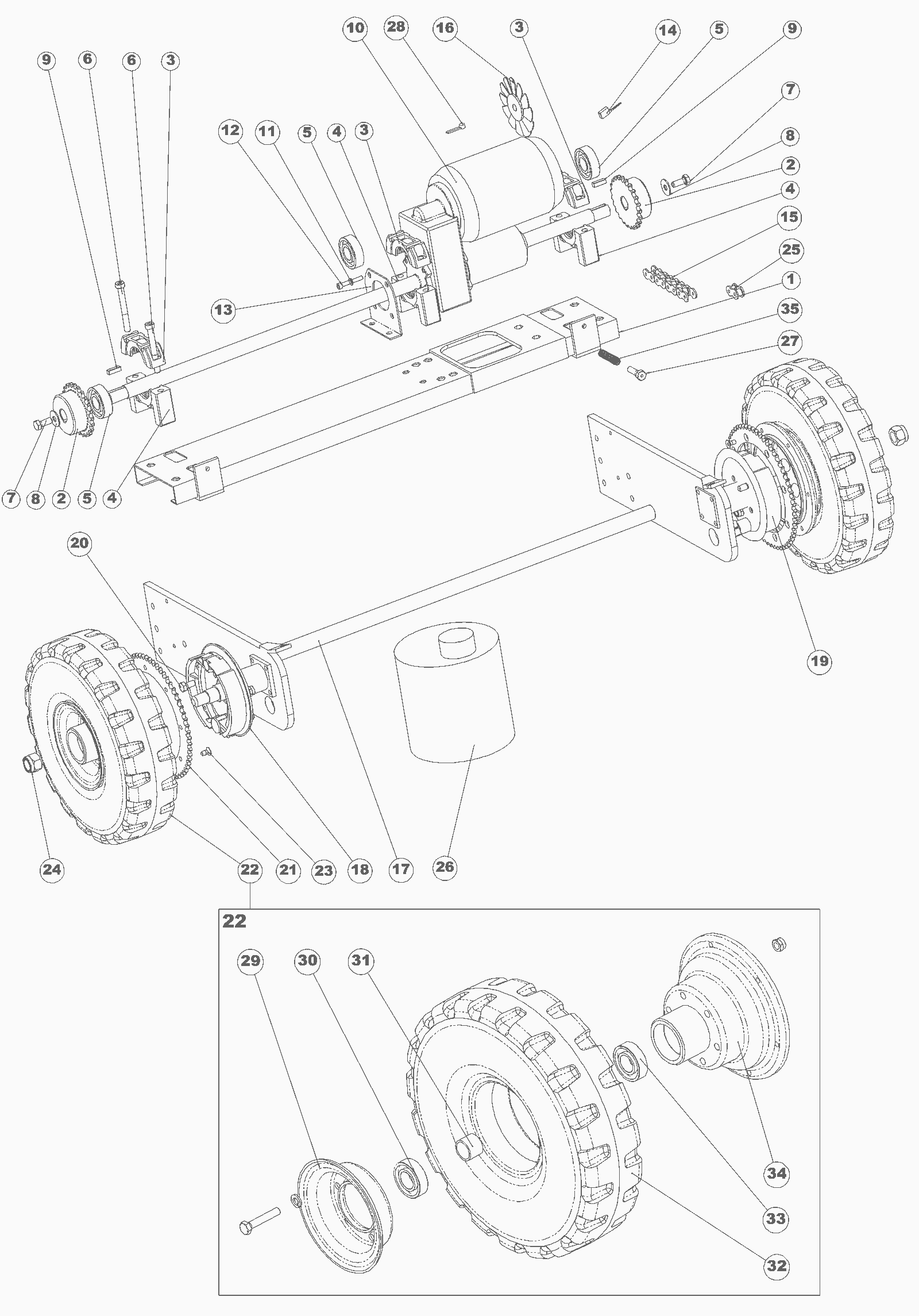

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
1 |
(Support) |
|
2 |
N/A
|
Not available |
1 |
(Sprocket wheel) |
|
3 |
172-3725
|
Support |
3 |
|
|
4 |
172-3724
|
Support |
3 |
|
|
5 |
172-3684
|
Ball bearing |
3 |
|
|
6 |
N/A
|
Not available |
6 |
(Screw) |
|
7 |
172-3687
|
Screw 8x16 |
2 |
|
|
8 |
999-1267
|
Washer M8 flat zinc |
2 |
|
|
9 |
272-0751
|
Feather key |
2 |
|
|
10 |
N/A
|
Not available |
1 |
(Motodifferential) |
|
11 |
999-0803
|
Washer M5 flat plain finish |
4 |
|
|
12 |
N/A
|
Not available |
4 |
(Screw) |
|
13 |
N/A
|
Not available |
1 |
(Bracket) |
|
14 |
272-0845
|
Carbon brush kit |
2 |
|
|
15 |
N/A
|
Not available |
2 |
(Chain) |
|
16 |
N/A
|
Not available |
1 |
(Fan) |
|
17 |
N/A
|
Not available |
1 |
(Rear bridge) |
|
18 |
272-6843
|
Brake block |
1 |
|
|
19 |
272-6843
|
Brake block |
1 |
|
|
20 |
172-3687
|
Screw 8x16 |
8 |
|
|
21 |
N/A
|
Not available |
2 |
(Crown) |
|
22 |
N/A
|
Not available |
2 |
(Wheel) (Includes items 29-34) |
|
23 |
N/A
|
Not available |
12 |
(Screw) |
|
24 |
272-6844
|
Nut |
2 |
|
|
25 |
272-6631
|
Master link (OBSOLETE) |
2 |
|
|
26 |
N/A
|
Not available |
11 |
(Oil) |
|
27 |
N/A
|
Not available |
2 |
(Screw) |
|
28 |
N/A
|
Not available |
1 |
(Thermocouple) |
|
29 |
N/A
|
Not available |
2 |
(Semicircle) |
|
30 |
N/A
|
Not available |
2 |
(Ball bearing) |
|
31 |
N/A
|
Not available |
2 |
(Spacer) |
|
32 |
N/A
|
Not available |
2 |
(Tire) |
|
33 |
N/A
|
Not available |
2 |
(Ball bearing) |
|
34 |
N/A
|
Not available |
2 |
(Semicircle with hub) |
|
35 |
N/A
|
Not available |
2 |
(Spring) |
|
