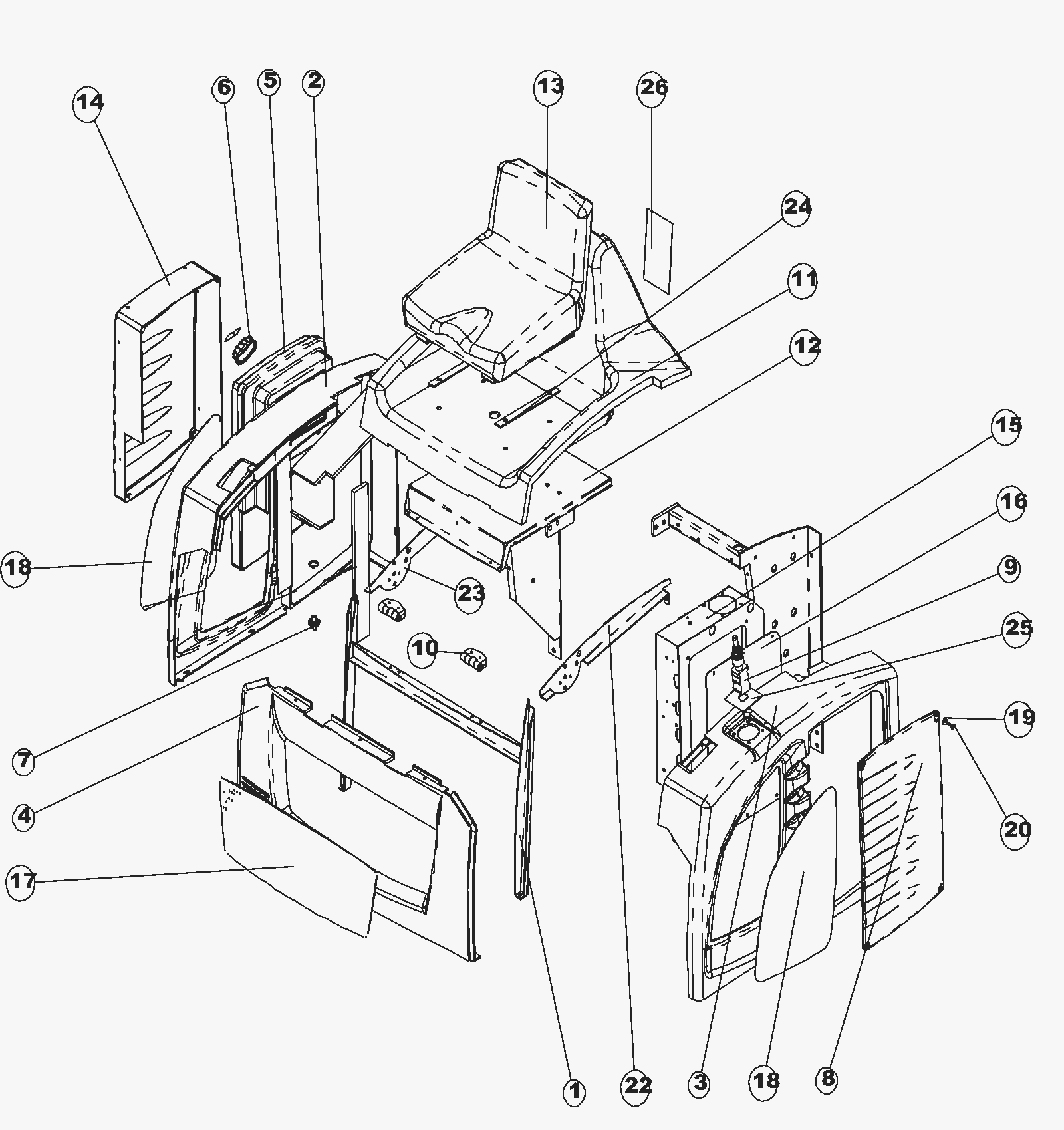

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
1 |
(Frame support) |
|
2 |
N/A
|
Not available |
1 |
(Right hand cover) |
|
3 |
N/A
|
Not available |
1 |
(Left hand cover) |
|
4 |
N/A
|
Not available |
1 |
(Front cover |
|
5 |
N/A
|
Not available |
1 |
(Fuel tank) |
|
6 |
N/A
|
Not available |
1 |
(Fuel tank cap) |
|
7 |
N/A
|
Not available |
1 |
(Pipe holder) |
|
8 |
N/A
|
Not available |
1 |
(Cover) |
|
9 |
N/A
|
Not available |
1 |
(Joystick lever) |
|
10 |
N/A
|
Not available |
2 |
(Hinge) |
|
11 |
N/A
|
Not available |
1 |
(Seat holder bonnet) |
|
12 |
N/A
|
Not available |
1 |
(Seat reinforcement bonnet) |
|
13 |
472-1365
|
SEAT PKD |
1 |
|
|
14 |
N/A
|
Not available |
1 |
(Cover) |
|
15 |
N/A
|
Not available |
1 |
(Container box) |
|
16 |
N/A
|
Not available |
1 |
(Cover) |
|
17 |
N/A
|
Not available |
1 |
(Front guard) |
|
18 |
N/A
|
Not available |
2 |
(Side guard grate) |
|
19 |
272-6838
|
Washer (OBSOLETE) |
4 |
|
|
20 |
172-4835
|
Screw M6 x 20mm |
4 |
|
|
21 |
N/A
|
Not available |
1 |
(O-ring) |
|
22 |
N/A
|
Not available |
1 |
(Under cover left hand frame support) |
|
23 |
N/A
|
Not available |
2 |
(Under cover right hand frame support) |
|
24 |
N/A
|
Not available |
1 |
(Plate) |
|
25 |
N/A
|
Not available |
1 |
(Decal) |
|
26 |
N/A
|
Not available |
1 |
(Battery decal) |
|
27 |
N/A
|
Not available |
|
(Side panel) |
|
28 |
N/A
|
Not available |
|
(Panel) |
|
30 |
N/A
|
Not available |
|
(Decal) |
|
