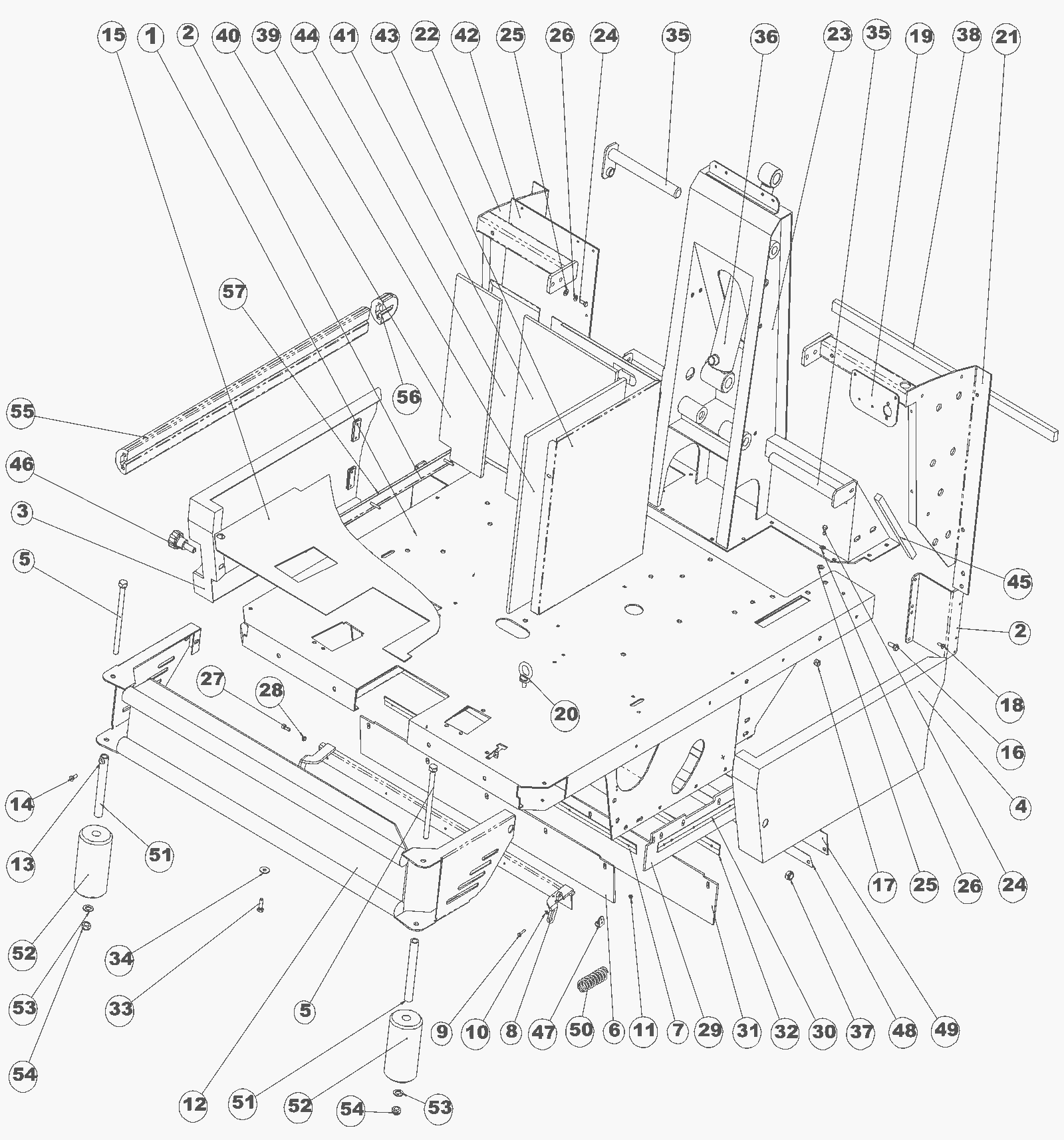

Frame Assembly

#PartDescription ReqNotesAvailability
1 N/A Not available 1 (Frame)
2 N/A Not available 2 (Support)
3 N/A Not available 1 (Right hand hatch)
4 N/A Not available 1 (Left hand hatch)
5 N/A Not available 2 (Screw)
6 272-6835 Front flap 1
7 272-6836 Plate (OBSOLETE) 1
8 272-6837 Flap raising device (OBSOLETE) 1
9 N/A Not available 5 (Screw)
10 N/A Not available 5 (Washer)
11 N/A Not available 5 (Nut)
12 N/A Not available 1 (Bumper)
13 272-5891 Washer (OBSOLETE) 4
14 272-5891 Washer (OBSOLETE) 4 (Screw)
15 N/A Not available 1 (Mat board)
16 172-3687 Screw 8x16 8
17 272-8269 Nut M8 (OBSOLETE) 8
18 170-9106 Screw M5 x 14mm 8
19 N/A Not available 1 (Bracket)
20 N/A Not available 2 (Eyebolt)
21 N/A Not available 1 (Left support)
22 N/A Not available 1 (Right support)
23 N/A Not available 1 (Screw)
24 172-4823 Screw M6 x 16mm hex head 2
25 N/A Not available 2 (Plain washer)
26 272-9520 Washer M8 split lock (OBSOLETE) 2
27 272-8256 Screw M6 X 16 mm cylindrical head (OBSOLETE) 2
28 172-3667 Nut M6 self locking (OBSOLETE) 2
29 272-8262 Side skirt 1
30 272-8263 Side skirt plate 1
31 272-6839 Rear flap 1
32 272-6840 Plate (OBSOLETE) 1
33 172-3707 Screw 8x25 hex head (OBSOLETE) 6
34 999-1267 Washer M8 flat zinc 6
35 N/A Not available 2 (Pit)
36 N/A Not available 1 (Cylinder)
38 N/A Not available 1 (Gasket)
39 N/A Not available (Panel)
40 N/A Not available (Panel)
41 N/A Not available (Panel)
42 N/A Not available 2 (Dust cover)
43 N/A Not available (Bulkhead)
44 N/A Not available (Bulkhead extension)
45 N/A Not available 2 (Gasket)
46 N/A Not available 1 (Knob)
47 272-8255 Bracket (OBSOLETE) 1
48 N/A Not available 1 (Plate)
49 N/A Not available 1 (Flap)
50 272-8258 Spring 1
51 N/A Not available 2 (Screw)
52 N/A Not available 2 (Bumper roller)
53 272-9498 Washer flat 2
55 N/A Not available 2 (Side protection)
56 N/A Not available 2 (Bumper end)
57 N/A Not available 2 (Protection plate)
