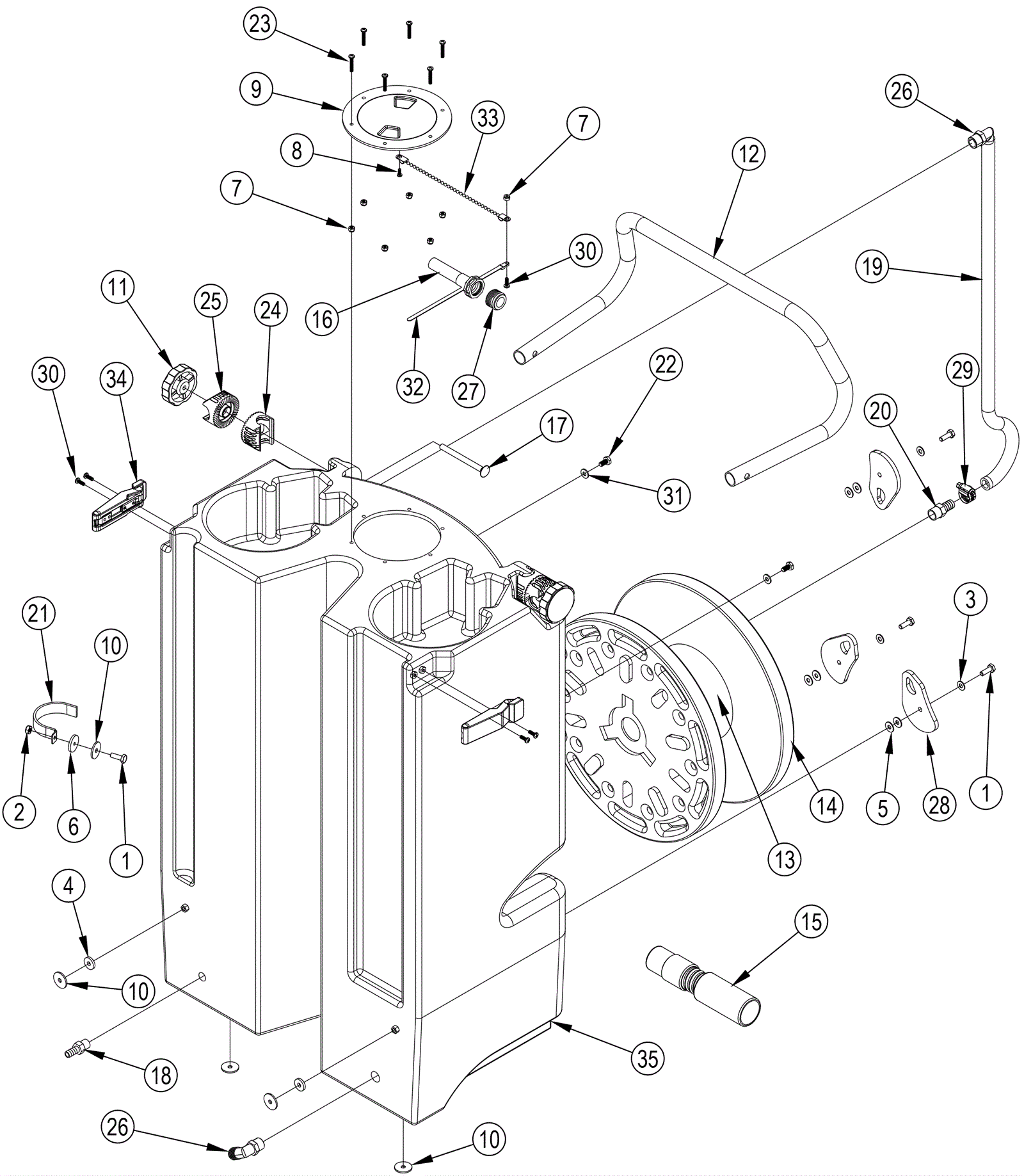

REELCLEANER Solution Tank

#PartDescription ReqNotesAvailability
1 209-0148 Bolt 1/4 inch x 3/4 inch 4 (included in KIT4 and KIT9) usually ships 1-5 days
2 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 1 (included in KIT4) usually ships 11-14 days
3 999-0006 Washer 3/16 flat zinc plated 3 (included in KIT4 and KIT9) usually ships 11-14 days
4 209-0258 Washer 2 (included in KIT4) usually ships 13-16 days
5 209-0620 Washer 1/4 nylon (black) 6 (included in KIT9) usually ships 1-5 days
6 209-2357 Rubber flat washer 1 usually ships 13-16 days
7 999-0357 Nut 8-32 nylon insert lock stainless steel 7 (included in KIT4) usually ships 11-14 days
8 170-9309 Screw #6 x 3/8 truss head phillips stainless steel 1 (included in KIT7) usually ships 13-16 days
9 170-9305 Lid and ring 1 (included in KIT7) usually ships 13-16 days
10 209-0608 Washer 1/4 x 1 flat zinc plated 5 (included in KIT4) usually ships 1-5 days
11 272-5070 Knob (OBSOLETE) 2 (included in KIT5) usually ships 13-16 days
12 172-2495 Pivoting handle 1 usually ships 1-5 days
13 209-2006 REEL CORE 6 X 4.5 1 (included in KIT3) usually ships 13-16 days
14 372-3722 Reel flange 1 (included in KIT3) usually ships 13-16 days
15 172-2499 Vacuum hose 1 usually ships 13-16 days
16 272-2529 5 inch fill hose 1 (included in KIT8) usually ships 1-5 days
17 209-2011 BOLT CARRIAGE 5/16-18 X 3 1/2 2 (included in KIT5) usually ships 13-16 days
18 209-2015 HOSE BARB 3/8 BARB X 1/4 MPT 1 (included in KIT2) usually ships 13-16 days
19 209-2016 TUBING CLEAR 1/2 ID X 3/4 O 25 inches (included in KIT6) usually ships 13-16 days
20 372-3726 Hose barb 1 (included in KIT6) usually ships 13-16 days
21 372-3727 Clamp (OBSOLETE) 1 (included in KIT4) usually ships 13-16 days
22 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel 2 usually ships 11-14 days
23 999-1356 Screw 8-32 x 7/8 pan head phillips stainlesss steel 6 (included in KIT4) usually ships 1-5 days
24 272-5068 Handle adjustment ratchet 2 (included in KIT5) usually ships 13-16 days
25 272-5069 Handle adjustment ratchet 2 (included in KIT5) usually ships 13-16 days
26 472-7363 HOSE BARB/ELBOW 90 DEG NYL 1/2 2 (included in KIT2 and KIT6) usually ships 13-16 days
27 209-0673 Faucet adapter 1 (included in KIT8) usually ships 1-5 days
28 372-3728 Reel keeper (OBSOETE) 3 (included in KIT4 and KIT9) usually ships 13-16 days
29 209-0604 Hose clamp 1 (included in KIT1 and KIT6) usually ships 13-16 days
30 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel 5 usually ships 11-14 days
31 999-0016 Washer 1/4 flat plain finish 2 usually ships 11-14 days
32 209-0674 Wire tie 1 (included in KIT4) usually ships 13-16 days
33 172-2474 8 inch chain 1 (included in KIT7) usually ships 13-16 days
34 172-2487 Black rubber latch with strike 2 usually ships 13-16 days
35 209-2219 HOLDING TANK APC LIGHT GREY 1 (includes 1, 3, 5, 18, 20, 26, 28) usually ships 13-16 days
KIT1 172-2458 Clamp kit 1 (includes 29) usually ships 1-5 days
KIT2 172-2460 Quick disconnect kit 1 (includes 18, 26) usually ships 13-16 days
KIT3 172-2498 Blower reel 1 (includes 13-14) usually ships 1-5 days
KIT4 209-2209 SOLUTION TANK HARDWARE KIT 1 (includes 1-4, 7, 10, 21, 23, 28, 32) usually ships 13-16 days
KIT5 172-2900 Handle knob kit 1 (includes 11, 17, 24-25) usually ships 1-5 days
KIT6 172-2901 Solution hose kit 1 (includes 19-20, 26, 29) usually ships 13-16 days
KIT7 172-2902 Solution lid kit 1 (includes 8-9, 33) usually ships 13-16 days
KIT8 172-2905 Hose fill kit 1 (includes 16, 27) usually ships 13-16 days
KIT9 272-8149 Blower hose reel tab kit 1 (includes 1, 3, 5, 28) usually ships 1-5 days
