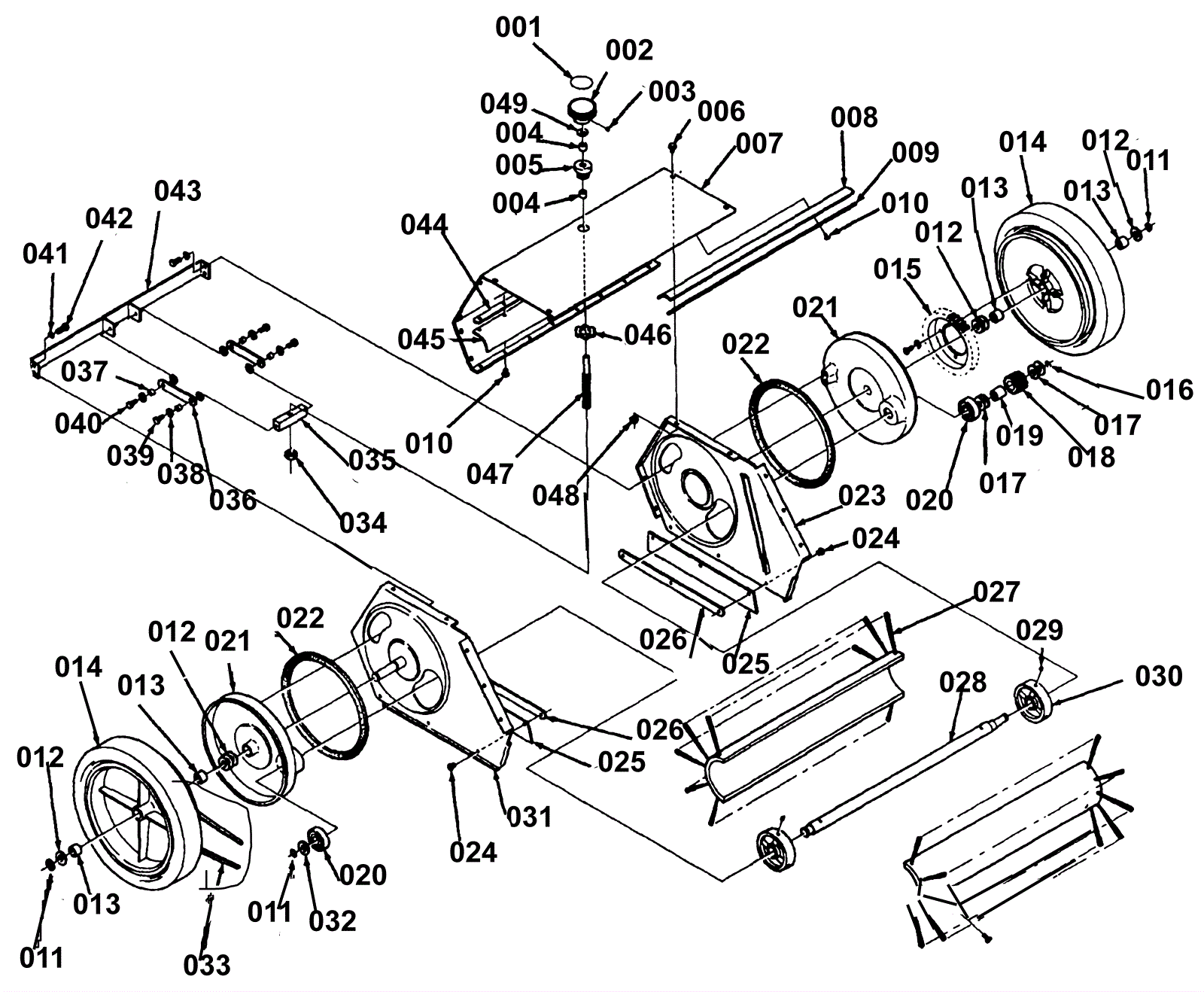

Model 56475301 Broom Housing

#PartDescription ReqNotesAvailability
002 172-0078 Knob 1
003 999-0448 Screw 10-24 x 1/4 cup point socket set alloy plain finish 1
004 172-7014 Bushing 2
005a 172-7015 Pivot bushing (OBSOLETE) 1
005b 172-7016 Pivot assembly (OBSOLETE) 1 (Includes items 4 and 5)
006 999-0231 Screw 10-24 x 1/2 round head slotted zinc plated 12
007 N/A Not available 1 (Not Available) Cover
008 172-7018 Skirt (OBSOLETE) 1
009 172-7019 Plate (OBSOLETE) 1
010 999-0091 Screw 8-32 x 3/8 round head slotted zinc plated 16
011 172-6171 Retaining ring (OBSOLETE) 3
012 172-7020 Thrust washer (OBSOLETE) 10
013 172-0023 Sleeve bearing 4
014 172-7021 Wheel assembly (OBSOLETE) 2 (Includes item 13)
015 172-7022 Gear (OBSOLETE) 1
016 172-7023 Retaining ring (OBSOLETE) 1
017 172-7024 Thrust washer (OBSOLETE) 4
018 172-7025 Gear (OBSOLETE) 1
019 172-7026 Clutch 1
020 172-0249 Bottom bearing 2
021a 172-6170 Shroud (OBSOLETE) 2 Model 56475301
021b 172-0500 Support hub (OBSOLETE) 2 Model 56475007
022 172-4593 Gasket 1/8 x 38 (OBSOLETE) 9
023 172-7027 120V vacuum motor 1
024 999-0317 Screw 8-32 x 1/4 pan head slotted zinc plated 6
025 172-7028 Side skirt (OBSOLETE) 2
026 172-7029 Plate (OBSOLETE) 2
027a 172-7030 Main broom nylon 1 (Standard)
028 172-7032 Shaft (OBSOLETE) 1
029 999-0347 Screw 1/4-20 x 1/2 cup point socket set plain finish 2
030 172-7033 Broom mounting plate 2
032 172-7035 Washer 1
033 172-7036 Belt (OBSOLETE) 1
034 999-0202 Nut 1/2-13 hex plain finish 1
035 172-0250 Pivot block (OBSOLETE) 1
036 172-7037 Plate (OBSOLETE) 2
037 172-0016 Bushing 4
038 999-0123 Washer 1/4 SAE flat zinc plated 8
039 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 2
040 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 2
041 999-0060 Washer 1/4 split lock plain finish 4
042 172-7038 Screw 1/4-14 x 3/4 hex head type b (OBSOLETE) 4
043 172-7039 Bracket weldment (OBSOLETE) 1
044 172-7040 Nut 8-32 plate (OBSOLETE) 1
045 172-7041 Skirt (OBSOLETE) 1
046 172-4536 Nut 1/2-14 conduit lock 1
047 172-0251 Rod (OBSOLETE) 1
048 999-0062 Nut 10-24 hex 12
049 999-0120 Washer 3/8 SAE flat 1
