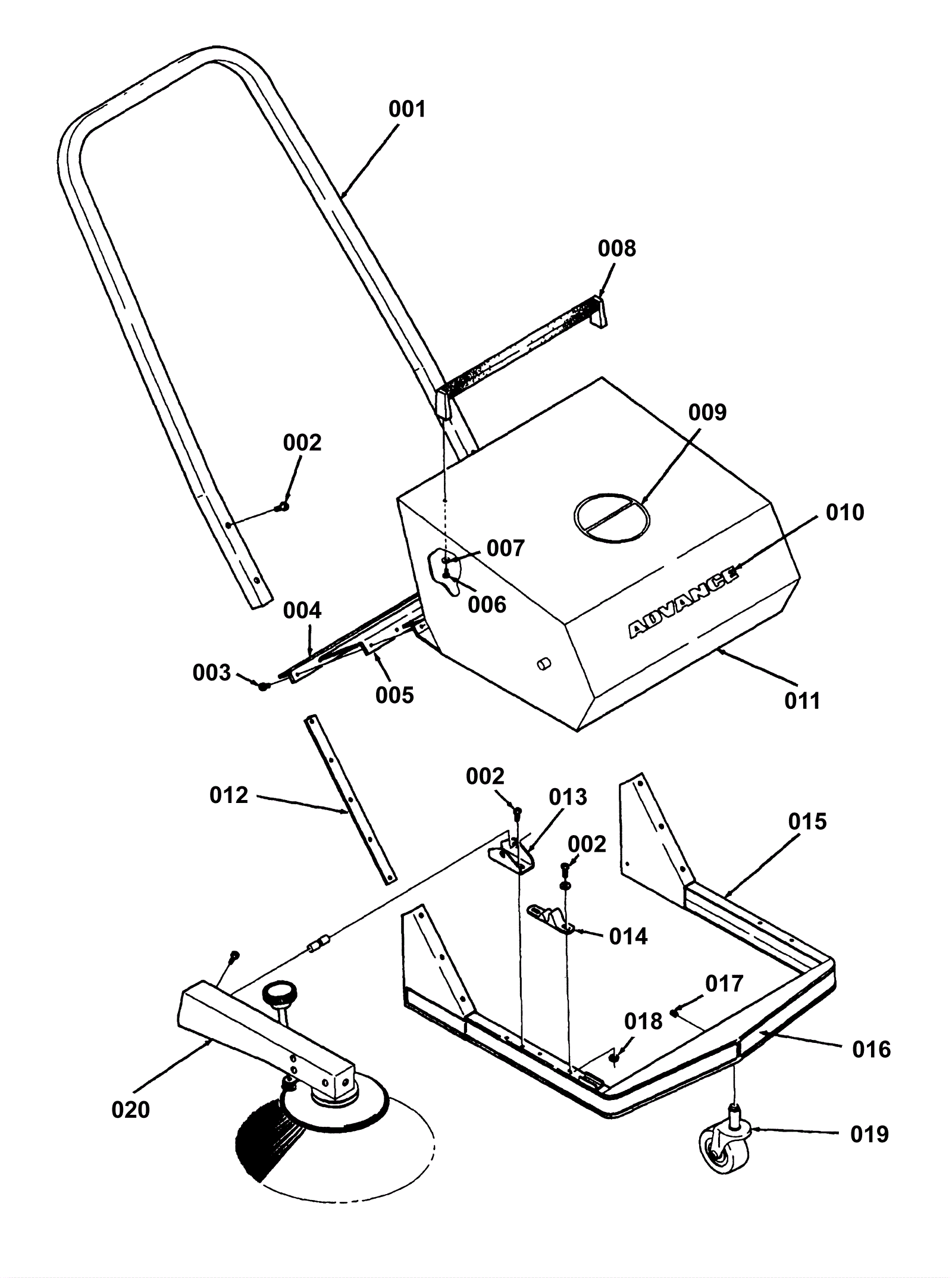

Model 56475301 Hopper and Frame

#PartDescription ReqNotesAvailability
001a N/A Not available 1 (Not Available) Hopper Assembly (Includes items 3 - 11)
001b 172-7001 Handle (OBSOLETE) 1
002 999-0323 Screw 1/4-20 x 1/2 pan head slotted zinc plated 16
003 999-0091 Screw 8-32 x 3/8 round head slotted zinc plated 8
004 172-7003 Angle (OBSOLETE) 1
005 172-7004 Skirt (OBSOLETE) 1
006 999-0231 Screw 10-24 x 1/2 round head slotted zinc plated 2
007 999-0006 Washer 3/16 flat zinc plated 2
008 172-7005 Handle (OBSOLETE) 1
009 N/A Not available 1 (not available) Logo decal
010 999-0284 Screw 10-24 x 3/16 cup point socket set alloy plain finish 1
011 N/A Not available 1 (Not Available) Hopper
012 172-7008 Angle (OBSOLETE) 2
013 172-7009 Bracket (OBSOLETE) 1
014 172-7010 Guide (OBSOLETE) 2
015 N/A Not available 1 (Not Available) Frame
016 N/A Not available 2 (not available) Stripe decal
017 999-0347 Screw 1/4-20 x 1/2 cup point socket set plain finish 1
018 999-0190 Nut 1/4-20 hex plain finish 4
019 172-0252 Caster assembly (OBSOLETE) 1
