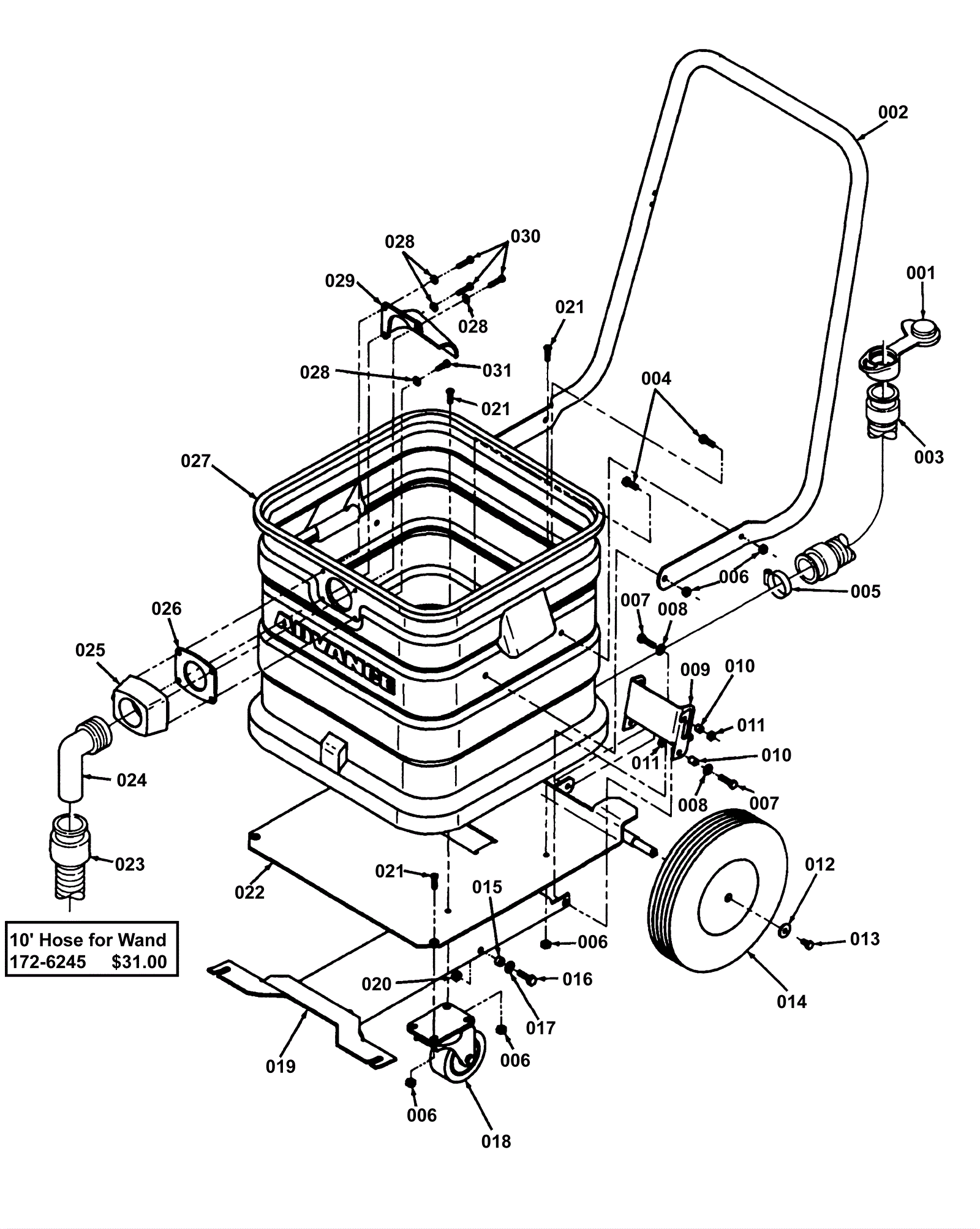

SPRITE Tank Assembly

#PartDescriptionPriceReqNotesAvailability
001 272-1139 Drain plug $15.07 1 usually ships 16-41 days
002 172-6220 Handle (OBSOLETE) $337.26 1 usually ships 1-5 days
003 272-1375 Drain hose 1 1/2 inch $37.61 1 ships same day
004 999-0456 Screw 1/4-20 x 3/4 pan head phillips stainless steel $1.76 4 ships same day
005 997-2005 Hose clamp $2.15 1 ships same day
006 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 10 ships same day
007 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $0.99 4 (Air Scoop) ships same day
008 999-0016 Washer 1/4 flat plain finish $0.99 4 (Air Scoop) ships same day
009 172-4146 Pedal (OBSOLETE) $50.77 1 (Air Scoop) usually ships 1-5 days
010 172-0400 Bushing $15.07 4 (Air Scoop) usually ships 1-5 days
011 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 (Air Scoop) ships same day
012 172-0553 Washer 17/64 x 1/16 flat $10.56 2 usually ships 16-41 days
013 999-0323 Screw 1/4-20 x 1/2 pan head slotted zinc plated $0.99 2 ships same day
014 172-4016 10 inch wheel $80.86 2 ships same day
015 172-4008 Bushing $32.55 2 (Air Scoop) ships same day
016 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated $0.99 2 (Air Scoop) ships same day
017 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
018 172-6222 Caster 4.0 x 1.0 (OBSOLETE) $30.89 2 usually ships 1-5 days
019 172-4145 Squeegee lift $704.55 1 (Air Scoop) usually ships 1-5 days
020 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
021 999-0457 Screw 1/4-20 x 3/4 flat head phillips stainless steel $0.99 6 ships same day
022 172-6223 Cart weldment (OBSOLETE) $150.88 1 usually ships 1-5 days
023 172-6182 Squeegee hose 17 inch with cuffs $53.88 1 (Air Scoop) usually ships 16-41 days
024a 172-6183 Hose adapter (OBSOLETE) $34.66 1 (Air Scoop) usually ships 16-41 days
024b 172-6224 Coupler (OBSOELTE) $24.20 1 (Sprite) usually ships 16-41 days
025 172-6225 Connector assembly $78.60 1 usually ships 1-5 days
026 172-6226 Gasket (OBSOLETE) $9.13 1 usually ships 1-5 days
027a 172-6227 Tank 8 gallon (OBSOLETE) $122.01 1 usually ships 1-5 days
027b 172-6228 Tank 12 gallon $506.00 1 usually ships 1-5 days
027c 172-6235 Air scoop kit (OBSOLETE) $1,248.84 1 usually ships 1-5 days
027e 172-6216 Tank assembly air scoop 12 (OBSOLETE) $963.47 1 usually ships 1-5 days
027g 172-6218 Tank assembly sprite 12 (OBSOLETE) $640.33 1 usually ships 1-5 days
028 999-0998 Washer #10 flat stainless steel $0.99 4 ships same day
029 172-0387 Deflector (OBSOLETE) $21.78 1 usually ships 1-5 days
030 999-0110 Screw 10-16 x 1/2 pan head phillips self-drilling $0.99 3 ships same day
031 999-0898 Screw 10-16 x 3/4 pan head phillips stainless steel type B $0.99 1 ships same day
N/S 172-0020 Hook (OBSOLETE) $18.48 1 usually ships 1-5 days
N/S 172-8324 Filter assembly $129.89 1 ships same day
N/S 172-8324 Filter assembly $129.89 1 incl ring, gasket, filter bag and carton ships same day
