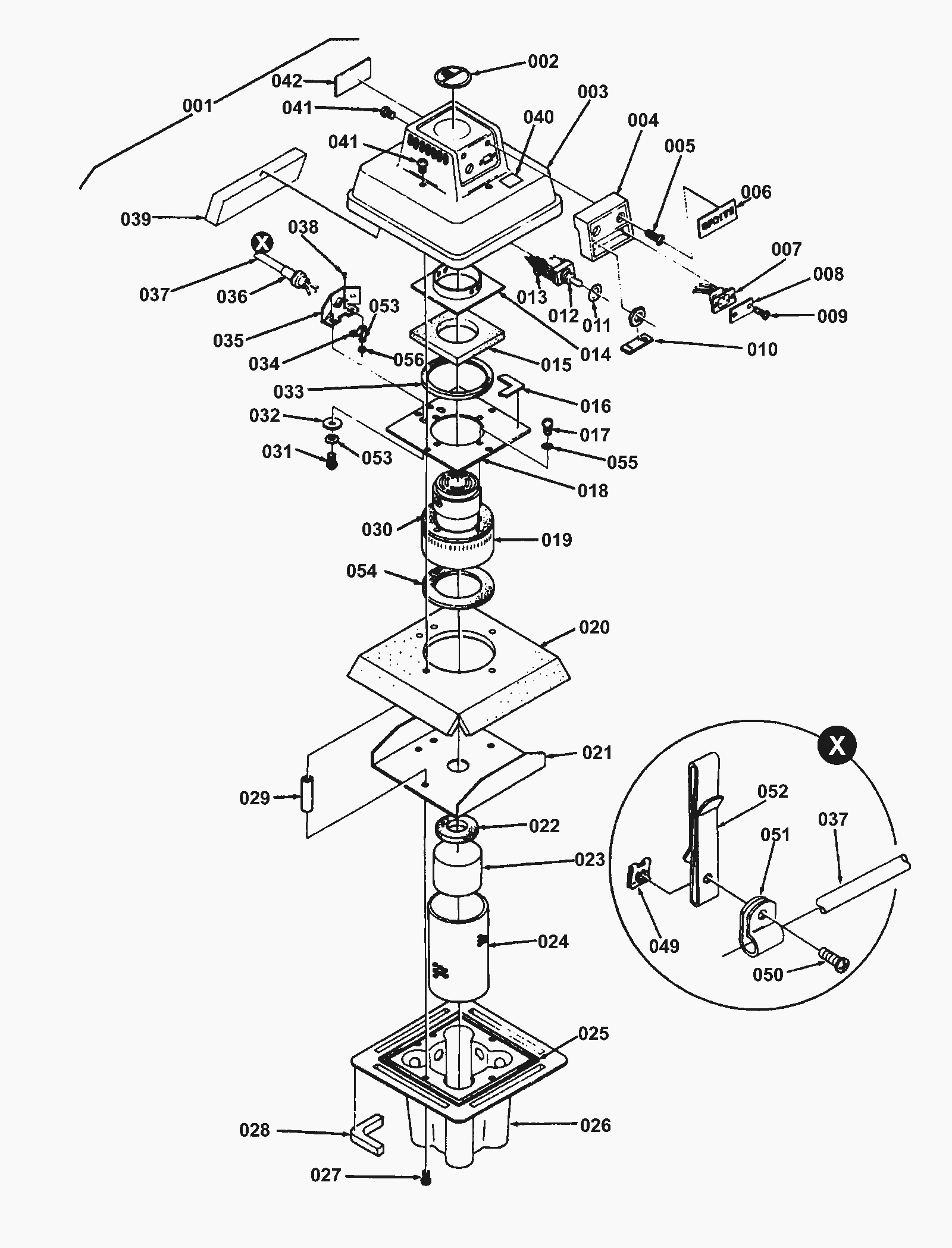

SPRITE AIR SCOOP Power Head Assembly

#PartDescriptionPriceReqNotesAvailability
001 N/A Not available Call for price 1 (not available) Power Head usually ships 3-26 days
002 N/A Not available Call for price 1 (Advance decal) usually ships 3-26 days
003 172-6187 Shroud (OBSOLETE) $381.92 1 usually ships 1-5 days
004 172-6188 Console $50.05 1 usually ships 1-5 days
005a N/A Not available Call for price 2 (Screw 10-24 x 1 3/8 flat head) usually ships 3-26 days
005b 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
006 N/A Not available Call for price 1 (Sprite decal) usually ships 3-26 days
007 N/A Not available Call for price 1 Receptacle kit (Optional Accessory) usually ships 3-26 days
008 172-6191 Cover (OBSOLETE) $12.65 1 usually ships 1-5 days
009a 172-6192 Screw pan nylon black (OBSOLETE) $6.29 2 usually ships 1-5 days
009b 999-0357 Nut 8-32 nylon insert lock stainless steel $0.99 6 ships same day
010 172-6193 On/Off Decal (OBSOLETE) $8.47 1 usually ships 1-5 days
011 999-0450 Washer 7/16 internal star lock zinc plated $0.99 1 ships same day
012 172-1734 Toggle switch dpst (OBSOLETE) $46.09 1 usually ships 16-41 days
013 172-6196 Cable tie $12.31 5 usually ships 1-5 days
014 172-6197 Ring plate (OBSOLETE) $92.06 1 usually ships 1-5 days
015 172-6198 Foam $11.75 1 usually ships 1-5 days
016 172-0032 Gasket 1/16 x 1/2 x 120 (OBSOLETE) $11.99 1 usually ships 16-41 days
017 999-0451 Screw 10-16 x 5/8 pan head phillips self-drilling $0.99 4 ships same day
018 172-6199 Plate (OBSOLETE) $65.45 1 usually ships 1-5 days
019a 991-1208 120V 2 stage vacuum motor peripheral $146.52 1 usually ships 5-16 days
019b 172-6012 Carbon brush (pkg of 2) $16.95 1 ships same day
019c 172-6202 Ball bearing $20.90 2 usually ships 1-5 days
019d 172-6203 Rotating fan (OBSOLETE) $41.36 2 usually ships 1-5 days
020 172-6173 Foam sound reducer $48.40 1 usually ships 1-5 days
021 172-6172 Plate $68.20 1 usually ships 1-5 days
022 172-0508 Gasket $12.31 1 usually ships 1-5 days
023 172-0509 Float assembly $42.35 1 usually ships 16-41 days
024 172-0510 Perforated shield (OBSOLETE) $85.14 1 usually ships 16-41 days
025 172-0511 Gasket (OBSOLETE) $13.76 5 usually ships 16-41 days
026 172-0512 Float housing (OBSOLETE) $257.80 1 usually ships 1-5 days
027 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel $1.54 5 ships same day
028 172-6174 Gasket $73.26 1 usually ships 16-41 days
029 172-6175 Spacer rod $19.65 5 usually ships 16-41 days
030 172-0351 Vacuum motor gasket $12.31 1 usually ships 16-41 days
031 999-0452 Screw 8-32 x 3/8 pan head phillips zinc plated $0.99 2 ships same day
032 999-0588 Washer 7/8 flat stainless steel $11.44 2 ships same day
033 N/A Not available Call for price 1 Gasket usually ships 3-26 days
034 N/A Not available Call for price 1 (Clamp) usually ships 3-26 days
035 172-6205 Bracket weldment (OBSOLETE) $340.45 1 usually ships 1-5 days
036 172-4539 Strain relief (OBSOLETE) $18.15 1 usually ships 1-5 days
037 172-6208 Cord set (OBSOLETE) $122.21 1 usually ships 1-5 days
038 999-0453 Screw 8-32 x 1/2 pan head phillips thread forming zinc $0.99 2 ships same day
039 172-6178 Filter $11.75 1 usually ships 16-41 days
040 N/A Not available Call for price 1 (Power outlet decal) usually ships 3-26 days
041 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated $0.99 6 ships same day
042 172-6211 Warning Decal (OBSOLETE) $9.02 1 usually ships 1-5 days
049 N/A Not available Call for price 1 (Nut 6-32 spring) usually ships 3-26 days
050 999-0453 Screw 8-32 x 1/2 pan head phillips thread forming zinc $0.99 1 ships same day
051 172-4594 Cord clamp $8.80 1 usually ships 1-5 days
052 N/A Not available Call for price 1 (Belt clip) usually ships 3-26 days
053 999-0092 Washer #8 internal star lock zinc plated $0.99 5 ships same day
054 172-0508 Gasket $12.31 1 usually ships 1-5 days
055 999-0089 Washer #10 internal star lock zinc plated $0.99 4 ships same day
056 999-0357 Nut 8-32 nylon insert lock stainless steel $0.99 6 ships same day
