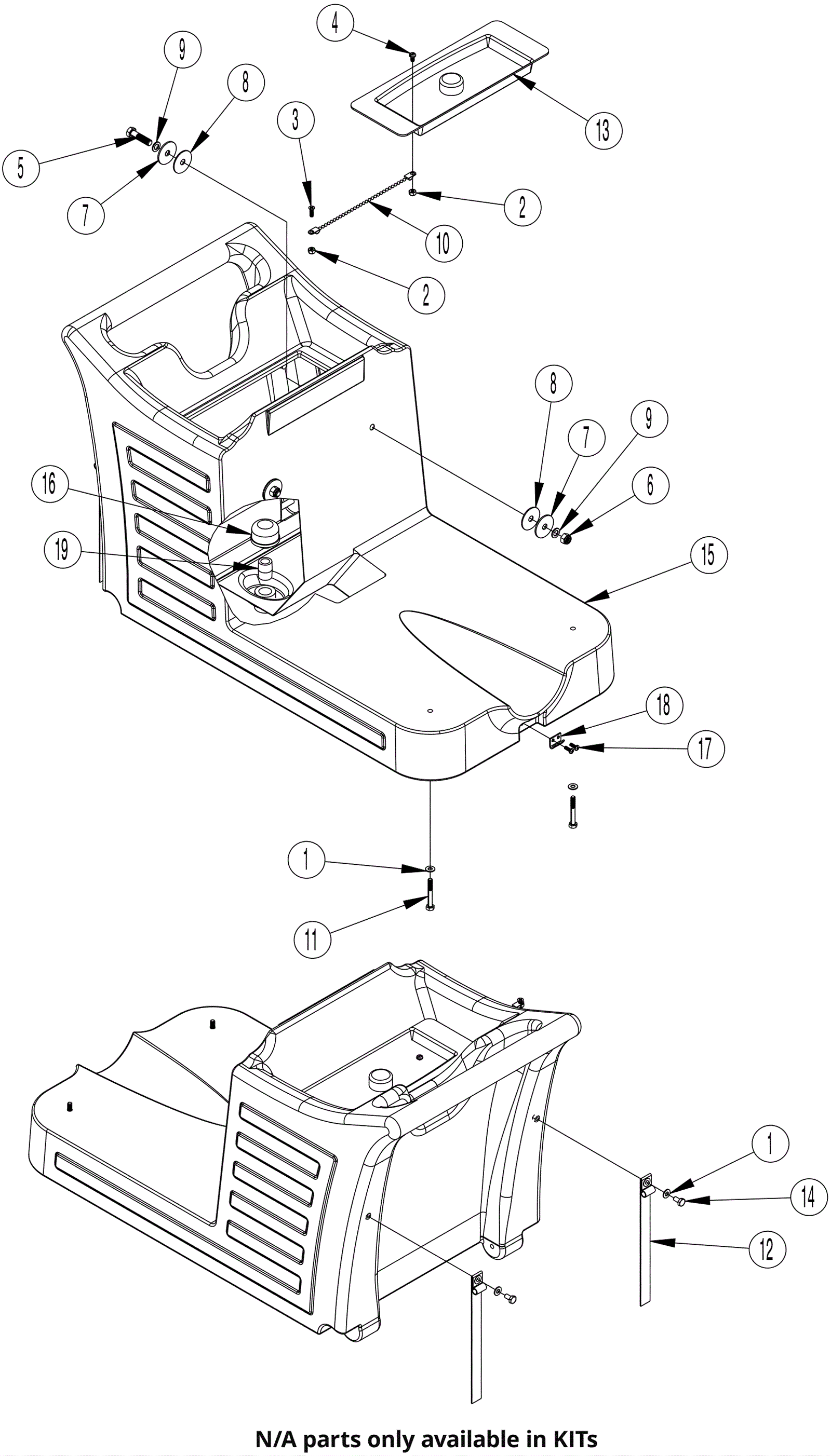

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0006
|
Washer 3/16 flat zinc plated |
4 |
(included in KIT1) |
|
2 |
999-1353
|
Nut 10-32 hex nylon lock insert stainless steel |
2 |
(included in KIT1) |
|
3 |
999-9148
|
Screw 10-32 x 5/8 flat head phillips stainless steel |
1 |
(included in KIT1) |
|
4 |
999-1270
|
Screw 10-32 x 3/8 button head socket stainless steel |
1 |
(included in KIT1) |
|
5 |
999-1489
|
Screw 3/8-16 x 1 1/2 hex head stainless steel |
2 |
(included in KIT1) |
|
6 |
999-1482
|
Nut 3/8-16 nylon lock stainless steel |
2 |
(included in KIT1) |
|
7 |
999-1446
|
Washer 3/8 x 1 1/2 fender stainless steel |
4 |
(included in KIT1) |
|
8 |
N/A
|
Not available |
4 |
(rubber washer) (only available in KIT1) |
|
9 |
999-1530
|
Washer 3/8 flat nylon |
4 |
(included in KIT1) |
|
10 |
172-2474
|
8 inch chain |
1 |
|
|
11 |
N/A
|
Not available |
2 |
(screw 1/4-20 socket head cap) (only available in KIT1) |
|
12 |
209-0363
|
Cord strap |
2 |
|
|
13 |
209-0352
|
Solution tank lid |
1 |
|
|
14 |
N/A
|
Not available |
2 |
(screw 1/4-20 x 1/2 hex head loc) (only available in KI1) |
|
15a |
272-6823
|
Solution tank |
1 |
|
|
15b |
272-6824
|
100PSI solution tank |
1 |
(100 PSI) |
|
16 |
209-0150
|
Filter |
1 |
|
|
17 |
N/A
|
Not available |
2 |
(bolt 8-32 x 1/2 pan head) (only available in KIT1) |
|
18 |
209-0140
|
Latch strike |
1 |
|
|
19 |
209-0603
|
Nipple 1/2 NPT |
1 |
|
|
KIT1 |
272-6821
|
Solution tank hardware kit |
1 |
(includes 1-9, 11, 14, 17) |
|
