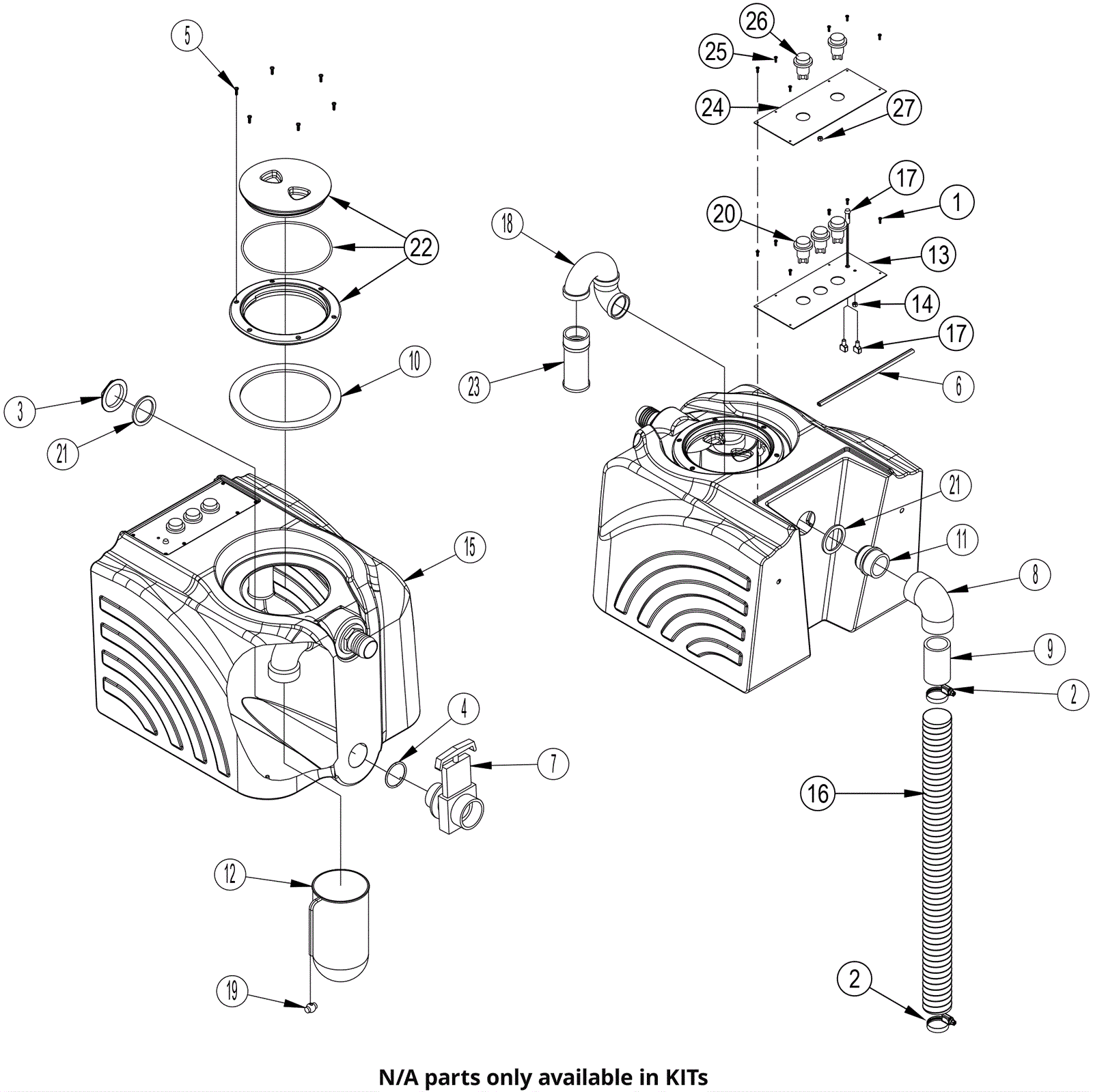

Recovery Tank Assembly

#PartDescription ReqNotesAvailability
1 272-6814 Screw M4 x .375mm 6 (100 and 400PSI dual cord heated models)
2 209-0657 Hose clamp 2
3 170-0647 Lock nut 1
4 270-8075 O-ring 1
5 999-1216 Screw 6 x 1/2 flat head sheet metal stainless steel 6
6 272-6815 Gasket 9.5 in
7 270-8097 Drain valve (black) 1
8 172-2473 PVC elbow 1-1/2 1
9 209-0668 PVC pipe 3 in
10 172-9339 Tank lid kit 1 (lid gasket) (only available in KIT1)
11 N/A Not available 1 (adapter) (only available in KIT2)
12 209-0720 Micron filter bag 1
13 209-0361 Switch plate (OBSOLETE) 1 (100 and 400PSI dual cord heated models)
14 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated 1 (100 and 400PSI dual cord heated models)
15 272-6817 Recovery tank 1
16 272-6818 Vacuum hose (OBSOLETE) 1
17 209-0671 Light (green) 1 (100 and 400PSI dual cord heated models)
18 N/A Not available 1 (adapter) (only avilable in KIT2)
19 272-6819 Cord lock 1
20 209-0286 On/off switch 3 prong 3 (100 and 400PSI dual cord heated models) (formerly 4 prong and has been replaced by 3 prong which will work in its place)
21 209-0341 Rubber washer 2
22a N/A Not available 1 (lid with clear ring) (only available in KIT1)
22b 209-0386 O-ring 1 (for 22a) (included in KIT1)
23 209-0329 Ball float 1
24 272-6820 Switch plate 1 (100PSI single cord no heat models)
25 272-6814 Screw M4 x .375mm 6 (100PSI single cord no heat models)
26 209-0286 On/off switch 3 prong 2 (100PSI single cord no heat models) (formerly 4 prong and has been replaced by 3 prong which will work in its place)
27 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated 1 (100PSI single cord no heat models)
KIT 1 172-9339 Tank lid kit 1 (includes 10, 22a-22b)
KIT 2 272-6813 Ball float strap assembly 1 includes 11, 18)
