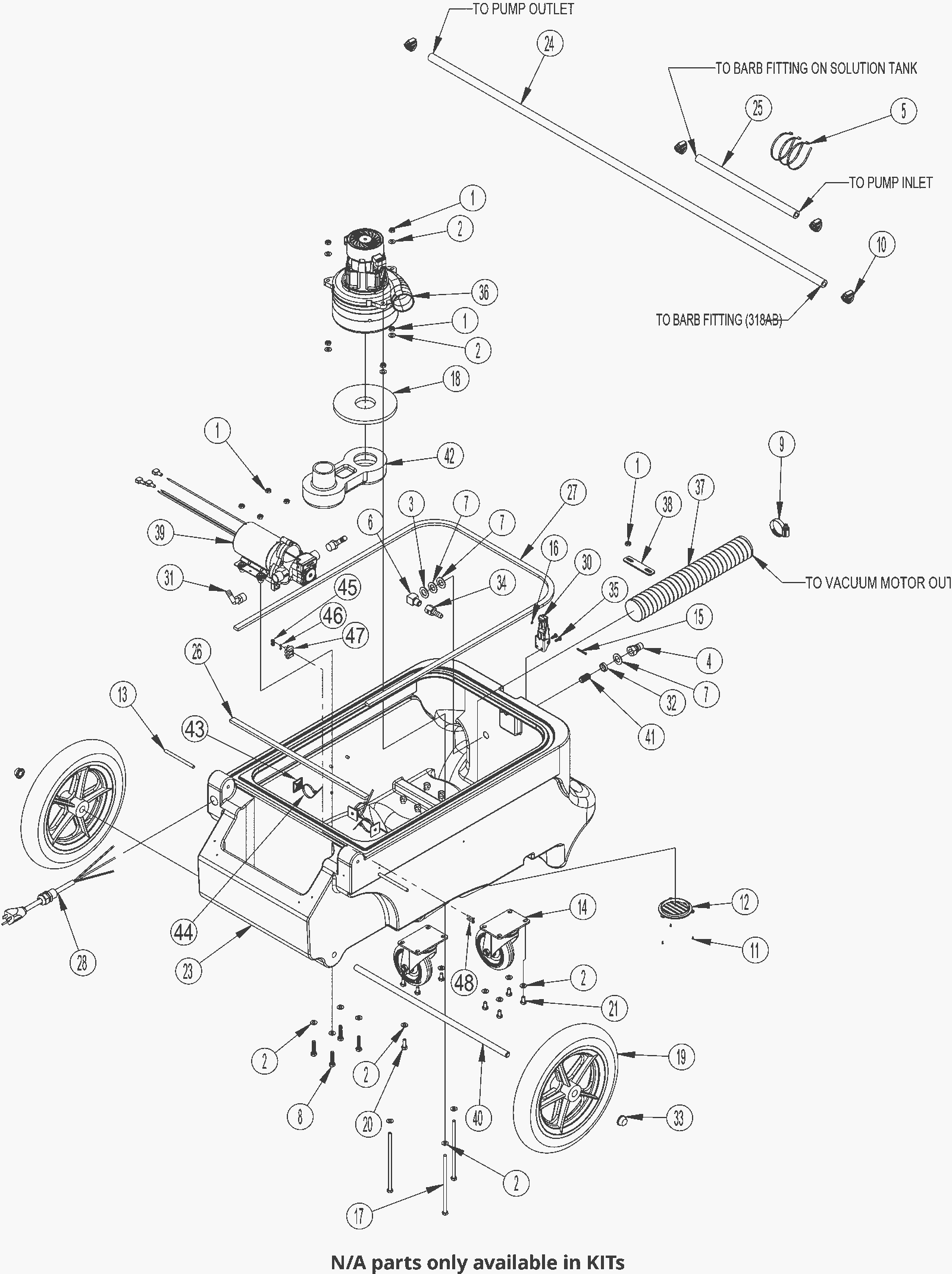

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
11 |
(included in KIT1) |
|
2 |
999-0006
|
Washer 3/16 flat zinc plated |
22 |
(included in KIT1) |
|
3 |
N/A
|
Not available |
1 |
(brass washer) (only available in KIT1) |
|
4 |
209-0336
|
Male quick disconnect |
1 |
|
|
5 |
209-0652
|
8 inch tie (black) |
3 |
|
|
6 |
209-0609
|
90 degree elbow |
1 |
|
|
7 |
N/A
|
Not available |
3 |
(washer) (onl available in KIT1) |
|
8 |
999-0298
|
Bolt 1/4-20 x 1 1/4 hex head stainless steel |
4 |
(included in KIT1) |
|
9 |
209-0657
|
Hose clamp |
1 |
|
|
10 |
209-0604
|
Hose clamp |
4 |
|
|
11 |
N/A
|
Not available |
3 |
(screw 2 x 1/4 flat head) (only available in KIT1) |
|
12 |
209-0659
|
Louver |
1 |
|
|
13 |
209-0648
|
Hinge pin |
2 |
|
|
14 |
209-0480
|
Caster wheel (gray) |
2 |
|
|
15 |
N/A
|
Not available |
1 |
(screw 2-56 x 1 pan head) (only available in KIT1) |
|
16 |
N/A
|
Not available |
1 |
(nut 2-56) (only avaialble in KIT1) |
|
17 |
N/A
|
Not available |
3 |
(bolt 1/4 x 60 full thread) (only available in KIT1) |
|
18 |
209-0005
|
Vacuum motor gasket |
1 |
|
|
19 |
209-0357
|
12 inch wheel |
2 |
|
|
20 |
999-1099
|
Bolt 1/4-20 x 3/4 hex head stainless steel |
1 |
(included in KIT1) |
|
21 |
N/A
|
Not available |
8 |
(screw 1/4-20 x 1/2 hex head loc) (only available in KIT1) |
|
23 |
N/A
|
Not available |
1 |
(100 PSI base) |
|
24 |
172-9136
|
Hose (red) |
1 |
|
|
25 |
209-6088
|
Hose (red) |
1 |
|
|
26 |
272-6804
|
Gasket |
1 |
|
|
27 |
209-6090
|
Gasket |
1 |
|
|
28 |
272-6805
|
Pigtail power cord |
1 |
|
|
30 |
172-0094
|
Latch |
1 |
|
|
31 |
N/A
|
Not available |
2 |
(hose barb) (only available in KIT2) |
|
32 |
209-0125
|
Fiber bushing |
1 |
|
|
33 |
170-5410
|
Axle cap (OBSOLETE) |
2 |
|
|
34 |
209-0039
|
Hose barb 1/4 |
1 |
|
|
35 |
999-0916
|
Screw 8-32 x 1/2 pan head phillips stainless steel |
2 |
(included in KIT1) |
|
36a |
209-0330
|
120V 3 stage vacuum motor |
1 |
(vac motor 209-0330 replaces vac motor 408G as of 12/29/14) |
|
36b |
209-0658
|
Carbon brush kit |
1 |
(for 408G) |
|
37 |
209-0344
|
Vacuum hose |
1 |
|
|
38 |
209-0345
|
Vacuum hose bar (OBSOLETE) |
1 |
|
|
39 |
N/A
|
Not available |
1 |
(100 psi pump) (only available in KIT2) |
|
40 |
209-0356
|
Axle rod |
1 |
|
|
41 |
209-0124
|
Nipple |
1 |
|
|
42 |
209-0132
|
Vacuum manifold |
1 |
|
|
43 |
270-8621
|
Mounting pad |
3 |
|
|
44 |
272-6806
|
4 inch tie |
3 |
|
|
45 |
270-8623
|
Nut nylon lock 6/32 Z.P |
2 |
(after SN 4000070928) |
|
46 |
272-6808
|
Washer |
2 |
(after SN 4000070928) |
|
47 |
172-4094
|
Terminal block |
1 |
(after SN 4000070928) |
|
48 |
272-6809
|
Screw |
2 |
(after SN 4000070928) |
|
N/S |
272-6802
|
Main harness |
1 |
|
|
N/S |
209-0354
|
25 foot power cord |
1 |
|
|
N/S |
172-2906
|
Priming hose with quick disconnect |
1 |
|
|
KIT 1 |
172-9138
|
Hardware base kit |
1 |
(includes 1-3, 7-8, 11, 15-17, 20-21, 35) |
|
KIT 2 |
172-9140
|
100PSI pump kit |
1 |
(includes 31, 39) |
|
