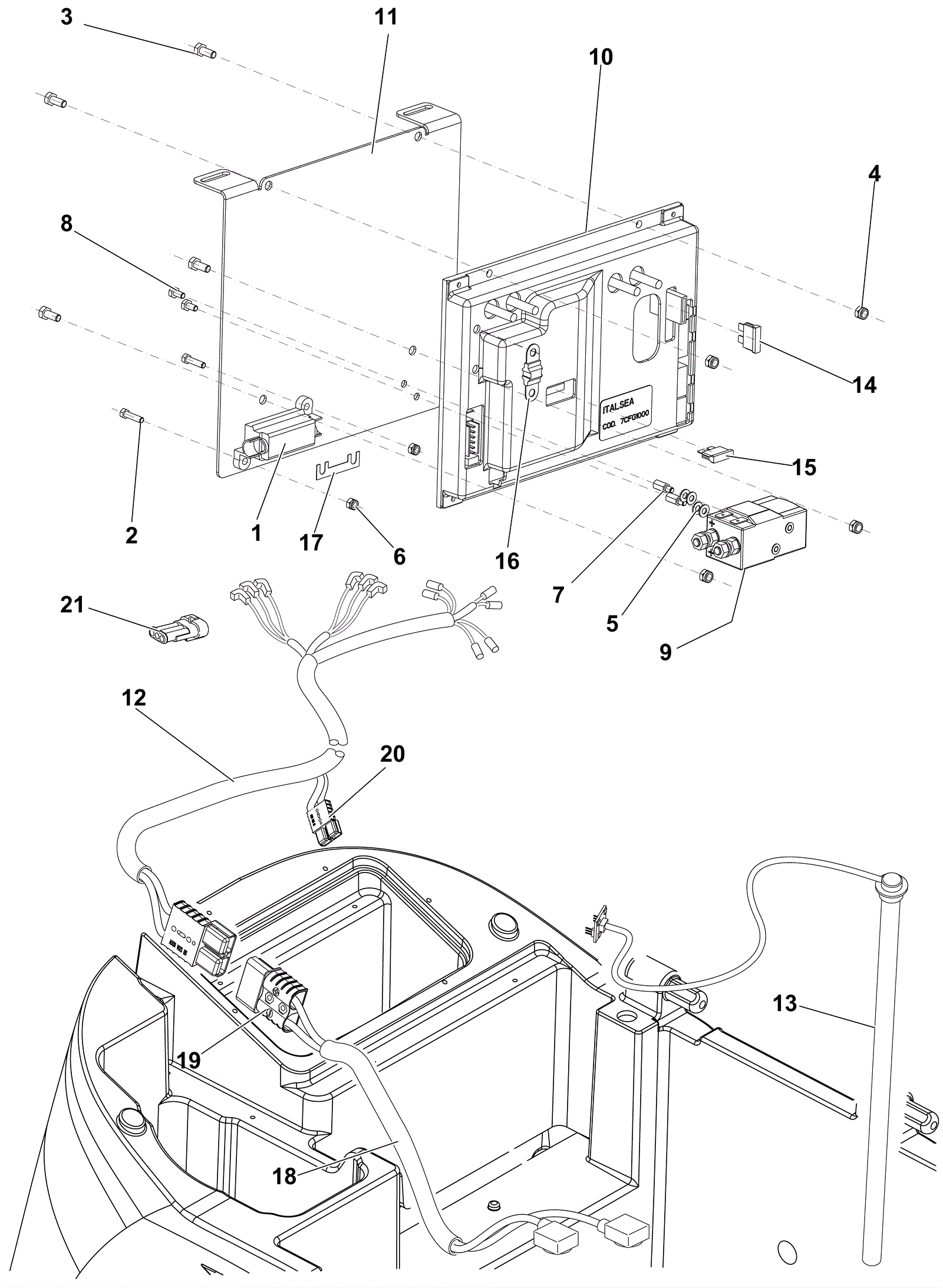

3400ST Wiring Diagram - ST

#PartDescriptionPriceReqNotesAvailability
1 181-0966 Fuse holder $28.94 1 usually ships 16-41 days
2 270-8391 Electrical components kit (OBSOLETE) $16.90 2 (screw) usually ships 1-5 days
3 270-8391 Electrical components kit (OBSOLETE) $16.90 4 (screw) usually ships 1-5 days
4 270-8391 Electrical components kit (OBSOLETE) $16.90 4 (nut) usually ships 1-5 days
5 270-8391 Electrical components kit (OBSOLETE) $16.90 4 (washer) usually ships 1-5 days
6 270-8391 Electrical components kit (OBSOLETE) $16.90 2 (nut) usually ships 1-5 days
7 270-8391 Electrical components kit (OBSOLETE) $16.90 2 (spacer) usually ships 1-5 days
8 270-8391 Electrical components kit (OBSOLETE) $16.90 2 (screw) usually ships 1-5 days
9 272-6327 24V electromagnetic switch $92.60 1 usually ships 5-7 days
10 270-8383 Electronic traction card kit $1,301.59 1 usually ships 16-41 days
11 270-8384 Electronic plate (OBSOLETE) $31.20 1 usually ships 1-5 days
12a 270-8385 Component box harness $488.33 1 usually ships 1-5 days
12b 270-8386 Electrical components harness $393.17 1 usually ships 1-5 days
13 270-8387 Pressure sensor kit $634.09 1 usually ships 16-41 days
14 572-3491 FUSE BLADE 3A PKD $10.90 1 usually ships 16-41 days
15 172-3648 15amp fuse $10.90 1 usually ships 16-41 days
16 270-8388 100amp fuse $19.09 1 usually ships 16-41 days
17 181-0964 50amp fuse $12.18 1 usually ships 16-41 days
18 270-8389 Battery harness $271.13 1 usually ships 1-5 days
19 272-8374 120amp connector (red) $46.62 1 usually ships 16-41 days
20 991-2103 50amp charger plug SB50 with pins (red) $4.94 1 ships same day
21 270-8390 3 way connector (OBSOLETE) $7.30 1 usually ships 16-41 days
N/S 270-8391 Electrical components kit (OBSOLETE) $16.90 1 (includes 2-8) usually ships 1-5 days
