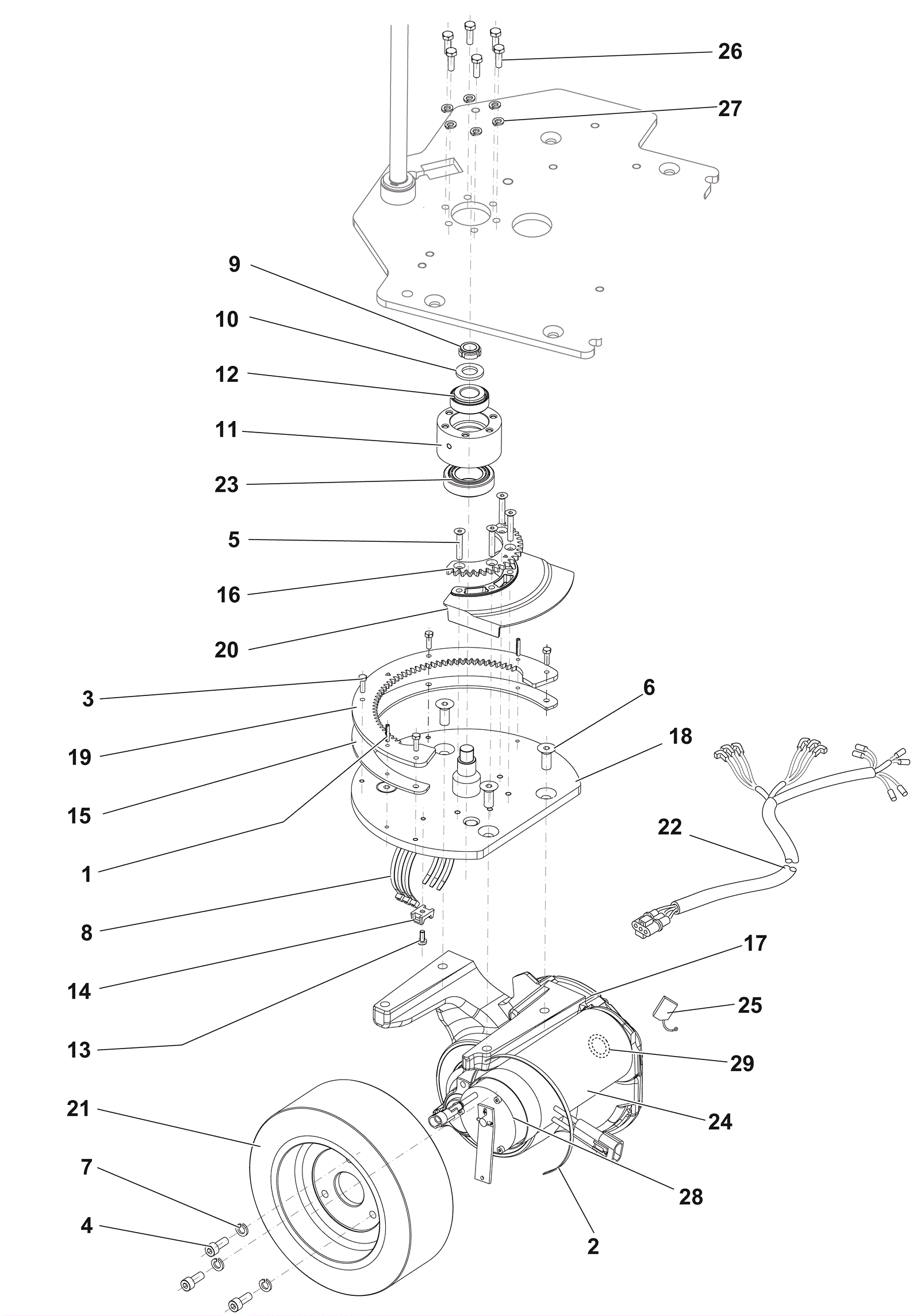

SC3000 Drive Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 270-8290 Drive wheel kit $55.14 2 (pin) usually ships 13-18 days
2 270-8290 Drive wheel kit $55.14 1 (clamp) usually ships 13-18 days
3 270-8290 Drive wheel kit $55.14 4 (screw) usually ships 13-18 days
4 270-8290 Drive wheel kit $55.14 3 (screw) usually ships 13-18 days
5 270-8290 Drive wheel kit $55.14 4 (screw) usually ships 13-18 days
6 270-8290 Drive wheel kit $55.14 4 (screw) usually ships 13-18 days
7 270-8290 Drive wheel kit $55.14 3 (washer) usually ships 13-18 days
8 270-8290 Drive wheel kit $55.14 3 (clamp) usually ships 13-18 days
9 270-8290 Drive wheel kit $55.14 1 (nut) usually ships 13-18 days
10 270-8290 Drive wheel kit $55.14 1 (washer) usually ships 13-18 days
11 272-3537 Ball bearing support $73.78 1 usually ships 13-18 days
12 272-3535 Ball bearing $37.27 1 usually ships 13-18 days
13 270-8290 Drive wheel kit $55.14 1 (screw) usually ships 13-18 days
14 270-8290 Drive wheel kit $55.14 1 (flat tie holder) usually ships 13-18 days
15 270-8291 Crown steering spacer $30.60 1 usually ships 1-5 days
16 270-8292 Main gear $49.24 1 usually ships 13-18 days
17 270-8293 Wheel motor kit $4,088.19 1 usually ships 1-5 days
18 270-8294 Steering bracket $281.00 1 usually ships 13-18 days
19 270-8295 Steering crown $66.03 1 usually ships 13-18 days
20 270-8296 Drive wheel protection $11.35 1 usually ships 1-5 days
21 270-8297 Drive wheel $392.79 1 usually ships 13-18 days
22 270-8298 Wheel motor harness $142.86 1 usually ships 13-18 days
23 272-3534 Ball bearing $41.83 1 usually ships 13-18 days
24 572-3398 MOTOR ELECTRIC 300W 24V PKD $1,843.84 1 usually ships 13-18 days
25 270-8300 Carbon brush kit $121.95 1 usually ships 13-18 days
26 270-8290 Drive wheel kit $55.14 6 (screw) usually ships 13-18 days
27 270-8290 Drive wheel kit $55.14 6 (washer) usually ships 13-18 days
28 270-8301 Electric brake $721.96 1 usually ships 13-18 days
29 270-8302 Oil seal $62.89 1 usually ships 1-5 days
KIT 1 270-8290 Drive wheel kit $55.14 1 (includes: 1-10, 13, 14, 26 and 27) usually ships 13-18 days
