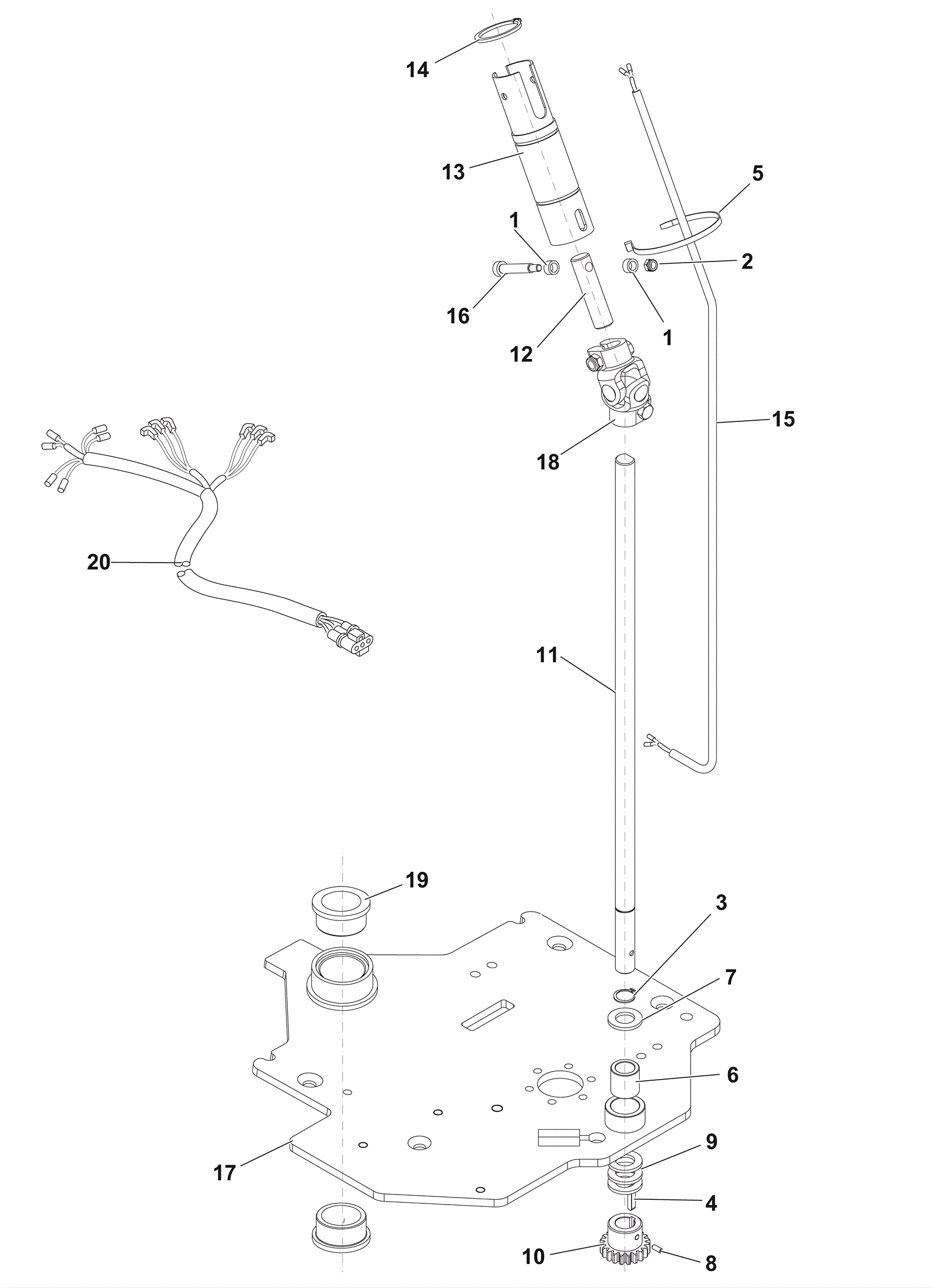

SC3000 Steering Wheel Support Assembly

#PartDescriptionPriceReqNotesAvailability
1 572-3683 HARDWARE STEERING SUPPORT KIT $61.41 2 (spacer) usually ships 16-41 days
2 572-3683 HARDWARE STEERING SUPPORT KIT $61.41 1 (nut) usually ships 16-41 days
3 572-3683 HARDWARE STEERING SUPPORT KIT $61.41 1 (ring) usually ships 16-41 days
4 172-3730 Square keyway $48.32 1 usually ships 1-5 days
5 572-3683 HARDWARE STEERING SUPPORT KIT $61.41 1 (clamp) usually ships 16-41 days
6 572-3683 HARDWARE STEERING SUPPORT KIT $61.41 1 (bushing) usually ships 16-41 days
7 572-3683 HARDWARE STEERING SUPPORT KIT $61.41 1 (washer) usually ships 16-41 days
8 572-3683 HARDWARE STEERING SUPPORT KIT $61.41 1 (screw) usually ships 16-41 days
9 572-3683 HARDWARE STEERING SUPPORT KIT $61.41 3 (washer) usually ships 16-41 days
10 170-9111 Steeting pinion $96.09 1 usually ships 1-5 days
11 572-3697 SHAFT STEERING PHOS. PKD $65.65 1 usually ships 16-41 days
12 272-9528 Steering shaft (OBSOLETE) $11.77 1 usually ships 1-5 days
13 572-3684 TUBE STEERING KIT $86.65 1 usually ships 16-41 days
14 572-3683 HARDWARE STEERING SUPPORT KIT $61.41 1 (ring) usually ships 16-41 days
15 272-9594 Steering wheel harness $94.53 1 usually ships 16-41 days
16 270-8286 Shoulder screw $5.50 1 usually ships 1-5 days
17 270-8288 Steering support plate $380.52 1 usually ships 1-5 days
18 272-8313 Joint $139.33 1 usually ships 16-41 days
19 270-8287 Flanged bushing $10.56 1 usually ships 1-5 days
20 N/A Not available Call for price 1 (foot board harness) usually ships 3-26 days
KIT 1 572-3683 HARDWARE STEERING SUPPORT KIT $61.41 1 (includes: 1-3, 5-9 and 14) usually ships 16-41 days
