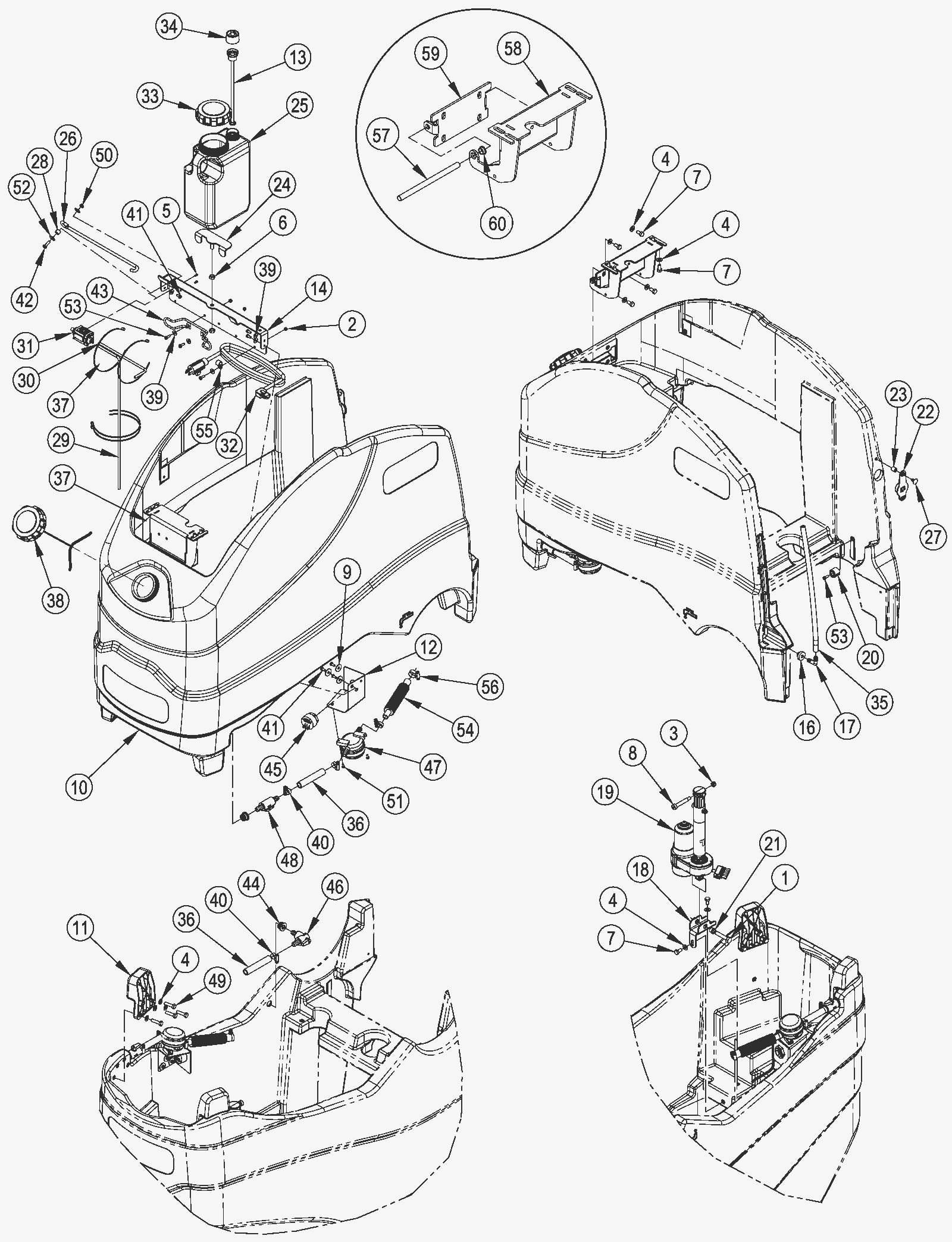

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
272-6768
|
Actuator kit |
1 |
(screw) |
|
1b |
272-6770
|
Solution hardware kit |
1 |
(screw) |
|
2 |
272-6770
|
Solution hardware kit |
3 |
(nut) |
|
3a |
272-6768
|
Actuator kit |
1 |
(nut) |
|
3b |
272-6770
|
Solution hardware kit |
1 |
(nut) |
|
4a |
272-6769
|
Tip pad kit |
18 |
(washer) |
|
4b |
272-6770
|
Solution hardware kit |
18 |
(washer) |
|
5 |
272-6770
|
Solution hardware kit |
2 |
(screw) |
|
6 |
272-6770
|
Solution hardware kit |
2 |
(nut) |
|
7 |
272-6770
|
Solution hardware kit |
10 |
(screw) |
|
8a |
272-6768
|
Actuator kit |
1 |
(screw) |
|
8b |
272-6770
|
Solution hardware kit |
1 |
(screw) |
|
9 |
272-6770
|
Solution hardware kit |
3 |
(washer) |
|
10 |
272-6750
|
Solution tank |
1 |
|
|
11 |
272-6769
|
Tip pad kit |
2 |
(tip pad) |
|
12 |
272-6751
|
Filter bracket |
1 |
|
|
13 |
272-6752
|
Dry brake insert |
1 |
|
|
14 |
272-6753
|
Tank support bracket |
1 |
|
|
16 |
181-0437
|
Grommet |
1 |
|
|
17 |
170-6089
|
90 degree hosebarb |
1 |
|
|
18 |
272-6758
|
Actuator bracket |
1 |
|
|
19 |
272-6768
|
Actuator kit |
1 |
(actuator assembly) |
|
20 |
272-6759
|
Pivot block |
2 |
|
|
21 |
272-6768
|
Actuator kit |
1 |
(actuator spacer) |
|
22 |
272-6767
|
Solution cap kit |
1 |
(rubber solution cap) |
|
23 |
272-6760
|
M8 brass insert |
1 |
|
|
24 |
272-6761
|
Adjustment pad |
1 |
|
|
25 |
272-6762
|
Chemical bottle assembly |
1 |
|
|
26 |
272-6763
|
Prop rod |
1 |
|
|
27 |
272-6767
|
Solution cap kit |
1 |
(panel clip) |
|
28 |
272-6770
|
Solution hardware kit |
1 |
(bushing) |
|
29 |
272-3637
|
Chemical resistant hose |
1 |
|
|
30 |
272-5404
|
Chemical resistant hose |
1 |
|
|
31 |
272-2175
|
Chemical pump |
1 |
|
|
32 |
270-8395
|
AC cord |
1 |
|
|
33 |
272-2180
|
Solution fill cap |
1 |
|
|
34 |
272-2182
|
Dry break cap |
1 |
|
|
35 |
209-0040
|
Hose 3/8 x 24 inch |
1 |
|
|
36a |
272-6764
|
Solution drain kit |
2 |
(hose) |
|
36b |
272-6765
|
Solution hose kit |
2 |
(hose) |
|
37 |
272-5462
|
Clamp 4.8 x 30 (white) (OBSOLETE) |
4 |
|
|
38 |
272-9352
|
Raw cap with tether |
1 |
|
|
39 |
272-6770
|
Solution hardware kit |
6 |
(washer) |
|
40a |
272-6764
|
Solution drain kit |
4 |
(hose clamp) |
|
40b |
272-6765
|
Solution hose kit |
4 |
(hose clamp) |
|
41 |
272-6770
|
Solution hardware kit |
6 |
(screw) |
|
42 |
272-6770
|
Solution hardware kit |
1 |
(screw) |
|
43 |
272-0659
|
On-board charger cord wrap |
1 |
|
|
44a |
272-6764
|
Solution drain kit |
2 |
(gasket) |
|
44b |
272-6765
|
Solution hose kit |
2 |
(gasket) |
|
45 |
170-9221
|
Buzzer |
1 |
|
|
46 |
272-6764
|
Solution drain kit |
1 |
(ball valve) |
|
47 |
272-6766
|
Solution filter kit |
1 |
(water filter) |
|
48 |
272-6765
|
Solution hose kit |
1 |
(ball valve) |
|
49a |
272-6769
|
Tip pad kit |
8 |
(screw) |
|
49b |
272-6770
|
Solution hardware kit |
8 |
(screw) |
|
50 |
272-6770
|
Solution hardware kit |
1 |
(nut) |
|
51a |
272-6766
|
Solution filter kit |
2 |
(screw) |
|
51b |
272-6770
|
Solution hardware kit |
2 |
(screw) |
|
52 |
272-6770
|
Solution hardware kit |
2 |
(washer) |
|
53 |
272-6770
|
Solution hardware kit |
5 |
(screw) |
|
54 |
272-6765
|
Solution hose kit |
1 |
(solution hose) |
|
55 |
272-8416
|
P clamp |
1 |
|
|
56 |
997-2004
|
Hose clamp |
1 |
|
|
57 |
272-6754
|
Hinge pin |
1 |
|
|
58 |
272-6755
|
Hinge weldment |
1 |
|
|
59 |
272-6756
|
Hinge bracket |
1 |
|
|
60 |
272-6757
|
Flange bearing |
1 |
|
|
KIT 1 |
272-6764
|
Solution drain kit |
1 |
(includes 36a, 40a, 44a and 46) |
|
KIT 2 |
272-6765
|
Solution hose kit |
1 |
(includes 36b, 40b, 44b, 48, 54 and 56) |
|
KIT 3 |
272-6766
|
Solution filter kit |
1 |
(includes 47 and 51a) |
|
KIT 4 |
272-6767
|
Solution cap kit |
1 |
(includes 22 and 27) |
|
KIT 5 |
272-6768
|
Actuator kit |
1 |
(includes 1a, 3a, 8a, 19 and 21) |
|
KIT 6 |
272-6769
|
Tip pad kit |
1 |
(includes 4a, 11 and 49a) |
|
KIT 7 |
272-6770
|
Solution hardware kit |
1 |
(includes 1b, 2, 3b, 4b, 5-7, 8b, 9, 28, 39, 41, 42, 49b, 50, 51b, 52 and 53) |
|
