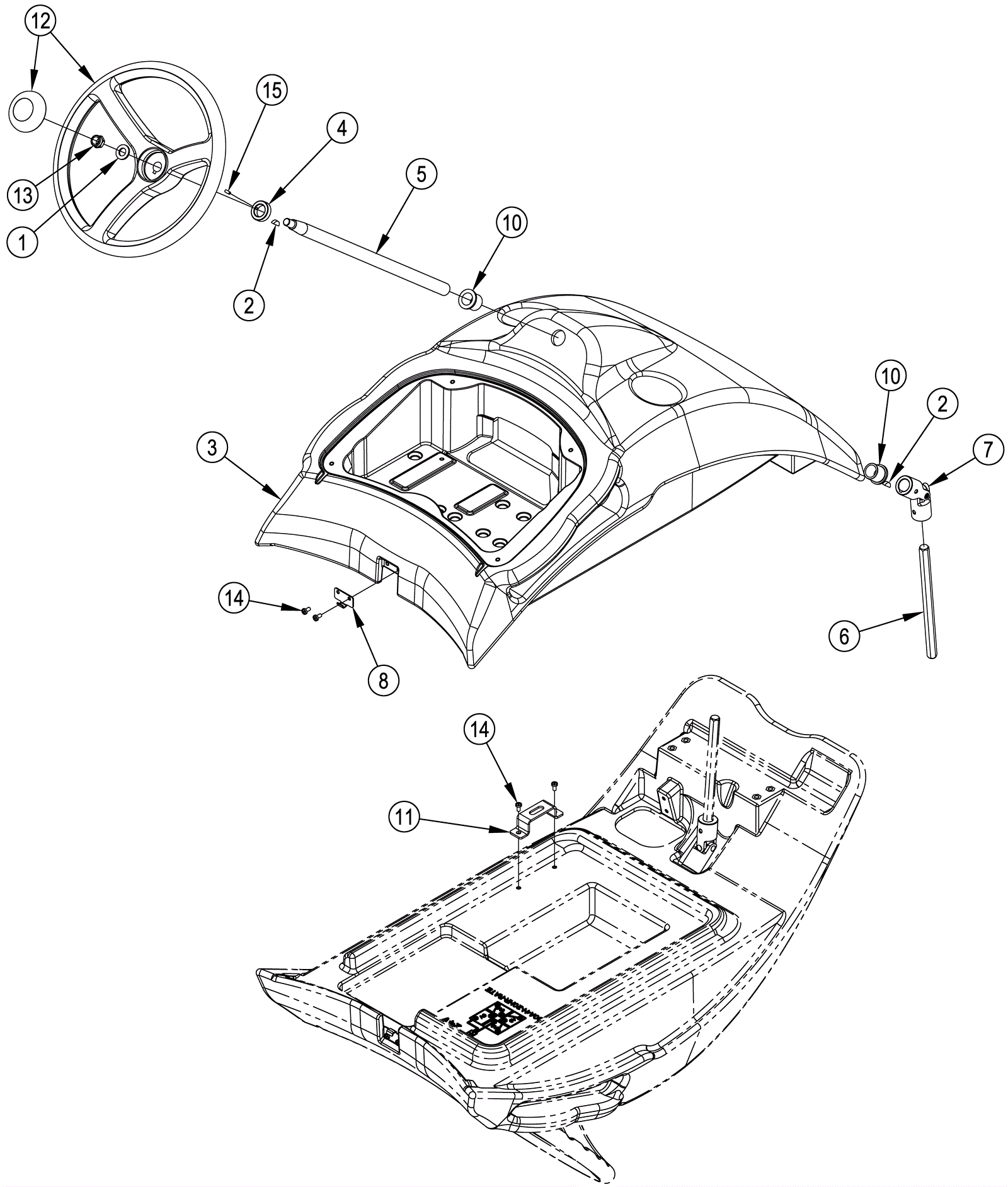

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
272-6688
|
Control hardware kit |
1 |
(washer) |
|
2 |
272-6688
|
Control hardware kit |
2 |
(key) |
|
3 |
272-6689
|
Control panel |
1 |
|
|
4 |
272-6688
|
Control hardware kit |
1 |
(collar) |
|
5 |
272-6690
|
Steering shaft |
1 |
|
|
6 |
272-6691
|
Hex shaft |
1 |
|
|
7 |
272-6658
|
Universal joint kit |
1 |
|
|
8 |
272-6692
|
Draw latch kit |
1 |
(hook latch) |
|
10 |
272-6688
|
Control hardware kit |
2 |
(flanged bearing) |
|
11 |
272-6693
|
Prop rod bracket |
1 |
|
|
12 |
272-8887
|
Steering wheel |
1 |
|
|
13 |
272-6688
|
Control hardware kit |
1 |
(nut) |
|
14a |
272-6692
|
Draw latch kit |
4 |
(screw) |
|
14b |
272-6688
|
Control hardware kit |
4 |
(screw) |
|
15 |
272-6688
|
Control hardware kit |
1 |
(set screw) |
|
KIT 1 |
272-6692
|
Draw latch kit |
1 |
(includes 8 and 14a) |
|
KIT 2 |
272-6688
|
Control hardware kit |
1 |
(inlcudes 1, 2, 4, 10, 13, 14b and 15) |
|
