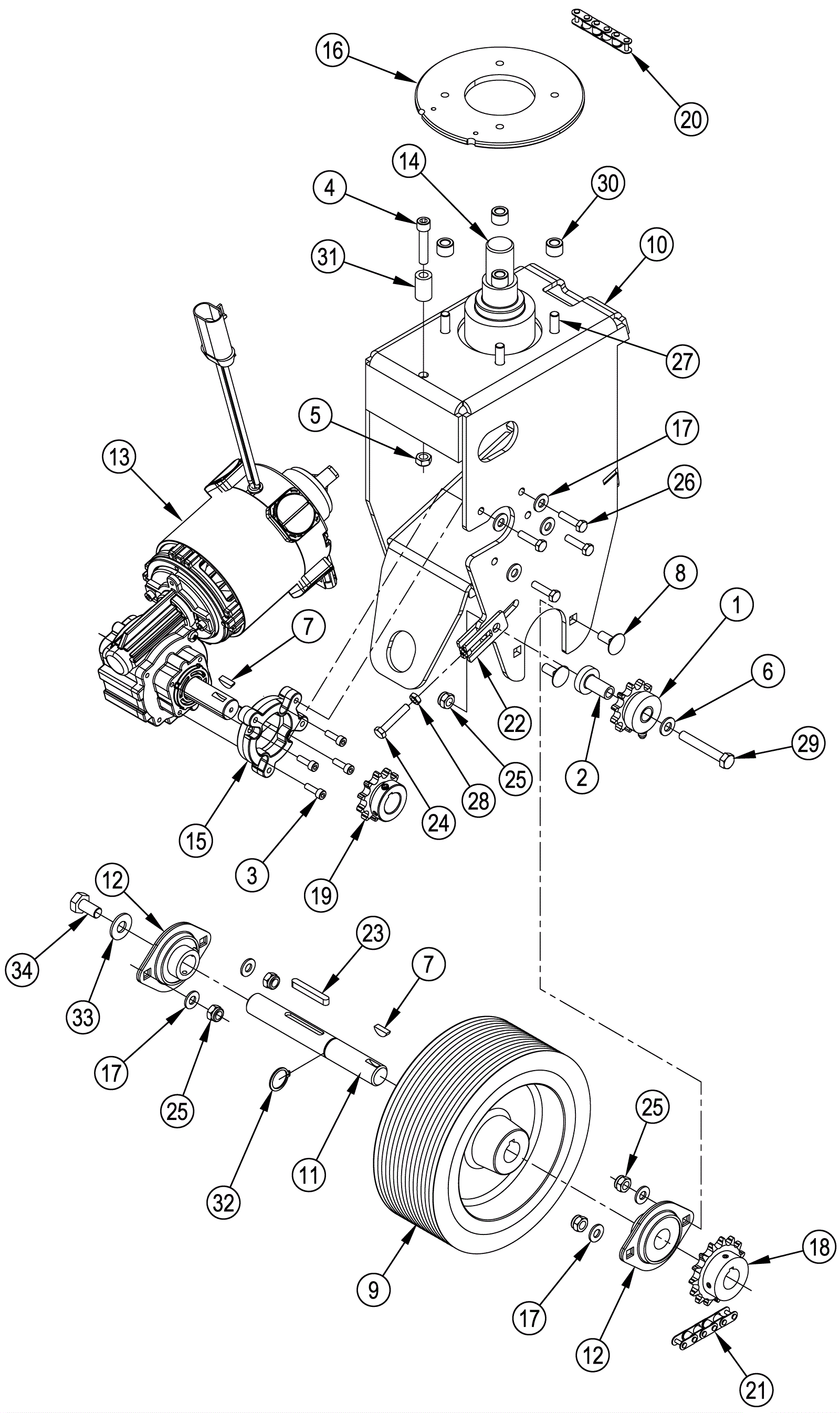

| # | Part | Description | Price | Req | Notes | Availability |
|---|
10a |
272-6668
|
Drive wheel frame weldment |
$505.68
|
1 |
(before October 2013) |
usually ships 1-5 days |
10b |
372-1362
|
Drive wheel frame weldment |
$152.05
|
1 |
(after September 2013) |
usually ships 17-28 days |
13b |
272-6669
|
Electromagnetic brake kit |
$398.17
|
1 |
(optional)(can be used to replace electromagnetic brake as separate repair part for drive wheel motor) |
usually ships 17-28 days |
14 |
272-6670
|
Spindle weldment |
$192.01
|
1 |
|
usually ships 1-5 days |
16 |
272-6671
|
Steering plate |
$44.58
|
1 |
|
usually ships 1-5 days |
20 |
272-6672
|
Roller chain |
$53.22
|
1 |
|
usually ships 17-28 days |
32 |
172-4754
|
Snap ring |
$12.31
|
1 |
|
usually ships 17-28 days |
33 |
272-6673
|
Washer |
$9.26
|
1 |
|
usually ships 1-5 days |
34 |
999-1170
|
Bolt M10-1.5 x 20mm hex head stainless steel |
$3.06
|
1 |
|
ships same day |
KIT 1 |
272-6674
|
Drive wheel motor kit |
$2,220.72
|
1 |
(includes 3, 7, 13, 15, 17 and 26) |
usually ships 17-28 days |
KIT 2 |
272-6675
|
Wheel and bearing kit |
$765.95
|
1 |
(includes 7, 8, 9, 11, 12, 17, 23, 25, 26 and 32-34) |
usually ships 17-28 days |
KIT 3 |
272-6676
|
Sprocket and chain kit |
$444.17
|
1 |
(includes 1, 2, 6, 7, 18, 19, 21, 22, 24, 25, 28 and 29) (used with 10a) |
usually ships 17-28 days |
KIT 4 |
272-6677
|
Sprocket and chain kit |
$459.81
|
1 |
(includes 1, 2, 6, 7, 18, 19, 21, 22, 24, 25, 28 and 29) (used with 10b) |
usually ships 17-28 days |
KIT 5 |
272-6678
|
Drive wheel hardware kit |
$63.07
|
1 |
(includes 2, 3, 4, 5, 6, 8, 17, 24, 25, 26, 27, 28, 29, 30 and 31) |
usually ships 17-28 days |
KIT 6 |
272-6679
|
Front wheel bearings kit |
$275.91
|
1 |
(includes 8 and 12) |
usually ships 17-28 days |
