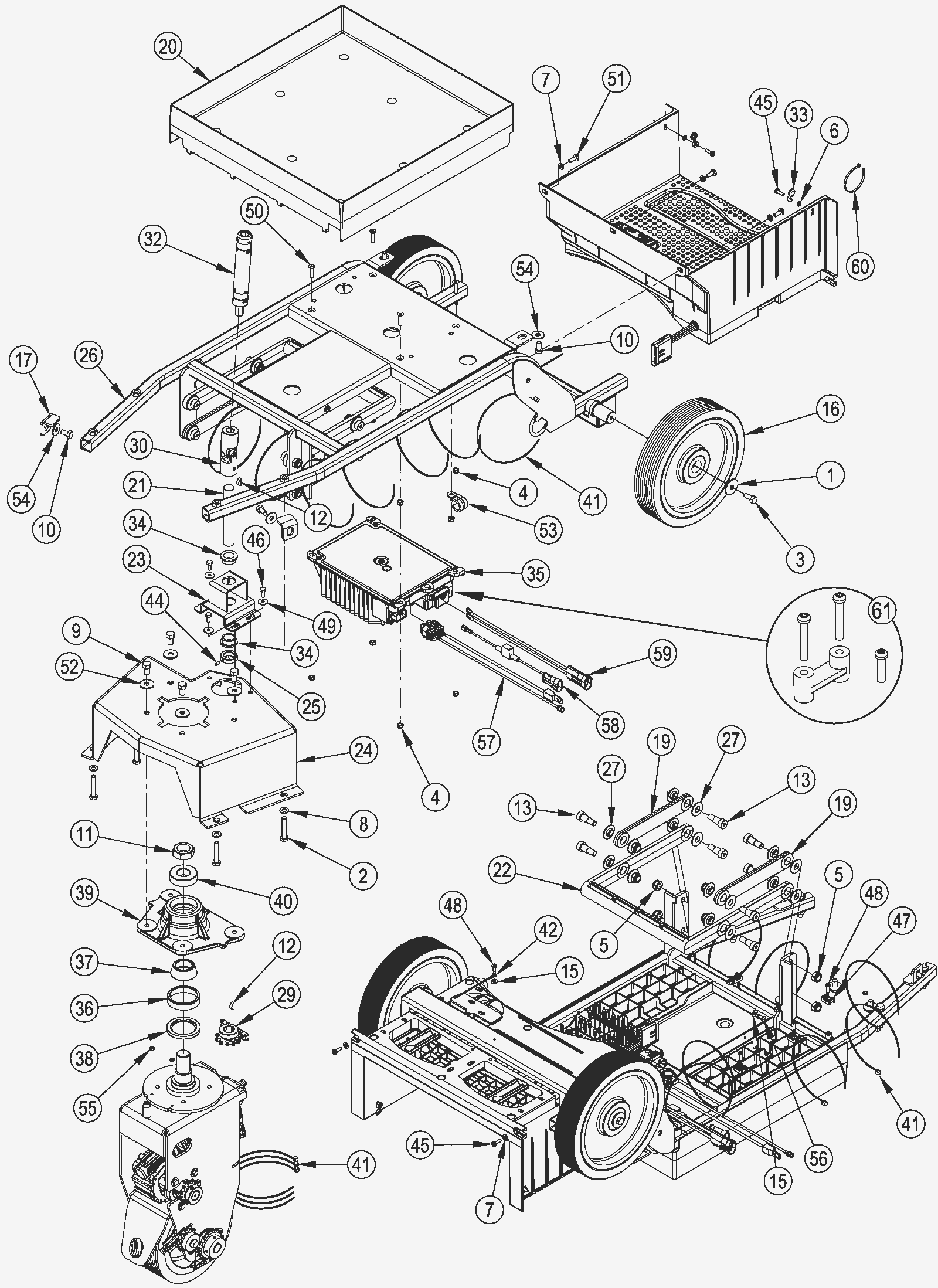

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
572-9315
|
Rear wheel kit |
2 |
(washer) |
|
1b |
272-6661
|
Chassis hardware kit |
2 |
(washer) |
|
2 |
272-6661
|
Chassis hardware kit |
4 |
(screw) |
|
3 |
999-9092
|
Screw M8-1.25 x 20mm hex head stainless steel |
2 |
|
|
4 |
272-6661
|
Chassis hardware kit |
9 |
(nut) |
|
5 |
272-6661
|
Chassis hardware kit |
8 |
(nut) |
|
6 |
272-6661
|
Chassis hardware kit |
2 |
(washer) |
|
7 |
272-6661
|
Chassis hardware kit |
5 |
(washer) |
|
8 |
272-6661
|
Chassis hardware kit |
4 |
(washer) |
|
9 |
272-6661
|
Chassis hardware kit |
4 |
(screw) |
|
10 |
272-6661
|
Chassis hardware kit |
4 |
(screw) |
|
11 |
272-6660
|
Bearing block kit |
1 |
(nut) |
|
12 |
272-6661
|
Chassis hardware kit |
2 |
(square keyway) |
|
13 |
272-6661
|
Chassis hardware kit |
8 |
(screw) |
|
15 |
272-6661
|
Chassis hardware kit |
2 |
(washer) |
|
16 |
572-9315
|
Rear wheel kit |
2 |
(wheel) |
|
17 |
272-6645
|
Mounting tab |
2 |
|
|
19 |
272-6646
|
Linkage bar |
2 |
|
|
20 |
272-6647
|
Battery tray |
1 |
|
|
21 |
272-6648
|
Steering shaft |
1 |
|
|
22 |
272-6649
|
Link bar |
1 |
|
|
23 |
272-6650
|
Steering shaft weldment |
1 |
|
|
24 |
272-6651
|
Spindle mount weldment |
1 |
|
|
25 |
272-6652
|
Collar |
1 |
|
|
26 |
272-6653
|
Chassis weldment (OBSOLETE) |
1 |
|
|
27 |
272-6661
|
Chassis hardware kit |
16 |
(bushing) |
|
29 |
272-6655
|
11 tooth sprocket |
1 |
|
|
30 |
272-6658
|
Universal joint kit |
1 |
(joint) |
|
32 |
272-6656
|
Steering assembly tube |
1 |
|
|
33 |
272-6661
|
Chassis hardware kit |
2 |
(screw cap) |
|
34 |
272-6657
|
Flange bearing |
2 |
|
|
35 |
270-8393
|
24V onboard battery charger |
1 |
(onboard battery charger 56112544 replaced by 56383856) |
|
36 |
272-6660
|
Bearing block kit |
1 |
(bearing cup) |
|
37 |
272-6660
|
Bearing block kit |
1 |
(bearing cone) |
|
38 |
272-6660
|
Bearing block kit |
1 |
(shaft seal) |
|
39 |
172-3319
|
Bearing block |
1 |
|
|
40 |
272-6660
|
Bearing block kit |
1 |
(ball bearing) |
|
41 |
272-6661
|
Chassis hardware kit |
10 |
(cable tie) |
|
42 |
272-6661
|
Chassis hardware kit |
1 |
(ball chain) |
|
44 |
272-6661
|
Chassis hardware kit |
1 |
(set screw) |
|
45 |
272-6661
|
Chassis hardware kit |
4 |
(screw) |
|
46 |
272-6661
|
Chassis hardware kit |
3 |
(screw) |
|
47 |
272-6661
|
Chassis hardware kit |
5 |
(flat tie holder) |
|
48 |
272-6661
|
Chassis hardware kit |
5 |
(screw) |
|
49 |
272-6661
|
Chassis hardware kit |
3 |
(washer) |
|
50 |
272-6661
|
Chassis hardware kit |
4 |
(screw) |
|
51 |
272-6661
|
Chassis hardware kit |
3 |
(screw) |
|
52 |
272-6661
|
Chassis hardware kit |
4 |
(washer) |
|
53 |
272-0763
|
Clamp |
1 |
|
|
54 |
272-6661
|
Chassis hardware kit |
4 |
(washer) |
|
55 |
272-6662
|
Spacer |
2 |
|
|
56 |
272-6661
|
Chassis hardware kit |
2 |
(screw) |
|
57 |
272-6663
|
LED charge indicator |
1 |
|
|
58 |
272-6664
|
Interlock pin adapter |
1 |
|
|
59 |
272-6665
|
Power charger adapter |
1 |
|
|
60 |
272-0678
|
Wire tie (OBSOLETE) |
1 |
|
|
61 |
272-6666
|
Strain relief kit |
1 |
|
|
KIT 1 |
572-9315
|
Rear wheel kit |
1 |
(includes 1a, 3 and 16) |
|
KIT 2 |
272-6660
|
Bearing block kit |
1 |
(includes 11, 36-38 and 40) |
|
KIT 3 |
272-6661
|
Chassis hardware kit |
1 |
(includes 1b, 3, 4-10, 12-15, 27, 33, 41-52, 54 and 56) |
|
N/S |
272-6654
|
Drive motor harness (OBSOLETE) |
1 |
|
|
N/S |
162-0003
|
6V 225Ah wet battery (SNSR) |
4 |
|
|
N/S |
162-0057
|
12V 150Ah wet battery |
2 |
|
|
N/S |
162-0043
|
6V 224Ah AGM battery (Group GC2) (SNSR) |
4 |
|
|
N/S |
162-0045
|
12V 140Ah AGM battery |
2 |
|
|
