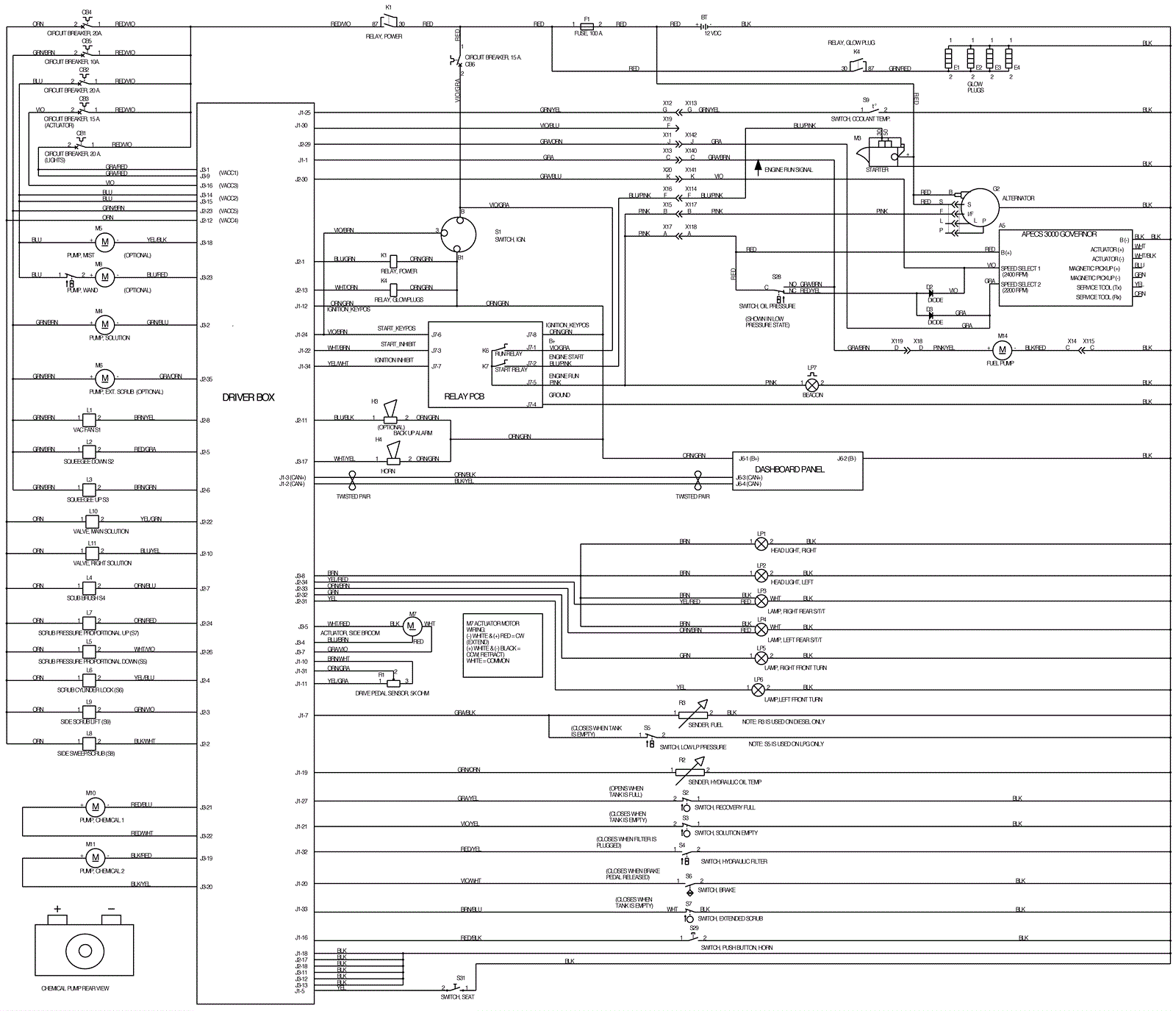

SC8000 Ladder Diagram - Diesel

#PartDescriptionPriceReqNotesAvailability
BT 272-7720 12 volt battery $482.66 1 usually ships 17-28 days
CB1 272-7727 20amp circuit breaker $29.23 1 ships same day
CB2 272-7727 20amp circuit breaker $29.23 1 ships same day
CB3 272-9755 15amp circuit breaker $15.48 1 usually ships 17-28 days
CB4 272-7727 20amp circuit breaker $29.23 1 ships same day
CB5 272-9374 10amp circuit breaker $24.60 1 usually ships 17-28 days
CB6 272-9755 15amp circuit breaker $15.48 1 usually ships 17-28 days
F1 272-7716 100amp fuse $72.63 1 usually ships 1-5 days
G2 272-7751 105amp alternator $498.29 1 usually ships 1-5 days
H3 172-9146 Back-Up alarm $129.05 1 usually ships 1-5 days
H4 272-7719 12V horn $183.90 1 usually ships 1-5 days
K1 272-7725 12V 75amp relay $86.09 1 usually ships 17-28 days
K4 272-7725 12V 75amp relay $86.09 1 usually ships 17-28 days
L10 272-3982 Solenoid valve assembly $390.80 1 usually ships 17-28 days
L11 272-3839 Solenoid valve assembly $261.02 1 usually ships 1-5 days
LP1a 272-7702 Right side headlight assembly $77.12 1 usually ships 1-5 days
LP1b 272-7703 Headlight replacement bulb $26.04 1 usually ships 17-28 days
LP2a 272-7700 Left side headlight assembly $126.03 1 usually ships 1-5 days
LP2b 272-7703 Headlight replacement bulb $26.04 1 usually ships 17-28 days
LP3 272-4023 Rear lamp $51.21 1 usually ships 1-5 days
LP4 272-4023 Rear lamp $51.21 1 usually ships 1-5 days
LP5 272-4023 Rear lamp $51.21 1 usually ships 1-5 days
LP6 272-4023 Rear lamp $51.21 1 usually ships 1-5 days
LP7a 272-9485 Warning beacon $459.81 1 usually ships 1-5 days
LP7b 272-4024 Bulb $74.21 1 usually ships 1-5 days
LP7c 272-4025 Bulb $35.60 1 usually ships 1-5 days
M3 272-7812 Starter motor $1,684.68 1 usually ships 1-5 days
M4 272-3980 12V pump assembly $582.05 1 usually ships 17-28 days
M5 272-3961 24V pump $352.17 1 usually ships 1-5 days
M6 272-3980 12V pump assembly $582.05 1 usually ships 17-28 days
M7 272-3941 Actuator motor $674.08 1 usually ships 1-5 days
M8 272-4026 12V pump assembly $827.59 1 usually ships 1-5 days
M10 272-7679 12V detergent pump $291.39 1 usually ships 1-5 days
M11 272-7679 12V detergent pump $291.39 1 usually ships 1-5 days
M14 272-7818 Electronic fuel pump $321.78 1 usually ships 1-5 days
N/S 272-7706 Dashboard panel assembly $1,990.97 1 usually ships 1-5 days
N/S 272-7816 Governor controller $2,373.51 1 usually ships 17-28 days
N/S 172-0826 Relay assembly $199.52 1 usually ships 1-5 days
