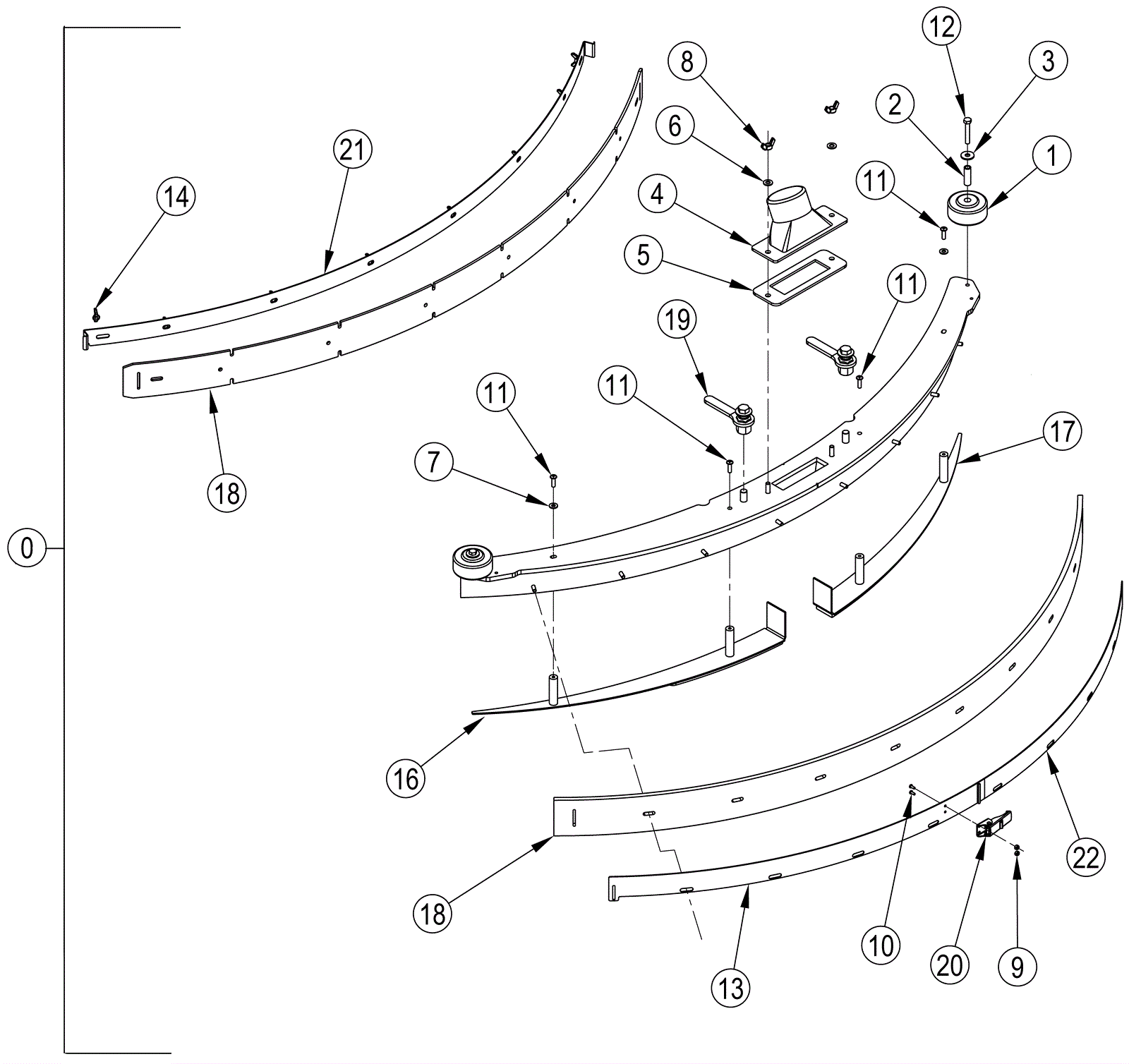

| # | Part | Description | Price | Req | Notes | Availability |
|---|
0 |
272-3987
|
Squeegee assembly |
$2,067.35
|
1 |
(includes 1-22) |
usually ships 17-28 days |
1 |
272-7402
|
Wheel |
$42.98
|
2 |
|
usually ships 17-28 days |
2 |
272-3997
|
Bushing |
$34.14
|
2 |
|
usually ships 1-5 days |
3 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
$0.99
|
2 |
|
ships same day |
4 |
272-6642
|
Adaptor |
$268.38
|
1 |
|
usually ships 17-28 days |
5 |
272-6643
|
Inlet gasket |
$52.67
|
1 |
|
usually ships 17-28 days |
6 |
999-9004
|
Washer 5/16 SAE flat stainless steel |
$1.69
|
2 |
|
ships same day |
7 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
$0.99
|
2 |
|
ships same day |
8 |
999-0133
|
Nut 5/16-18 wing zinc plated |
$0.99
|
2 |
|
ships same day |
9 |
999-0227
|
Nut 6-32 hex nylon insert lock jam zinc plated |
$0.99
|
2 |
|
ships same day |
10 |
999-0336
|
Screw 6-32 x 3/8 pan head phillips stainless steel |
$0.99
|
2 |
|
ships same day |
11 |
172-3137
|
Screw 1/4-20 x 7/8 pan head phillips stainless steel |
$12.31
|
4 |
|
usually ships 1-5 days |
12 |
999-1297
|
Screw M8 x 50mm hex head stainless steel |
$2.86
|
2 |
|
ships same day |
13 |
272-3998
|
Rear H strap |
$34.14
|
1 |
|
ships same day |
14 |
999-0603
|
Nut 1/4-20 wing stainless steel |
$7.33
|
8 |
|
ships same day |
16 |
272-3999
|
Left hand plate weldment |
$222.53
|
1 |
|
usually ships 1-5 days |
17 |
272-4000
|
Right hand plate weldment |
$229.88
|
1 |
|
usually ships 1-5 days |
18a |
272-7216
|
Squeegee blade kit gum rubber (red) |
$166.87
|
1 |
(includes 18b) |
usually ships 17-28 days |
18b |
272-4001
|
Squeegee blade rear gum rubber (red) |
$114.88
|
1 |
|
usually ships 1-5 days |
18c |
272-7217
|
Squeegee blade kit gum rubber |
$127.61
|
1 |
(includes 18d) |
usually ships 17-28 days |
18d |
272-4002
|
Squeegee blade rear gum rubber |
$65.97
|
1 |
|
usually ships 1-5 days |
18e |
272-7218
|
Squeegee blade kit polyurethane |
$544.35
|
1 |
(includes 18f) |
usually ships 1-5 days |
18f |
272-4003
|
Squeegee blade rear polyurethane |
$499.70
|
1 |
|
usually ships 1-5 days |
19 |
272-4004
|
Crank assembly |
$80.16
|
2 |
|
usually ships 1-5 days |
20 |
172-0094
|
Latch |
$44.58
|
1 |
|
ships same day |
21 |
272-4005
|
Front H strap |
$64.53
|
1 |
|
ships same day |
22 |
272-4006
|
Rear H strap |
$78.58
|
1 |
|
usually ships 17-28 days |
N/S |
272-4007
|
Strap kit |
$215.00
|
1 |
(includes 13, 21 and 22) |
ships same day |
