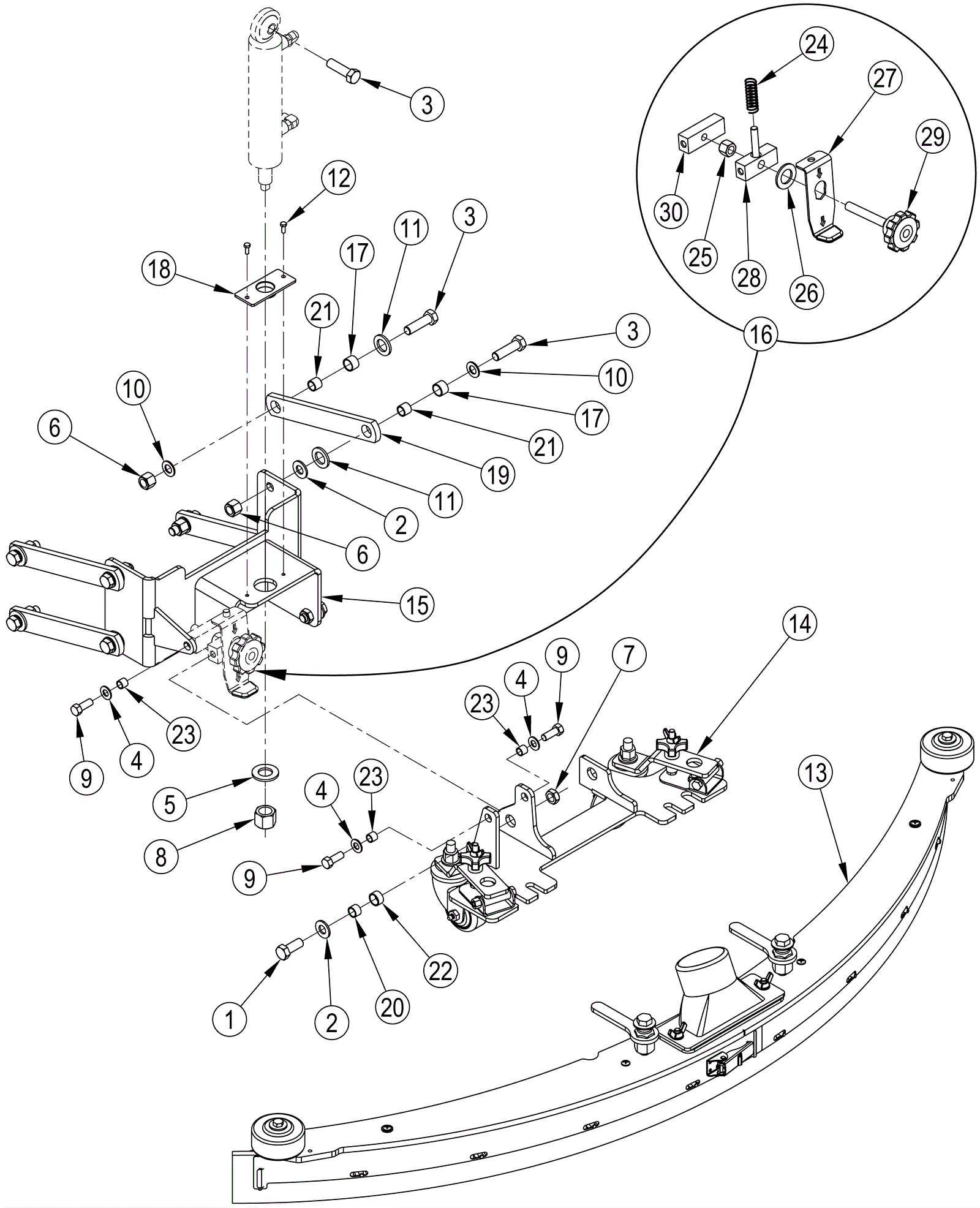

SC8000 Squeegee Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0687 Bolt 1/2-13 x 1 1/4 hex head stainless steel $2.95 2 ships same day
2 999-0559 Washer 1/2 x 1/4 flat stainless steel $0.99 6 ships same day
3 999-0372 Bolt 1/2-13 x 1 3/4 hex head $0.99 9 ships same day
4 999-9128 Washer 3/8 SAE flat stainless steel $2.11 4 ships same day
5 999-9114 Washer 3/4 flat stainless steel $1.58 1 ships same day
6 999-0118 Nut 1/2-13 nylon insert lock zinc plated $0.99 8 ships same day
7 999-0118 Nut 1/2-13 nylon insert lock zinc plated $0.99 2 ships same day
8 172-4883 Nut 3/4-10 hex nylok $12.31 1 usually ships 1-5 days
9 272-3908 Screw 3/8-16 x 1 hex lock stainless steel $9.26 4 usually ships 1-5 days
10 172-0550 Washer 33/64 x 3/4 flat $10.85 8 usually ships 17-28 days
11 272-7427 Washer 3/4 x 1 1/4 x 1/8 flat $10.85 8 usually ships 17-28 days
12 999-1369 Screw 10-24 x 1/2 hex head thread cutting stainless steel $0.99 2 ships same day
13 272-3987 Squeegee assembly $2,067.35 1 usually ships 17-28 days
14 272-3988 Squeegee mount assembly $980.23 1 usually ships 17-28 days
15 272-3989 Squeegee lift weldment $206.91 1 usually ships 17-28 days
16 272-3990 Adjuster assembly $238.01 1 (includes 24-30) usually ships 17-28 days
17 272-8609 Bearing $13.76 8 usually ships 1-5 days
18 272-3991 Guide plate $16.95 1 usually ships 17-28 days
19 272-3892 7 1/2 inch parallel arm $27.64 4 usually ships 1-5 days
20 172-0072 Bushing $44.58 2 usually ships 17-28 days
21 172-0024 Bushing $13.76 8 usually ships 17-28 days
22 272-5599 Sleeve bearing $13.76 2 usually ships 17-28 days
23 172-3101 Bushing $35.60 4 usually ships 1-5 days
24 172-0377 Spring $14.08 1 usually ships 1-5 days
25 999-0519 Nut M12-1.75 nylon insert lock stainless steel $3.85 1 ships same day
26 272-3992 Washer 7/8 x 1 1/2 x 7/64 flat stainless steel $12.31 1 usually ships 1-5 days
27 272-3993 Adjuster lock $49.63 1 usually ships 1-5 days
28 272-3994 Pivot weldment $87.54 1 usually ships 1-5 days
29 272-3995 Knob assembly $63.07 1 usually ships 17-28 days
30 272-3996 Squeegee adjuster bar $41.54 1 usually ships 1-5 days
