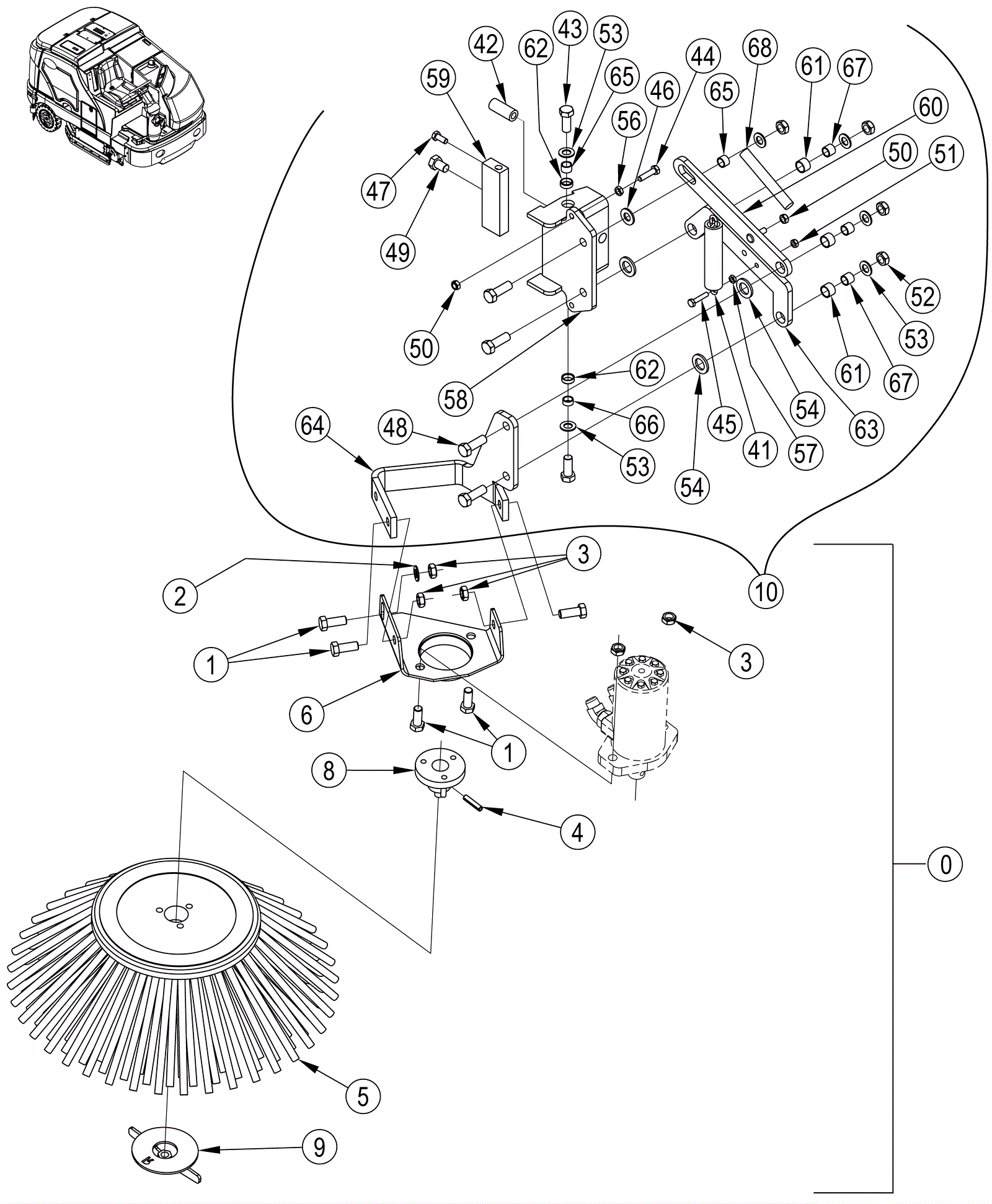

# | Part | Description | Price | Req | Notes | Availability |
0 |
272-3938
|
Right hand side broom assembly |
$1,830.00
|
1 |
(includes 1-10) |
usually ships 1-5 days |
1 |
999-0200
|
Bolt 1/2-13 x 1 1/4 hex head |
$2.68
|
5 |
|
ships same day |
2 |
999-0114
|
Washer 1/2 SAE flat |
$0.99
|
1 |
|
ships same day |
3 |
999-0262
|
Nut 1/2-13 nylon insert jam lock zinc plated |
$0.99
|
5 |
|
ships same day |
4 |
172-4440
|
Spring pin |
$10.90
|
1 |
|
usually ships 1-5 days |
5 |
272-3024
|
Heavy duty side broom |
$210.68
|
1 |
|
usually ships 16-41 days |
6 |
272-3955
|
Motor bracket weldment |
$96.44
|
1 |
|
usually ships 1-5 days |
8 |
272-3018
|
Side broom hub assembly |
$231.05
|
1 |
|
usually ships 1-5 days |
9 |
272-3956
|
Right hand thumb nut |
$116.80
|
1 |
|
usually ships 1-5 days |
10 |
272-3957
|
Right hand arm assembly |
$1,111.91
|
1 |
(includes 41-68) |
usually ships 1-5 days |
41 |
172-9385
|
Chain assembly |
$43.93
|
1 |
|
usually ships 1-5 days |
42 |
272-3027
|
Spring |
$66.98
|
1 |
|
usually ships 1-5 days |
43 |
999-0200
|
Bolt 1/2-13 x 1 1/4 hex head |
$2.68
|
2 |
|
ships same day |
44 |
999-0162
|
Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated |
$0.99
|
1 |
|
ships same day |
45 |
999-0136
|
Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated |
$0.99
|
1 |
|
ships same day |
46 |
999-0114
|
Washer 1/2 SAE flat |
$0.99
|
1 |
|
ships same day |
47 |
999-0556
|
Bolt 5/16-18 x 3/4 hex head stainless steel |
$0.99
|
1 |
|
ships same day |
48 |
999-0558
|
Bolt 1/2-13 x 1 1/2 hex head stainless steel |
$1.67
|
4 |
|
ships same day |
49 |
999-0815
|
Screw 1/2-13 x 3/4 hex hot dipped galvanized |
$0.99
|
1 |
|
usually ships 1-5 days |
50 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
$0.99
|
2 |
|
ships same day |
51 |
999-0190
|
Nut 1/4-20 hex plain finish |
$0.99
|
1 |
|
ships same day |
52 |
999-0262
|
Nut 1/2-13 nylon insert jam lock zinc plated |
$0.99
|
4 |
|
ships same day |
53 |
172-0550
|
Washer 33/64 x 3/4 flat |
$9.60
|
6 |
|
usually ships 16-41 days |
54 |
272-7427
|
Washer 3/4 x 1 1/4 x 1/8 flat |
$9.60
|
3 |
|
usually ships 16-41 days |
56 |
999-0430
|
Nut 5/16-18 hex jam plain finish |
$0.99
|
1 |
|
ships same day |
57 |
999-0971
|
Nut 1/4-20 jam stainless steel |
$0.99
|
1 |
|
ships same day |
58 |
272-3950
|
Hinge weldment |
$156.25
|
1 |
|
usually ships 1-5 days |
59 |
272-3951
|
Pivot block |
$87.35
|
1 |
|
usually ships 1-5 days |
60 |
272-3952
|
Upper side broom arm |
$85.94
|
1 |
|
usually ships 1-5 days |
61 |
272-8609
|
Bearing |
$12.18
|
3 |
|
usually ships 1-5 days |
62 |
272-3828
|
Sleeve bearing |
$13.70
|
2 |
|
usually ships 1-5 days |
63 |
272-3954
|
Lower side broom arm |
$82.73
|
1 |
|
usually ships 1-5 days |
64 |
272-3958
|
Side broom bracket |
$118.20
|
1 |
|
usually ships 1-5 days |
65 |
172-0072
|
Bushing |
$39.46
|
2 |
|
usually ships 16-41 days |
66 |
172-0139
|
Bushing |
$12.18
|
1 |
|
usually ships 1-5 days |
67 |
172-0024
|
Bushing |
$12.18
|
3 |
|
usually ships 16-41 days |
68 |
172-2341
|
Extension spring |
$12.18
|
1 |
|
usually ships 16-41 days |
