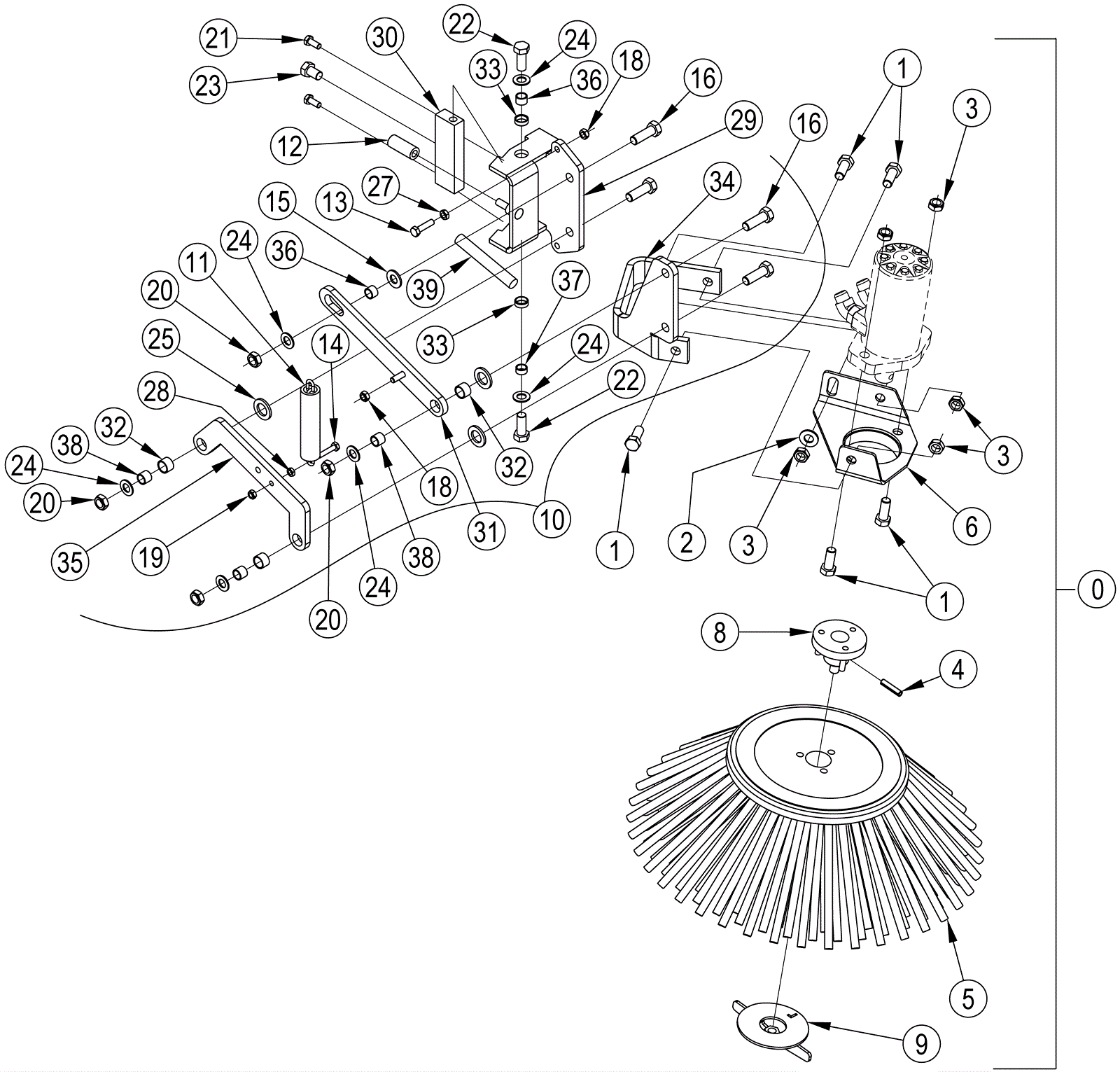

SC8000 Left Side Broom Assembly

#PartDescriptionPriceReqNotesAvailability
0 272-3935 Left hand side broom assembly $2,143.60 1 (includes 1-10) usually ships 1-5 days
1 999-0200 Bolt 1/2-13 x 1 1/4 hex head $3.45 5 ships same day
2 999-0114 Washer 1/2 SAE flat $0.99 1 ships same day
3 999-0262 Nut 1/2-13 nylon insert jam lock zinc plated $0.99 5 ships same day
4 172-4440 Spring pin $12.31 1 usually ships 1-5 days
5 272-3024 Heavy duty side broom $238.01 1 usually ships 17-28 days
6 272-3946 Left hand side broom bracket weldment $114.88 1 usually ships 1-5 days
8 272-3947 Left hand hub assembly $134.98 1 usually ships 1-5 days
9 272-3948 Left hand thumb nut $131.95 1 usually ships 1-5 days
10 272-3949 Left hand arm assembly $1,164.11 1 (includes 11-39) usually ships 1-5 days
11 172-9385 Chain assembly $49.63 1 usually ships 1-5 days
12 272-3027 Spring $75.67 1 usually ships 1-5 days
13 999-0162 Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated $0.99 1 ships same day
14 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated $0.99 1 ships same day
15 999-0114 Washer 1/2 SAE flat $0.99 1 ships same day
16 999-0558 Bolt 1/2-13 x 1 1/2 hex head stainless steel $1.67 4 ships same day
18 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
19 999-0190 Nut 1/4-20 hex plain finish $0.99 1 ships same day
20 999-0262 Nut 1/2-13 nylon insert jam lock zinc plated $0.99 4 ships same day
21 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel $0.99 2 ships same day
22 999-0200 Bolt 1/2-13 x 1 1/4 hex head $3.45 2 ships same day
23 999-0815 Screw 1/2-13 x 3/4 hex hot dipped galvanized $0.99 1 usually ships 1-5 days
24 172-0550 Washer 33/64 x 3/4 flat $10.85 6 usually ships 17-28 days
25 272-7427 Washer 3/4 x 1 1/4 x 1/8 flat $10.85 3 usually ships 17-28 days
27 999-0430 Nut 5/16-18 hex jam plain finish $0.99 1 ships same day
28 999-0971 Nut 1/4-20 jam stainless steel $0.99 1 ships same day
29 272-3950 Hinge weldment $176.52 1 usually ships 1-5 days
30 272-3951 Pivot block $98.68 1 usually ships 1-5 days
31 272-3952 Upper side broom arm $97.09 1 usually ships 1-5 days
32 272-8609 Bearing $13.76 3 usually ships 1-5 days
33 272-3828 Sleeve bearing $15.48 2 usually ships 1-5 days
34 272-3953 Left hand side broom bracket $133.53 1 usually ships 1-5 days
35 272-3954 Lower side broom arm $93.46 1 usually ships 1-5 days
36 172-0072 Bushing $44.58 2 usually ships 17-28 days
37 172-0139 Bushing $13.76 1 usually ships 1-5 days
38 172-0024 Bushing $13.76 3 usually ships 17-28 days
39 172-2341 Extension spring $13.76 1 usually ships 17-28 days
