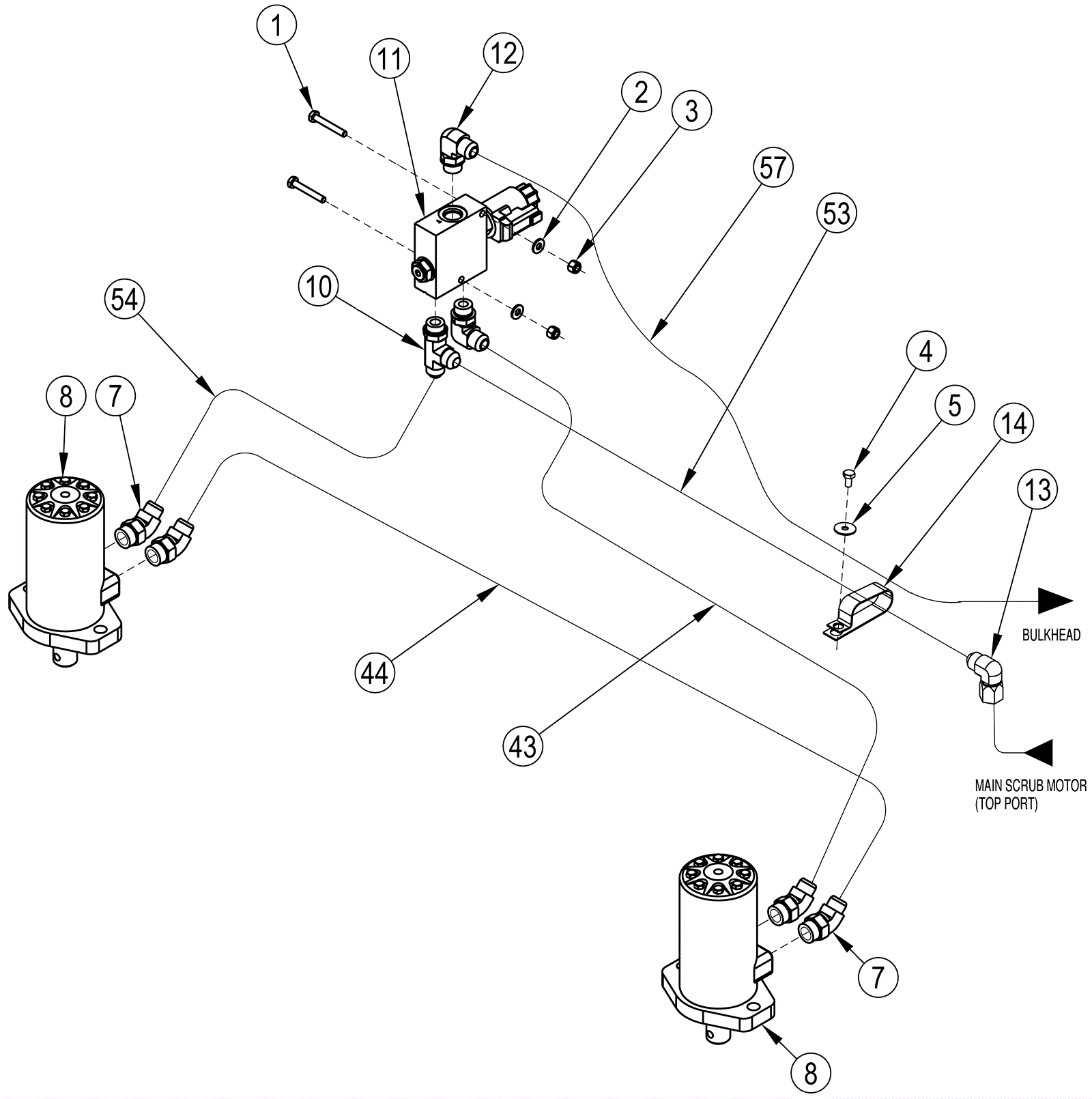

SC8000 Dual Side Broom Hydraulic Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0394 Bolt 1/4-20 x 1 3/4 hex head grade 5 zinc plated $0.99 2 ships same day
2 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
3 999-0190 Nut 1/4-20 hex plain finish $0.99 2 ships same day
4 272-9727 Screw 1/4-20 x 1/2 hex head lock $10.90 1 usually ships 1-5 days
5 172-0553 Washer 17/64 x 1/16 flat $9.60 1 usually ships 16-41 days
7 272-3943 45 degree elbow $68.27 4 usually ships 1-5 days
8a 272-7399 Hydraulic motor $1,193.24 2 usually ships 1-5 days
8b 272-3060 Seal kit $264.47 1 usually ships 1-5 days
8c 272-7973 Main broom motor seal kit $264.47 1 usually ships 1-5 days
10 272-3182 Connector tee $46.62 1 usually ships 1-5 days
11a 272-7401 Solenoid valve motor $962.84 1 usually ships 1-5 days
11b 272-3854 Cartridge $169.96 1 usually ships 16-41 days
11c 272-3855 Replacement coil $88.61 1 usually ships 1-5 days
11d 272-3856 Replacement check valve $50.59 1 usually ships 1-5 days
11e 272-7962 Seal kit $17.68 1 usually ships 16-41 days
11f 272-3857 Seal kit $15.00 1 usually ships 1-5 days
12 272-7937 90 degree elbow $42.65 2 usually ships 1-5 days
13 272-3860 90 degree elbow with nut $39.46 1 usually ships 1-5 days
14 272-7769 3/4 inch double wire clamp $10.90 1 usually ships 1-5 days
43 272-3944 Hose assembly $106.29 1 usually ships 1-5 days
44 272-7400 Hose assembly $105.02 1 usually ships 1-5 days
53 272-3866 Hose assembly $66.98 1 usually ships 1-5 days
54 272-3945 Hose assembly $72.23 1 usually ships 1-5 days
57 272-3867 Hose assembly $93.87 1 usually ships 1-5 days
