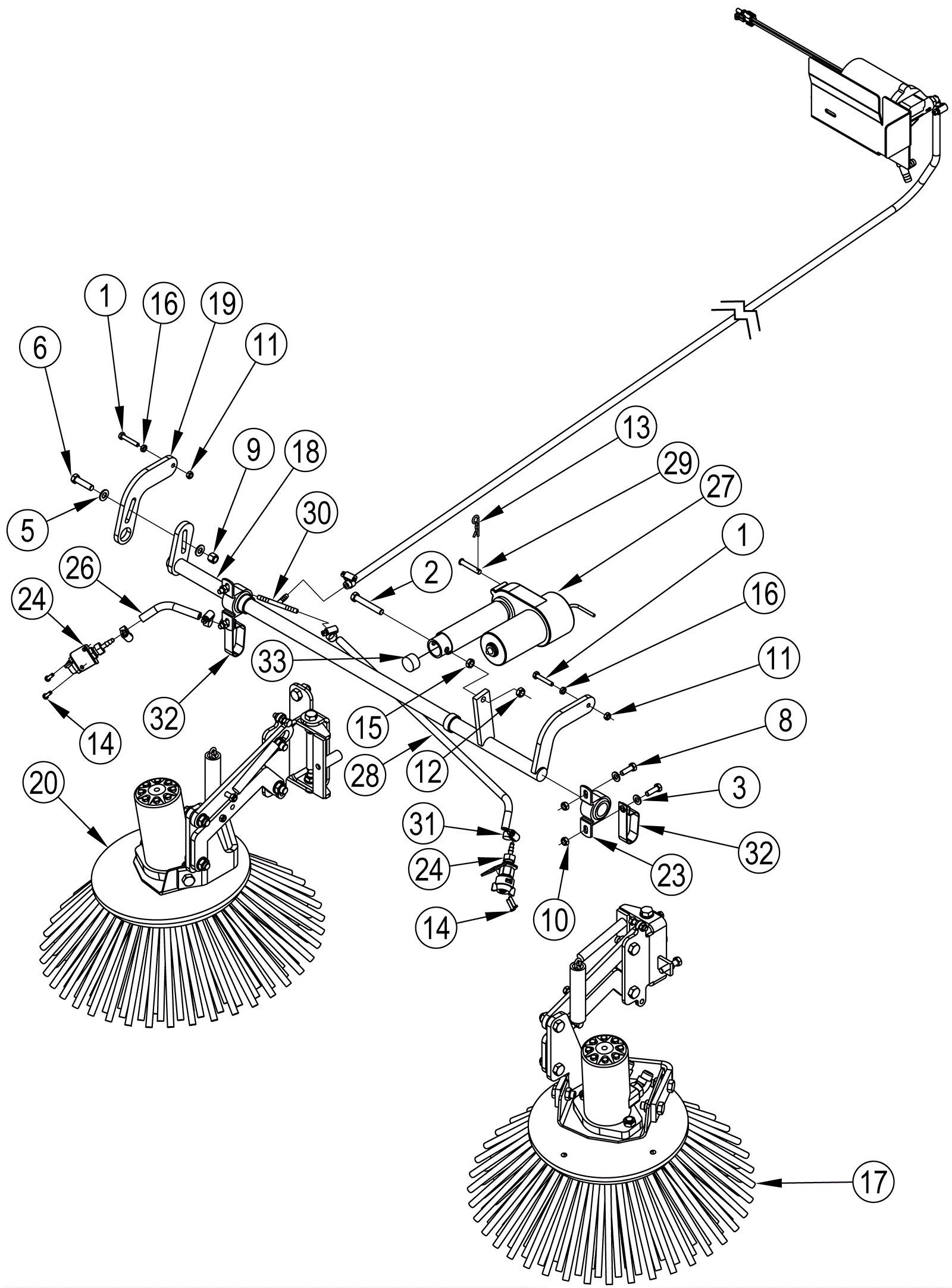

SC8000 Dual Side Broom Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-1260 Screw 1/4-20 x 1 1/2 hex cap stainless steel $0.99 2 ships same day
2 999-0390 Bolt 3/8-16 x 2 1/2 hex hd grade 5 zinc plated $1.19 1 ships same day
3 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
5 999-0120 Washer 3/8 SAE flat $0.99 2 ships same day
6 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel $7.25 1 ships same day
8 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 4 ships same day
9 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 1 ships same day
10 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
11 999-0609 Nut 1/4-20 hex stainless steel $0.99 2 ships same day
12 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated $0.99 1 ships same day
13 272-9987 Cotter pin $9.13 1 usually ships 1-5 days
14 999-0898 Screw 10-16 x 3/4 pan head phillips stainless steel type B $0.99 4 ships same day
15 999-0247 Nut 3/8-16 hex jam plain finish $0.99 1 ships same day
16 999-0971 Nut 1/4-20 jam stainless steel $0.99 2 ships same day
17 272-3935 Left hand side broom assembly $2,143.60 1 usually ships 1-5 days
18 272-3936 Side broom lift weldment $275.91 1 usually ships 1-5 days
19 272-3937 Lever $37.05 1 usually ships 1-5 days
20a 272-3938 Right hand side broom assembly $2,067.35 1 usually ships 1-5 days
20b 272-3814 Side scrub harness $176.52 1 usually ships 1-5 days
23 272-3939 Pillow block bearing $108.94 2 usually ships 1-5 days
24 272-3940 Nozzle assembly $268.38 2 usually ships 1-5 days
26 172-1335 Hose $12.31 1 usually ships 17-28 days
27 272-3941 Actuator motor $674.08 1 usually ships 1-5 days
28 272-9367 Hose 1/4 x 25 inches $12.31 1 usually ships 17-28 days
29 172-6089 Clevis pin $52.67 1 usually ships 1-5 days
30 272-7496 Barb hose tee $10.85 1 usually ships 1-5 days
31 997-2001 Hose clamp $2.42 4 ships same day
32 272-7769 3/4 inch double wire clamp $12.31 2 usually ships 1-5 days
33 272-3942 Foam seal $12.31 1 usually ships 1-5 days
