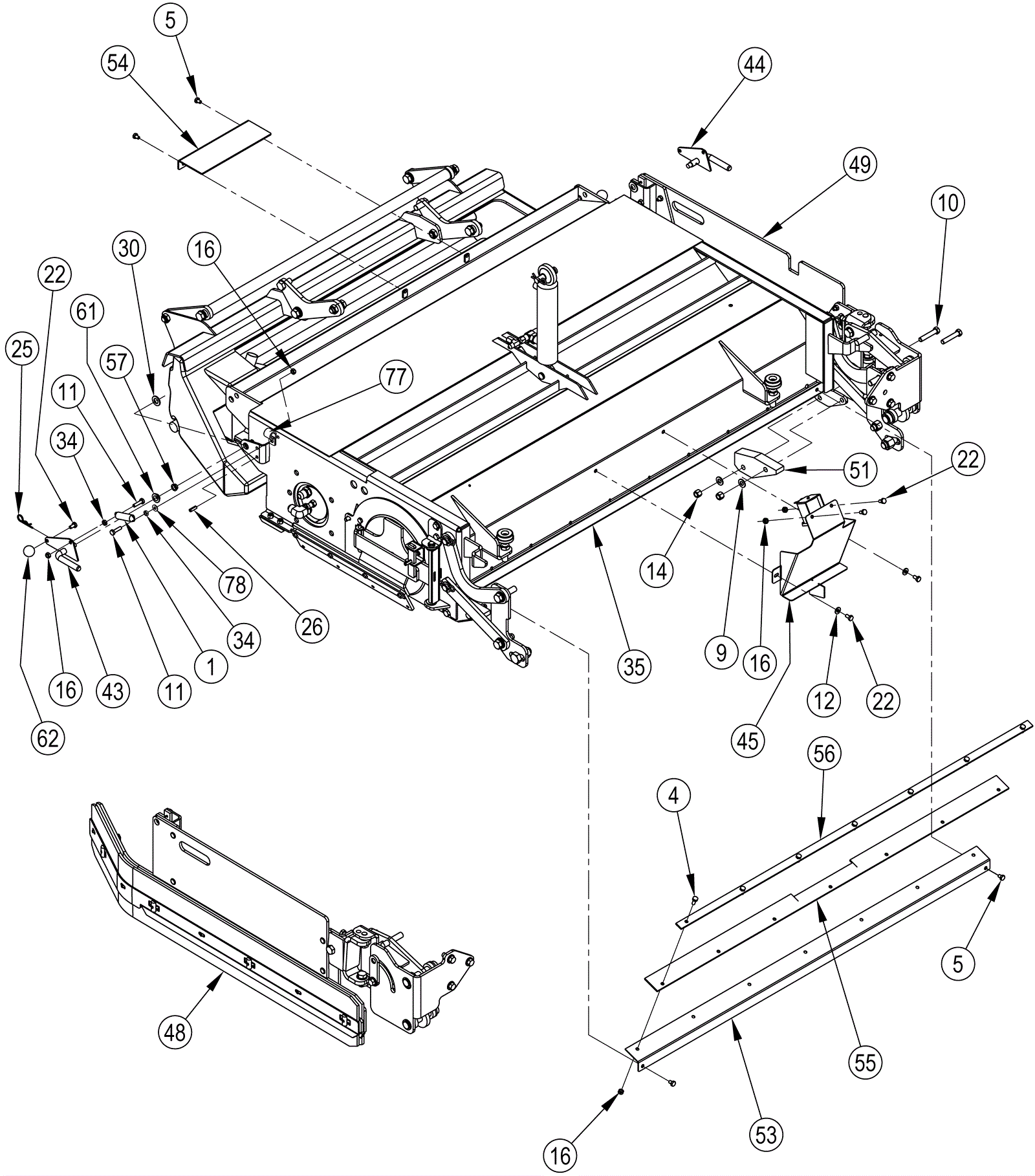

SC8000 Outer Skirt Assembly

#PartDescriptionPriceReqNotesAvailability
1 272-2961 Spring $38.04 2 usually ships 1-5 days
4 999-0633 Bolt 1/4-20 x 5/8 hex head stainless steel $0.99 7 ships same day
5 999-1532 Screw 1/4-20 x 1/2 hex head stainless steel $0.99 10 ships same day
9 999-9128 Washer 3/8 SAE flat stainless steel $2.11 4 ships same day
10 999-0550 Bolt 3/8-16 x 2 hex head stainless steel $2.95 4 ships same day
12 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
14 999-1482 Nut 3/8-16 nylon lock stainless steel $1.06 4 ships same day
16 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 12 ships same day
22 272-6383 Screw 1/4-20 x 3/4 hex loc stainless steel $8.20 6 usually ships 1-5 days
25 997-2511 Cotter pin $0.99 2 ships same day
26 172-4386 Spring pin $10.90 2 usually ships 1-5 days
30 172-4548 Washer 33/64 x 15/16 x 1/16 flat $5.28 2 ships same day
34 999-0971 Nut 1/4-20 jam stainless steel $0.99 3 ships same day
35 272-3870 Brush housing weldment $2,914.26 1 usually ships 16-41 days
43 272-3877 Right hand latch weldment $69.56 1 usually ships 1-5 days
44 272-3878 Left hand latch weldment $69.56 1 usually ships 1-5 days
45 272-3879 Diverter weldment $72.23 1 usually ships 1-5 days
48 272-3882 Right hand skirt assembly $1,762.39 1 usually ships 1-5 days
49 272-3883 Left hand skirt assembly $1,830.00 1 usually ships 1-5 days
51 272-3885 Skid $43.93 2 usually ships 1-5 days
53 272-3898 Trough shield $39.46 1 usually ships 1-5 days
54 272-3887 Plate $23.05 1 usually ships 1-5 days
55 272-3888 Mud shield blade $12.03 1 usually ships 1-5 days
56 272-3889 Strap $30.22 1 usually ships 1-5 days
57 272-3890 Flange bearing $13.70 2 usually ships 1-5 days
61 272-9481 Flanged bearing $13.70 2 usually ships 16-41 days
62 172-2674 Knob $10.90 2 usually ships 16-41 days
