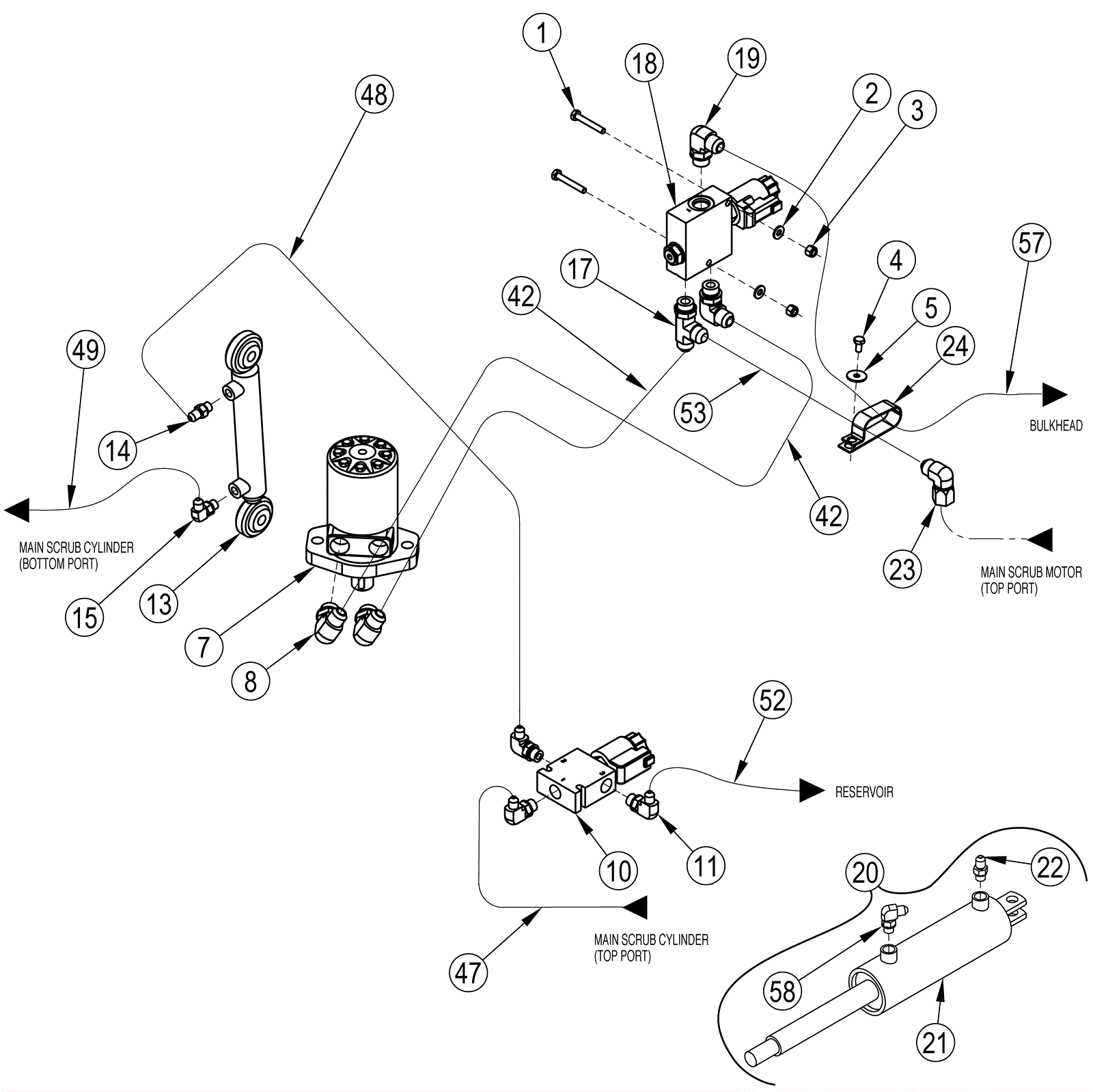

SC8000 Right Scrub Hydraulics Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0394 Bolt 1/4-20 x 1 3/4 hex head grade 5 zinc plated $0.99 2 ships same day
2 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
3 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
4 272-9727 Screw 1/4-20 x 1/2 hex head lock $11.99 1 usually ships 1-5 days
5 172-0553 Washer 17/64 x 1/16 flat $10.56 1 usually ships 16-41 days
7a 272-3848 Hydraulic motor $1,192.82 1 usually ships 1-5 days
7b 272-3060 Seal kit $290.92 1 usually ships 1-5 days
7c 272-7973 Main broom motor seal kit $290.92 1 usually ships 1-5 days
8 272-3849 Elbow $49.86 2 usually ships 1-5 days
10a 272-3850 Solenoid valve $410.09 1 usually ships 1-5 days
10b 272-3851 Replacement cartridge $179.06 1 usually ships 1-5 days
10c 272-7959 Coil $86.65 1 usually ships 1-5 days
10d 272-7964 Seal kit $30.28 1 usually ships 1-5 days
11 272-3151 90 degree elbow $57.08 3 usually ships 1-5 days
13a 272-3852 Hydraulic cylinder (OBSOLETE) $454.91 1 usually ships 1-5 days
13b 272-3853 Seal kit $78.05 1 usually ships 1-5 days
14 272-3192 Connector $12.83 1 usually ships 1-5 days
15 272-2983 90 degree elbow $33.96 1 usually ships 1-5 days
17 272-3182 Connector tee $51.28 1 usually ships 1-5 days
18a 272-7401 Solenoid valve motor $1,059.12 1 usually ships 1-5 days
18b 272-3854 Cartridge $186.96 1 usually ships 16-41 days
18c 272-3855 Replacement coil $97.47 1 usually ships 1-5 days
18d 272-3856 Replacement check valve $55.65 1 usually ships 1-5 days
18e 272-7962 Seal kit $19.45 1 usually ships 16-41 days
18f 272-3857 Seal kit $16.50 1 usually ships 1-5 days
19 272-7937 90 degree elbow $46.92 2 usually ships 1-5 days
20 272-3858 Steer cylinder assembly $492.38 1 usually ships 1-5 days
21a 272-3859 Hydraulic cylinder 2 x 5 $432.49 1 (includes 21-22 and 58) usually ships 1-5 days
21b 272-7932 Seal kit $79.45 1 usually ships 1-5 days
22 272-3192 Connector $12.83 1 usually ships 1-5 days
23 272-3860 90 degree elbow with nut $43.41 1 usually ships 1-5 days
24 272-7769 3/4 inch double wire clamp $11.99 1 usually ships 1-5 days
42 272-3861 Hose assembly $75.10 2 usually ships 16-41 days
47 272-3862 Hose assembly $58.48 1 usually ships 1-5 days
48 272-3863 Hose assembly $52.69 1 usually ships 1-5 days
49 272-3864 Hose assembly $65.65 1 usually ships 1-5 days
52 272-3865 Hose assembly $67.20 1 usually ships 1-5 days
53 272-3866 Hose assembly $73.68 1 usually ships 1-5 days
57 272-3867 Hose assembly $103.26 1 usually ships 1-5 days
58 272-2983 90 degree elbow $33.96 1 usually ships 1-5 days
