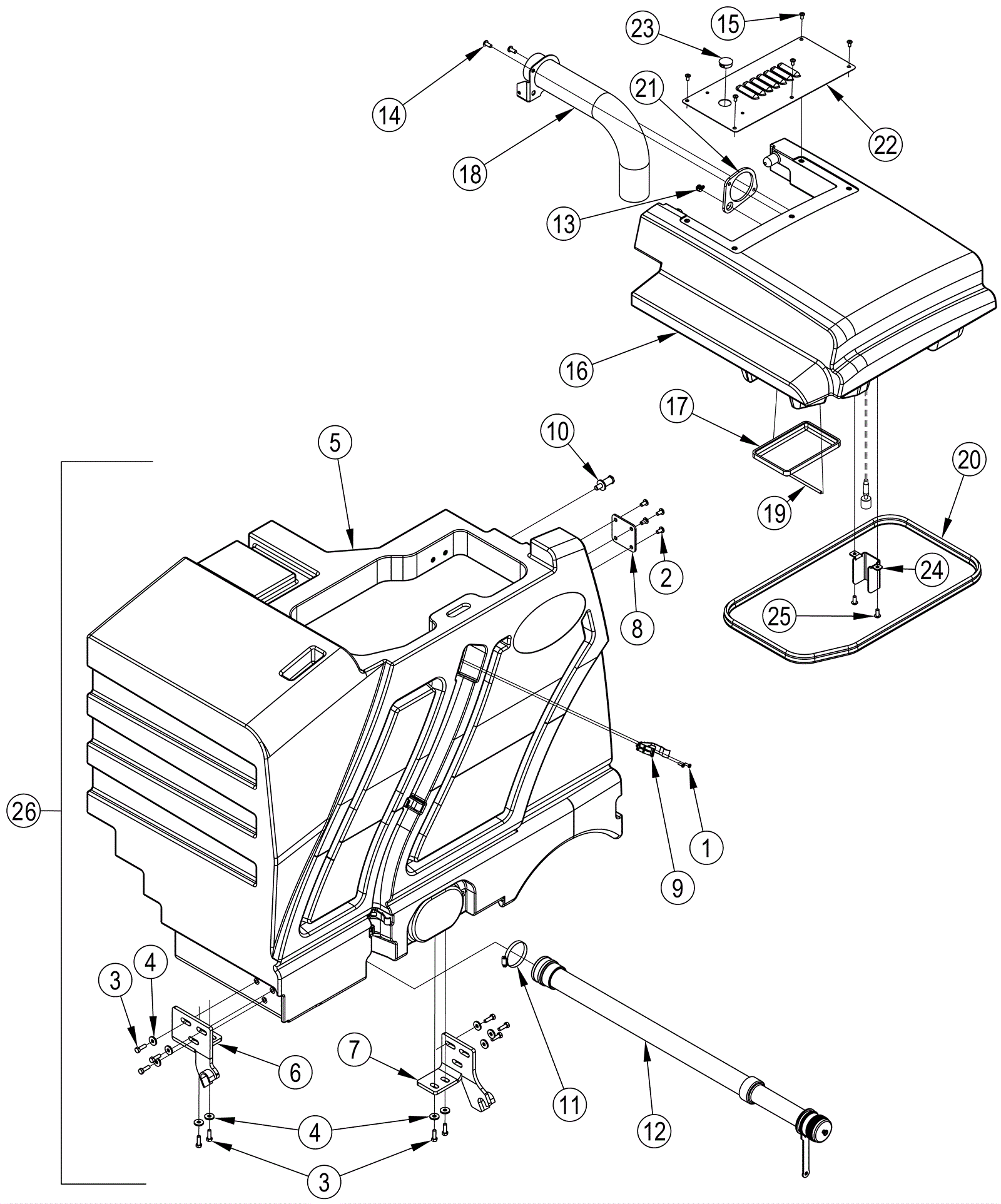

SC8000 Recovery Tank Lid Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel $1.54 6 ships same day
2 999-1454 Bolt 5/16-18 x 5/8 pan head stainless steel $2.00 4 usually ships 1-5 days
3 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated $0.99 10 ships same day
4 172-2067 Washer 11/32 x 1/8 flat $10.90 10 usually ships 16-41 days
5 272-3799 Recovery tank $1,194.08 1 usually ships 1-5 days
6 272-3800 Front pivot weldment $87.35 1 usually ships 1-5 days
7 272-3801 Rear pivot weldment $89.90 1 usually ships 1-5 days
8 272-3802 Tether mount weldment $35.48 1 usually ships 1-5 days
9 172-3169 Plastic clamp $23.05 3 usually ships 16-41 days
10 272-3803 Slam lock pin $45.33 1 usually ships 1-5 days
11 272-9977 #36 hose clamp SAE $8.00 1 usually ships 1-5 days
12a 272-7220 Drain hose $69.56 1 usually ships 16-41 days
12b 272-9273 Drain hose extension $93.87 1 usually ships 16-41 days
13 272-3805 Strain relief $10.90 1 usually ships 1-5 days
14 999-9006 Screw 5/16-18 x 3/4 pan head phillips stainless steel $1.44 2 usually ships 11-24 days
15 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 5 ships same day
16 272-3806 Recovery tank cover $372.81 1 usually ships 1-5 days
17 272-3807 Recovery tank screen $62.38 1 usually ships 1-5 days
18 272-3808 Tube weldment $549.42 1 usually ships 1-5 days
19 272-3809 Filter pin $10.90 1 usually ships 1-5 days
20 272-3810 Gasket $108.99 1 usually ships 1-5 days
21 272-3811 Gasket $9.60 1 usually ships 1-5 days
22 272-3812 Cover $49.18 1 usually ships 1-5 days
23 272-9868 Button plug $9.60 1 ships same day
24 272-3813 Switch shield $38.04 1 usually ships 1-5 days
25 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 2 ships same day
26 272-3791 Recovery tank assembly $1,897.50 1 (includes 1-12) usually ships 1-5 days
