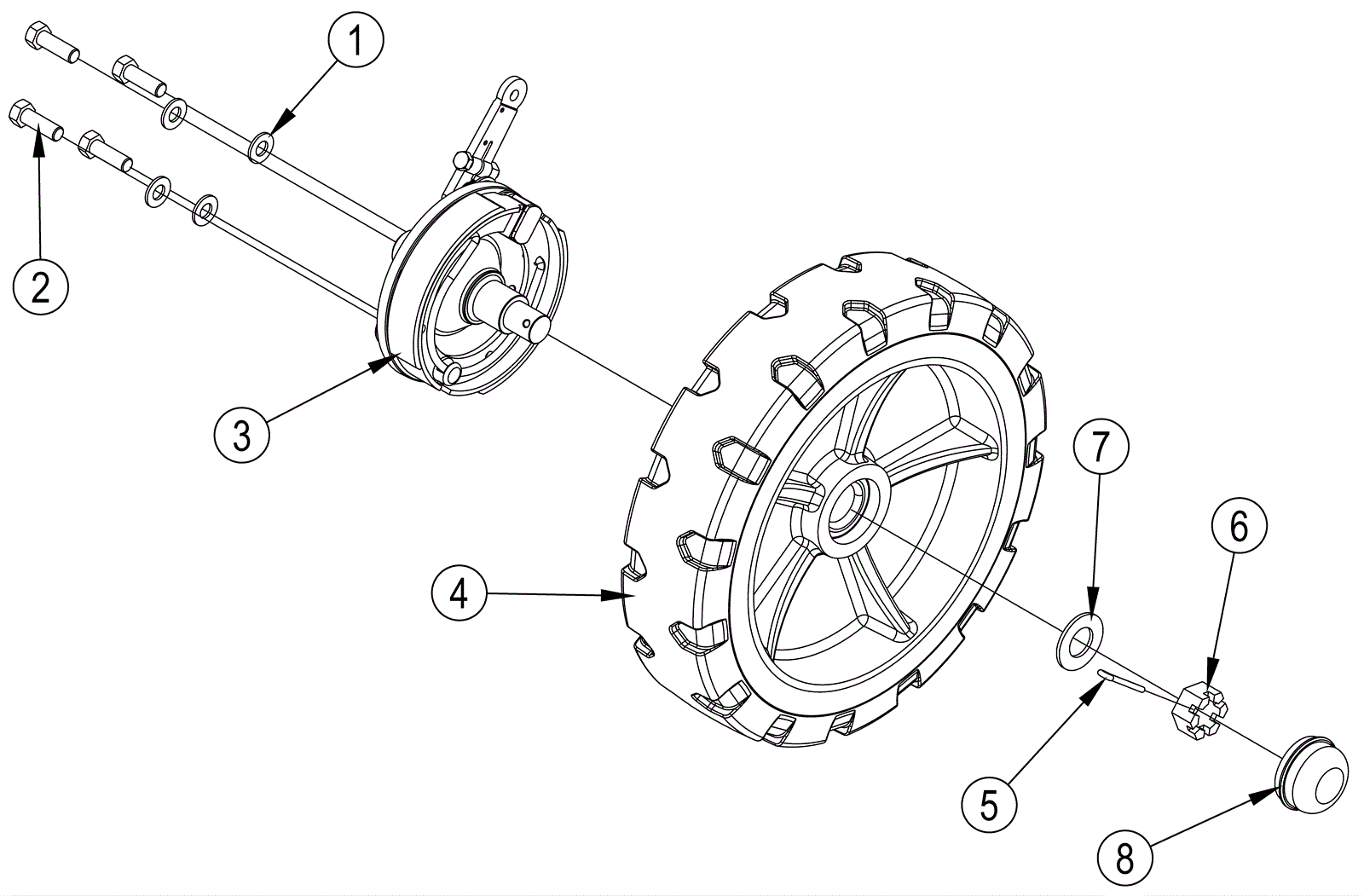

SC8000 Rear Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0114 Washer 1/2 SAE flat $0.99 8 ships same day
2 999-1889 Screw 1/2-20 x 1 1/2 hex head plain finish $2.77 8 usually ships 1-5 days
3a 272-3776 Spindle brake assembly $576.33 2 (includes 3b and 3c) usually ships 1-5 days
3b 272-3777 Brake shoe kit $441.08 2 usually ships 1-5 days
3c 272-3778 Brake spring kit $64.29 1 usually ships 1-5 days
4a 272-3779 Mold-on wheel 16.2 x 4 $745.63 2 (includes 4b and 4c) usually ships 1-5 days
4b 272-3780 Wheel bearing $196.98 1 usually ships 1-5 days
4c 272-3781 Snap ring $9.60 1 usually ships 1-5 days
5 170-7716 Cotter pin $10.90 2 usually ships 1-5 days
6 999-1890 Nut 1-14 slotted $8.79 2 usually ships 1-5 days
7 472-3629 WSH-FLT 18-8 SS-1.062X2X.13 $5.50 2 usually ships 16-41 days
8 272-3783 Grease cap $31.51 2 usually ships 1-5 days
