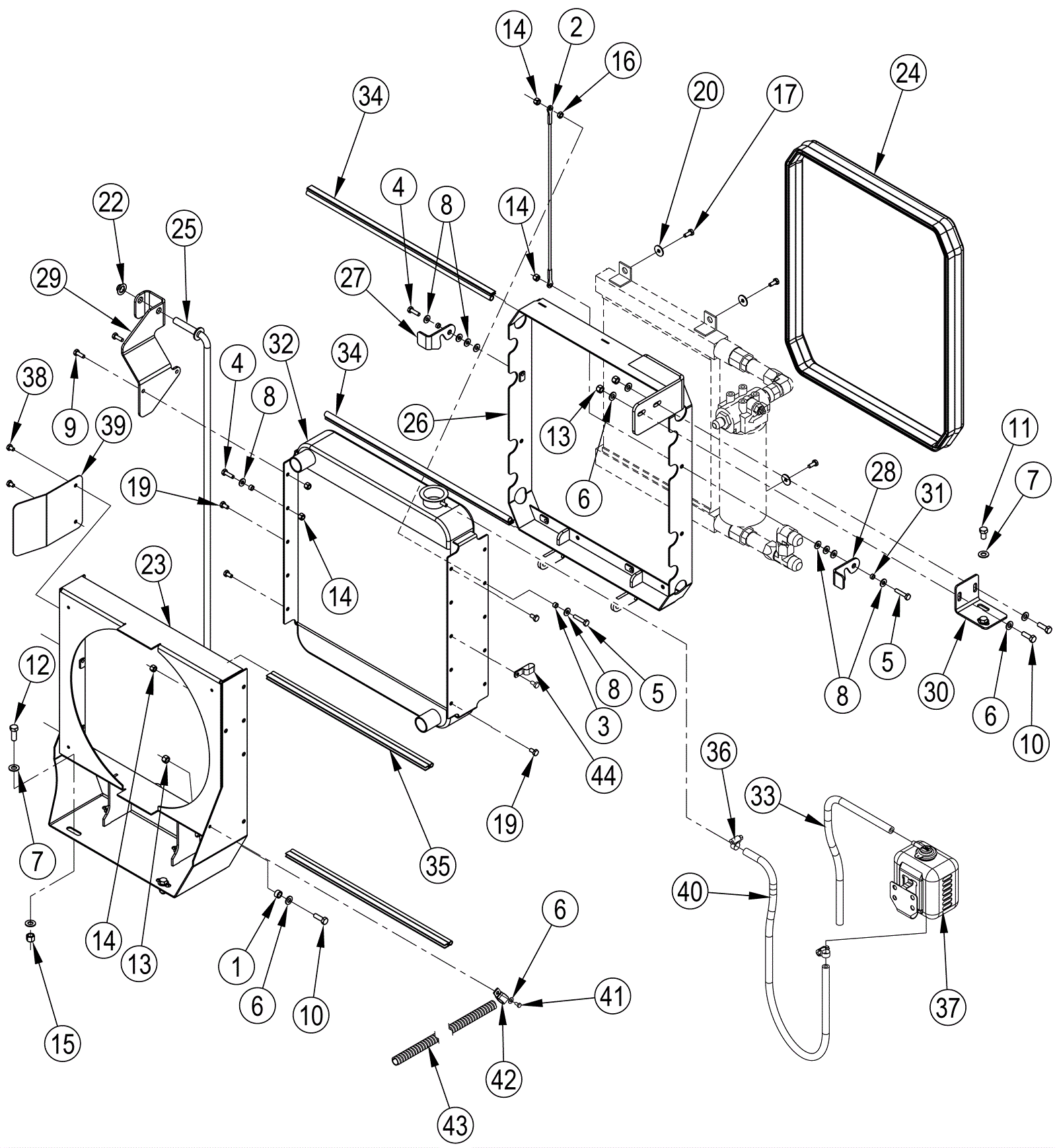

SC8000 Radiator Assembly

#PartDescriptionPriceReqNotesAvailability
1 172-2631 Bushing $32.79 2 usually ships 1-5 days
2 272-7983 Cable $10.90 1 usually ships 1-5 days
3 172-0186 Bushing $12.18 2 usually ships 1-5 days
4 999-0822 Screw 1/4-20 x 7/8 hex head plain finish $0.99 2 ships same day
5 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated $0.99 2 ships same day
6 999-0024 Washer 5/16 flat stainless steel $1.34 6 ships same day
7 999-0120 Washer 3/8 SAE flat $0.99 10 ships same day
8 999-0123 Washer 1/4 SAE flat zinc plated $0.99 10 ships same day
9 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 2 ships same day
10 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 4 ships same day
11 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 2 ships same day
12 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 4 ships same day
14 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 5 ships same day
15 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 4 ships same day
16 999-0190 Nut 1/4-20 hex plain finish $0.99 1 ships same day
17 272-1465 Screw 1/4-20 X 5/8 hex head lock $10.90 4 usually ships 1-5 days
19 272-9727 Screw 1/4-20 x 1/2 hex head lock $10.90 5 usually ships 1-5 days
20 172-0553 Washer 17/64 x 1/16 flat $9.60 4 usually ships 16-41 days
22 172-4017 1/2 inch push cap $9.61 1 usually ships 1-5 days
23 272-7984 Fan shroud weldment $431.17 1 usually ships 1-5 days
24 272-7985 Radiator gasket $40.72 1 usually ships 1-5 days
25 272-7986 Prop rod weldment $74.79 1 usually ships 1-5 days
26 272-7987 Oil cooler mount weldment $244.24 1 usually ships 1-5 days
27 272-7988 Right hand oil cooler latch $19.96 1 usually ships 1-5 days
28 272-7989 Left hand oil cooler latch $10.90 1 usually ships 16-41 days
29 272-7990 Hood prop bracket $47.90 1 usually ships 1-5 days
30 272-7991 Oil filter bracket $24.47 1 usually ships 1-5 days
31 172-2657 Bushing $30.22 2 usually ships 1-5 days
32a 272-7992 Radiator $1,491.27 1 usually ships 16-41 days
32b 272-7993 Radiator cap $72.23 1 usually ships 1-5 days
33 272-7994 20 inch hose $20.37 1 usually ships 1-5 days
34 272-7995 Raw seal trim $19.09 2 usually ships 1-5 days
35 472-9102 GASKET $28.94 2 usually ships 16-41 days
36 997-2001 Hose clamp $2.42 2 ships same day
37 272-7997 Overflow bottle assembly $80.05 1 usually ships 1-5 days
39 272-7998 Shield plate $16.27 1 usually ships 1-5 days
40 272-7999 22 inch hose $43.93 1 usually ships 1-5 days
41 272-9677 Screw 1/4-20 x 1/2 hex head $10.90 1 usually ships 1-5 days
42 272-1613 P clamp $9.60 1 usually ships 1-5 days
43 272-3774 3/4 inch conduit (black) $38.04 1 usually ships 1-5 days
44 272-3775 Double clamp $12.18 1 usually ships 1-5 days
