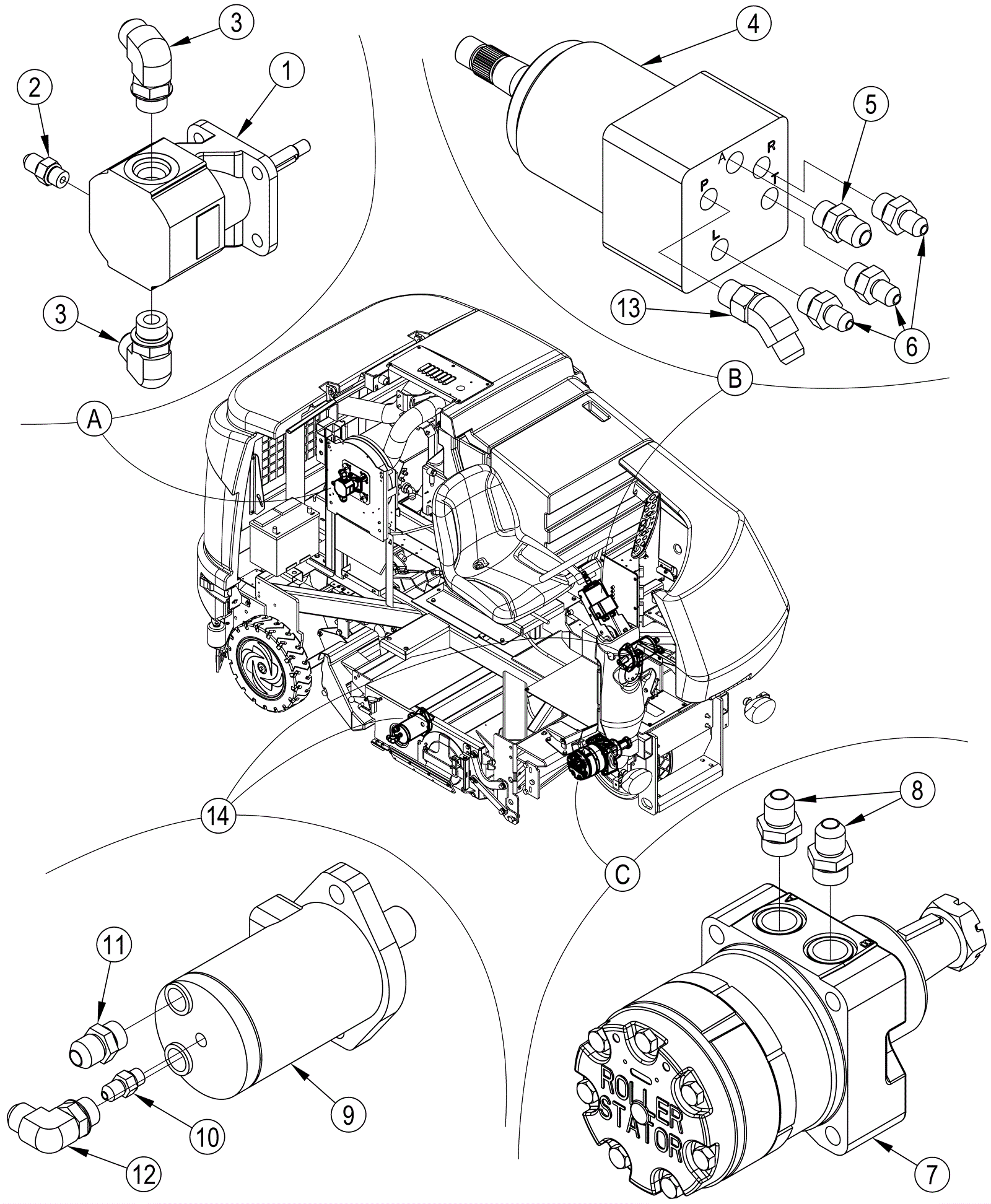

SC8000 Hydraulic Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1a 272-7121 Clamp $9.10 1 usually ships 1-5 days
1b 272-3099 Shaft seal $40.72 1 usually ships 16-41 days
2 272-3192 Connector $11.66 1 usually ships 1-5 days
3 272-7937 90 degree elbow $42.65 2 usually ships 1-5 days
4a 272-7968 Steering pump $1,491.27 1 usually ships 1-5 days
4b 272-7969 Steering pump seal kit $284.84 1 usually ships 1-5 days
5 272-3170 Connector $11.66 1 usually ships 16-41 days
6 272-3163 Connector $29.59 3 usually ships 1-5 days
7a 272-7970 Traction drive motor $1,247.16 1 usually ships 1-5 days
7b 272-7971 Traction drive motor seal kit $122.06 1 usually ships 16-41 days
8 272-3100 Connector $23.05 2 usually ships 1-5 days
9a 272-3059 Main broom motor $1,124.97 1 usually ships 1-5 days
9b 272-3060 Seal kit $264.47 1 usually ships 1-5 days
9c 272-7973 Main broom motor seal kit $264.47 1 usually ships 1-5 days
10 272-3192 Connector $11.66 1 usually ships 1-5 days
11 272-3186 Connector $10.24 1 usually ships 16-41 days
12 272-7937 90 degree elbow $42.65 1 usually ships 1-5 days
13 272-7950 45 degree elbow with nut $55.83 1 usually ships 1-5 days
14 272-7972 Hydraulic motor assembly $922.25 1 (includes 9-12) usually ships 1-5 days
