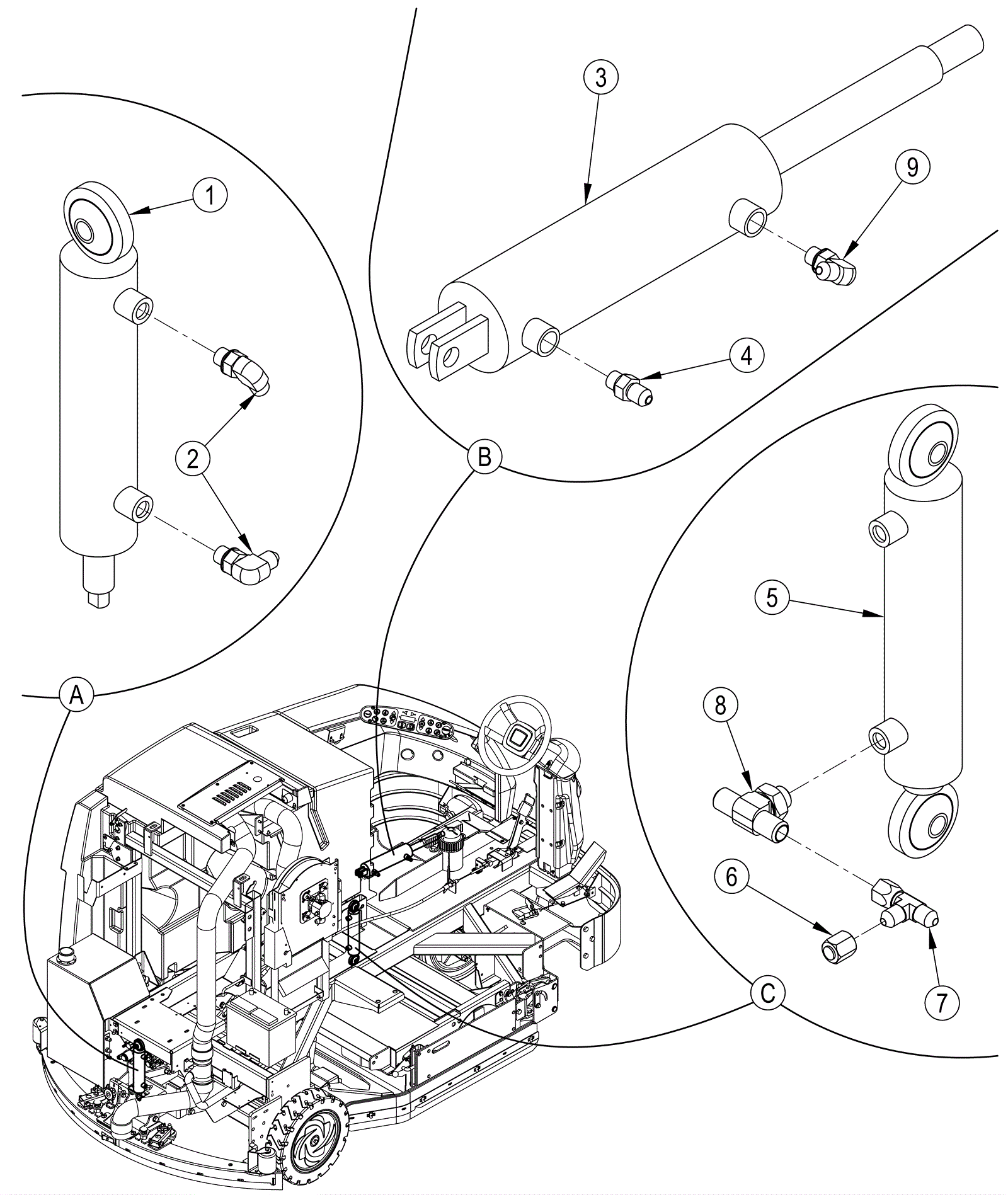

Hydraulic Cylinder Assembly

#PartDescriptionPriceReqNotesAvailability
1a 272-7929 Hydraulic cylinder 1 1/2 x 5 inch $332.08 1 usually ships 1-5 days
1b 272-7930 Seal kit $87.35 1 usually ships 1-5 days
2 272-2983 90 degree elbow $30.87 2 usually ships 1-5 days
3a 272-7931 Hydraulic cylinder 2 x 6 inch $366.27 1 usually ships 1-5 days
3b 272-7932 Seal kit $72.23 1 usually ships 1-5 days
4 272-3192 Connector $11.66 1 usually ships 1-5 days
5a 272-7933 Hydraulic cylinder 1 1/2 x 5 inch $372.81 1 usually ships 1-5 days
5b 272-7934 Seal kit $81.46 1 usually ships 1-5 days
6 272-7924 Flare tube end cap $9.60 1 usually ships 1-5 days
7 272-3154 Tee $35.48 1 usually ships 1-5 days
8 272-7935 Branch tee $30.22 1 usually ships 1-5 days
9 272-2983 90 degree elbow $30.87 1 usually ships 1-5 days
