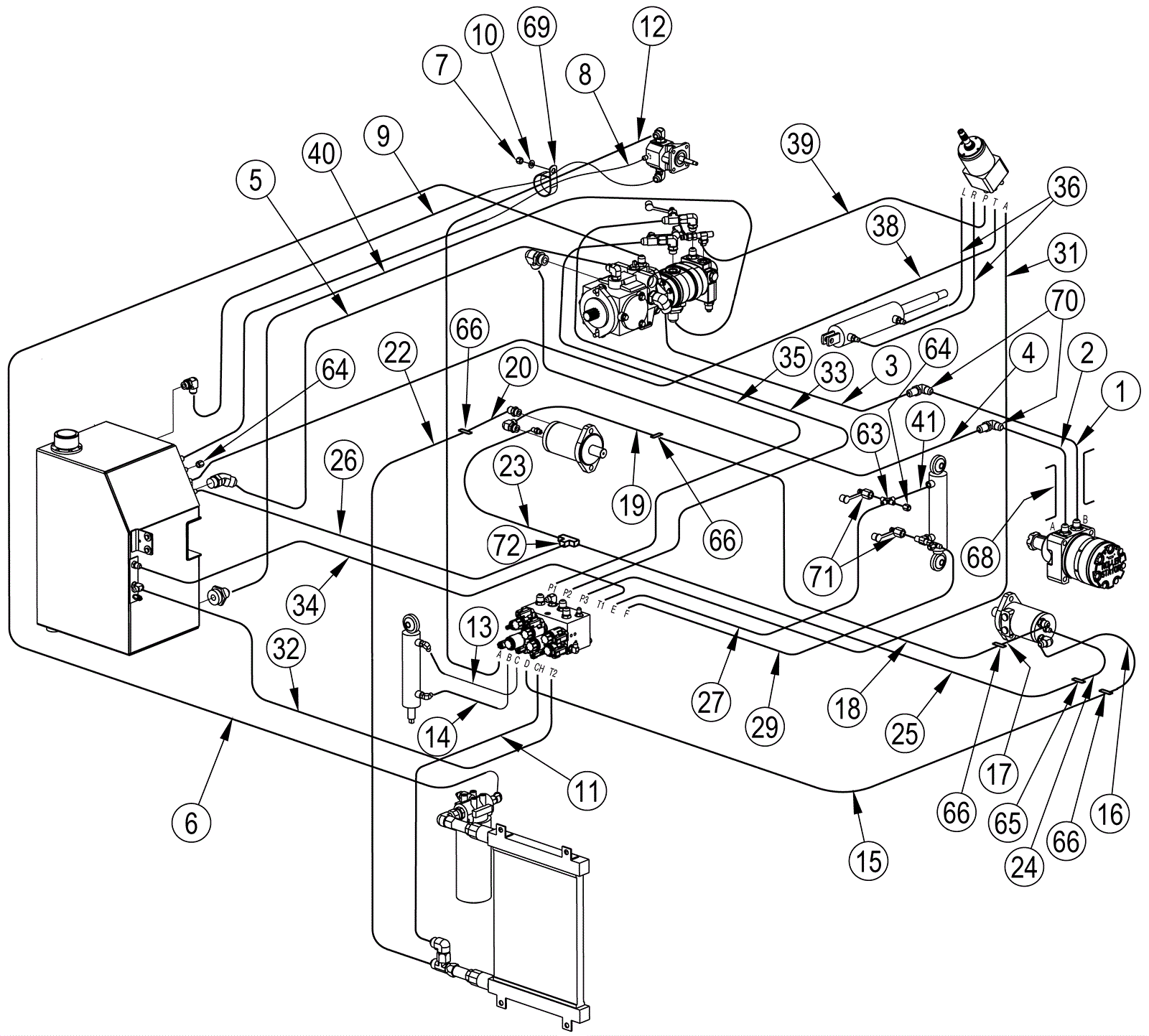

Hydraulic Assembly

#PartDescriptionPriceReqNotesAvailability
1 272-7888 Hose assembly $37.36 1 ships same day
2 272-7889 Hose assembly $88.99 1 usually ships 1-5 days
3 272-7890 Hose assembly $101.56 1 usually ships 1-5 days
4 272-7891 Hose assembly $98.68 1 usually ships 1-5 days
5 272-7892 Hose assembly $104.61 1 usually ships 1-5 days
6 272-7893 Hose assembly $103.00 1 usually ships 1-5 days
7 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 1 ships same day
8 272-7894 Hose assembly $84.49 1 usually ships 1-5 days
9 272-7895 Hose assembly $121.68 1 usually ships 1-5 days
10 999-0120 Washer 3/8 SAE flat $0.99 1 ships same day
11 272-7896 Hose assembly $123.12 1 usually ships 1-5 days
12 272-7897 Hose assembly $97.09 1 usually ships 1-5 days
13 272-7898 Hose assembly $57.16 1 usually ships 1-5 days
14 272-7899 Hose assembly $55.56 1 usually ships 1-5 days
15 272-7900 Hose assembly $107.50 1 usually ships 1-5 days
16 272-7901 Hose assembly $78.58 1 usually ships 1-5 days
17 272-7902 Hose assembly $75.67 1 usually ships 1-5 days
18 272-7903 Hose assembly $114.88 1 usually ships 1-5 days
19 272-7904 Hose assembly $84.49 1 usually ships 1-5 days
20 272-7905 Hose assembly $74.21 1 usually ships 1-5 days
22 272-7906 Hose assembly $176.52 1 usually ships 1-5 days
23 272-7907 Hose assembly $75.67 1 usually ships 1-5 days
24 272-7908 Hose assembly $64.53 1 usually ships 1-5 days
25 272-7909 Hose assembly $64.53 1 usually ships 1-5 days
26 272-7910 Hose assembly $69.01 1 usually ships 1-5 days
27 272-7911 Hose assembly $57.16 1 usually ships 1-5 days
29 272-7912 Hose assembly $86.09 1 usually ships 1-5 days
31 272-7913 Hydraulic hose assembly 3/8 x 109 inch $147.59 1 usually ships 1-5 days
32 272-7914 Hose assembly $61.49 1 usually ships 1-5 days
33 272-7915 Hydraulic hose assembly 1/2 x 45 inch $88.99 1 usually ships 1-5 days
34 272-7916 Hose assembly $60.06 1 usually ships 1-5 days
35 272-7917 Hydraulic hose assembly 3/8 x 45 inch $101.56 1 usually ships 1-5 days
36 272-7918 Hose assembly $72.63 2 usually ships 1-5 days
38 272-7919 Hose assembly $80.16 1 usually ships 1-5 days
39 272-7920 Hose assembly $87.54 1 usually ships 1-5 days
40 272-7921 Hose assembly $261.02 1 usually ships 1-5 days
41 272-7922 Hose assembly $40.08 1 usually ships 1-5 days
63 272-7923 Union cross $41.54 1 usually ships 1-5 days
64 272-7924 Flare tube end cap $10.85 2 usually ships 1-5 days
65 272-3137 Bulkhead locknut $12.31 2 usually ships 1-5 days
66a 272-3138 Bulkhead locknut $12.31 8 usually ships 1-5 days
66b 272-7928 Washer 3/4 shakeproof $12.31 4 usually ships 1-5 days
68 272-7925 Nylon sleeve $110.55 1 usually ships 1-5 days
69 272-2110 P clamp $5.39 1 usually ships 1-5 days
70a 272-3149 Union #8 elbow $31.10 2 usually ships 1-5 days
70b 272-3138 Bulkhead locknut $12.31 2 usually ships 1-5 days
71 272-7926 Test nipple $51.21 2 usually ships 1-5 days
72a 272-7927 Bulkhead run tee (OBSOLETE) $86.98 1 usually ships 1-5 days
72b 272-3137 Bulkhead locknut $12.31 2 usually ships 1-5 days
