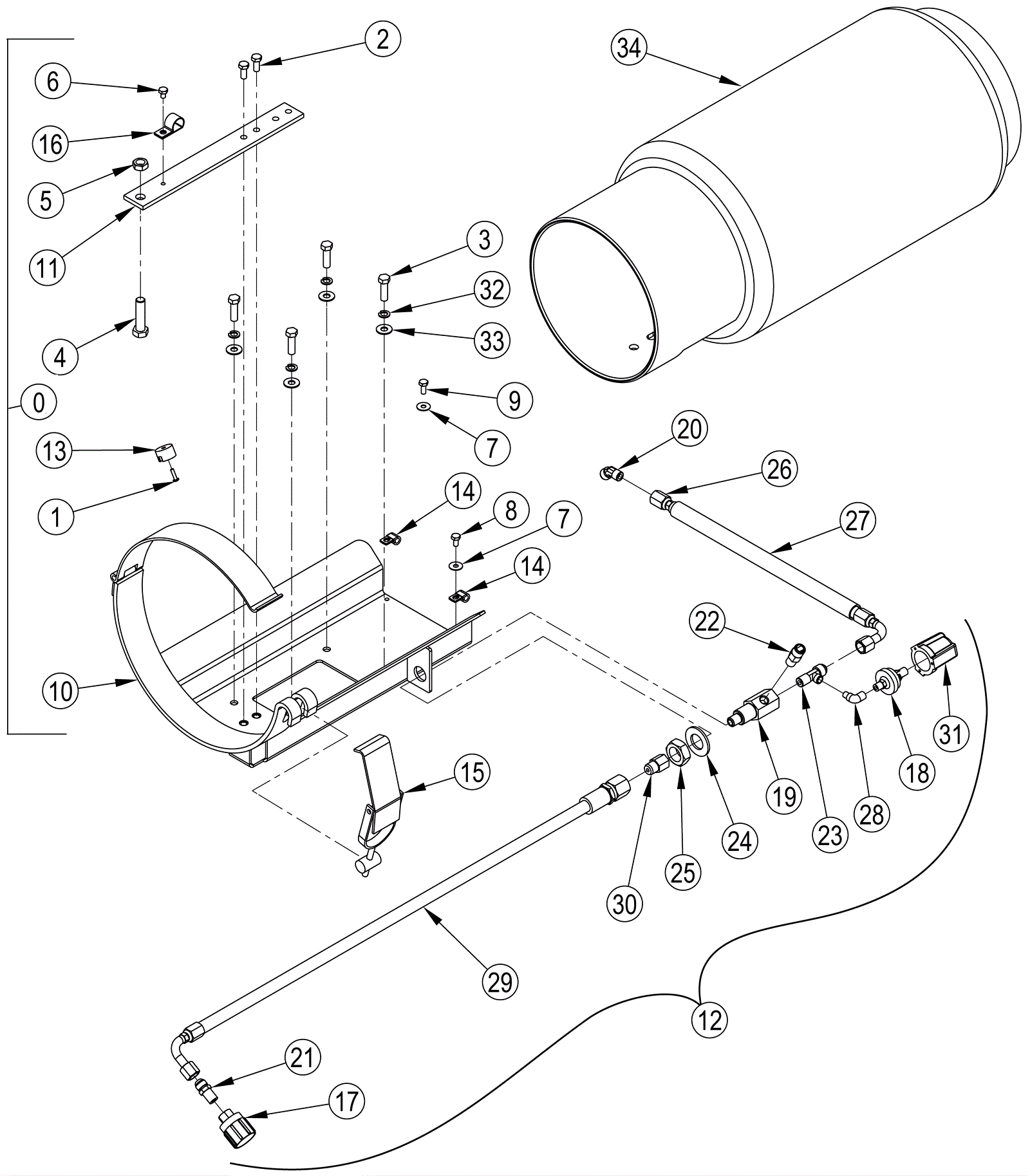

SC8000 Fuel Tank Assembly - LPG

#PartDescriptionPriceReqNotesAvailability
0 272-7875 LP tank bracket assembly $1,423.63 1 (includes 1-16 and 32, 33) usually ships 1-5 days
1 999-0358 Screw 8-32 x 5/8 pan head phillips stainless steel $0.99 1 ships same day
2 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel $0.99 2 ships same day
3 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel $7.56 4 ships same day
4 999-1888 Screw 1/2-13 x 2 1/2 hex head grade 5 zinc $2.56 1 usually ships 1-5 days
5 999-0118 Nut 1/2-13 nylon insert lock zinc plated $0.99 1 ships same day
7 172-0369 Washer 17/64 x 3/4 x 23/64 flat $10.90 2 usually ships 1-5 days
8 272-9677 Screw 1/4-20 x 1/2 hex head $10.90 1 usually ships 1-5 days
9 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 1 ships same day
10 272-7876 LP tank bracket weldment $217.20 1 usually ships 1-5 days
11 272-7877 Bar $30.22 1 usually ships 1-5 days
12 272-7878 LP filter assembly $1,165.71 1 (inlcudes 17-31) usually ships 1-5 days
13 272-7879 Magnet $66.98 1 usually ships 1-5 days
14 172-9530 Cable clamp $10.90 2 usually ships 1-5 days
15 272-7880 Toggle $70.95 1 usually ships 1-5 days
16 272-7881 Cable clamp $10.90 1 usually ships 1-5 days
17 272-7275 Female coupler $35.48 1 usually ships 16-41 days
18 272-3353 Switch N C Pressure $176.61 1 usually ships 1-5 days
19 272-3357 Bulkhead fitting $133.19 1 usually ships 1-5 days
20 272-3355 45 degree elbow, male $10.90 1 usually ships 16-41 days
21 272-7882 Male adapter (OBSOLETE) $10.68 1 usually ships 16-41 days
22 272-3356 1/4 NPT vent $72.23 1 usually ships 1-5 days
23 272-3337 Tee $43.93 1 usually ships 1-5 days
24 999-0187 Washer 1/2 flat plain finish $0.99 1 ships same day
25 172-4330 Nut 7/8-14 hex jam $9.60 1 usually ships 1-5 days
26 272-7883 LP hose assembly $210.68 1 usually ships 1-5 days
27 272-7884 Conduit $23.05 1 usually ships 1-5 days
28 272-2073 Elbow $9.60 1 usually ships 1-5 days
29 272-7885 LP hose assembly $386.64 1 usually ships 1-5 days
30 272-7886 45 degree SAE adapter $10.90 1 usually ships 1-5 days
31 272-7887 Dust boot $70.05 1 usually ships 1-5 days
32 170-6752 Washer 3/8 lock split plated $10.90 4 usually ships 1-5 days
33 999-0721 Washer 7/8 USS flat zinc plated $2.79 4 ships same day
34 272-3359 LP tank $881.50 1 usually ships 1-5 days
