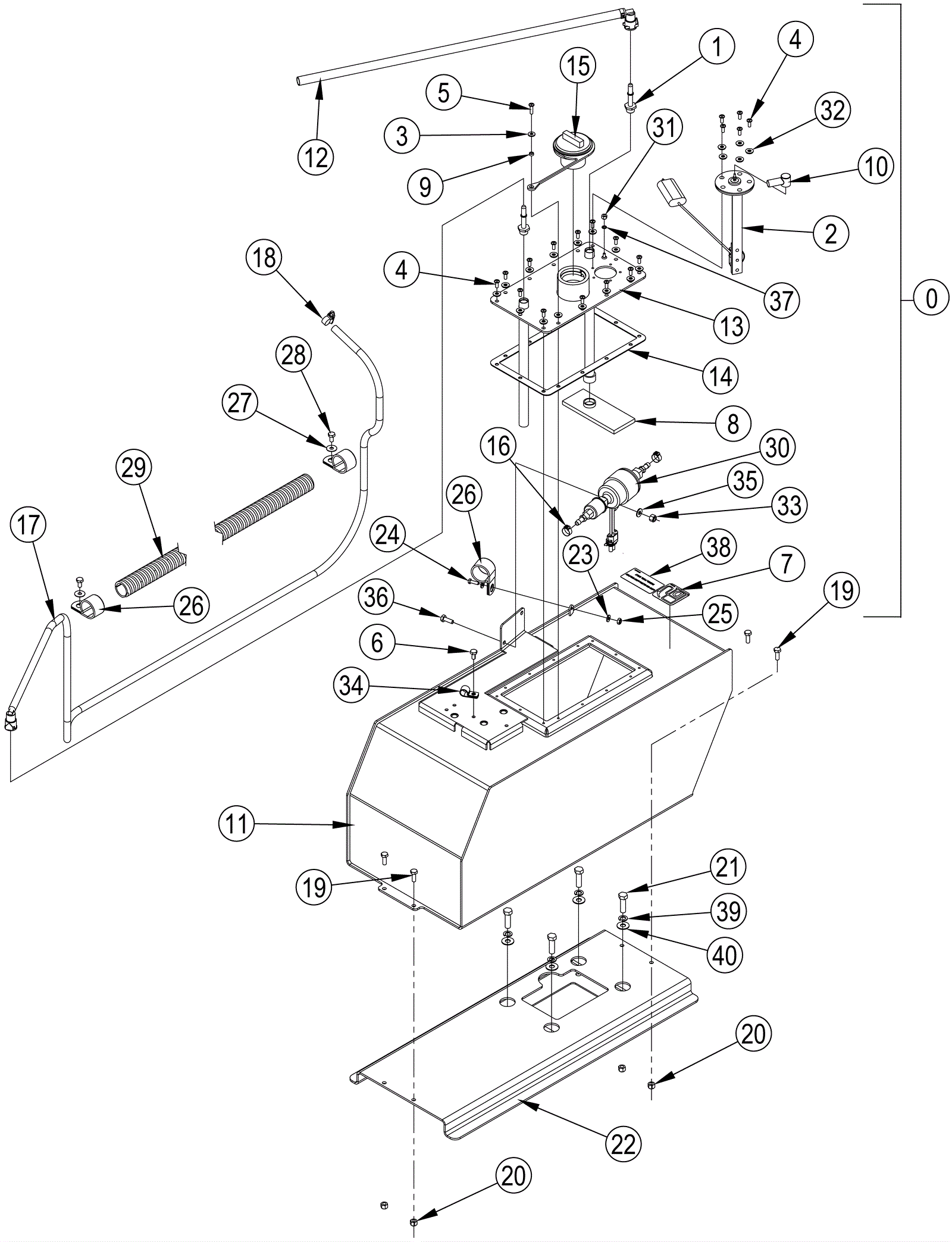

SC8000 Fuel Tank Assembly - Diesel

#PartDescriptionPriceReqNotesAvailability
0 472-4190 TANK DIESEL ASSY EU $2,643.14 1 (includes 1-16 and 31-38) usually ships 16-41 days
1 272-7862 Quick connect fitting $80.05 2 usually ships 1-5 days
2 272-3325 Fuel level sender $135.89 1 usually ships 16-41 days
3 999-1862 Washer #10 flat SAE stainless steel $0.99 1 ships same day
4 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 18 ships same day
5 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel $0.99 1 ships same day
6 272-9677 Screw 1/4-20 x 1/2 hex head $10.90 1 usually ships 1-5 days
7 172-5700 Diesel fuel decal $64.29 1 usually ships 1-5 days
8 272-3327 Strainer $38.04 1 usually ships 1-5 days
9 272-7863 Bushing $12.18 1 usually ships 1-5 days
10 172-2303 Rubber boot $12.18 1 usually ships 1-5 days
11 272-7864 Fuel tank weldment $1,694.77 1 usually ships 1-5 days
12 272-7865 Hose assembly $61.09 1 usually ships 1-5 days
13 272-7866 Cover plate weldment $549.42 1 usually ships 1-5 days
14 272-7867 Cover gasket $10.90 1 usually ships 1-5 days
15 272-7868 Fuel cap $30.22 1 usually ships 1-5 days
16 272-7869 Clamp $10.90 2 usually ships 1-5 days
17 272-7870 Fuel hose assembly $97.86 1 usually ships 1-5 days
18 997-2001 Hose clamp $2.42 1 ships same day
19 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 4 ships same day
20 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 4 ships same day
21 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel $7.56 4 ships same day
22 272-7871 Tank mount weldment $244.24 1 usually ships 1-5 days
23 999-1862 Washer #10 flat SAE stainless steel $0.99 2 ships same day
24 272-1473 Bolt 10-24 x 5/8 hex head $10.90 1 usually ships 1-5 days
25 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 1 ships same day
26 172-9261 P clamp $10.90 3 usually ships 1-5 days
27 172-0369 Washer 17/64 x 3/4 x 23/64 flat $10.90 2 usually ships 1-5 days
28 272-9677 Screw 1/4-20 x 1/2 hex head $10.90 2 usually ships 1-5 days
29 272-7872 Conduit hose $24.47 1 usually ships 1-5 days
30 272-7818 Electronic fuel pump $284.84 1 usually ships 1-5 days
31 999-1036 Nut 8-32 hex NTM nylon insert jam lock stainless steel $0.99 1 ships same day
32 172-2311 Washer 9/16 $10.90 19 usually ships 16-41 days
33 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 1 ships same day
34 172-2122 P clamp $10.90 1 usually ships 16-41 days
35 999-0123 Washer 1/4 SAE flat zinc plated $0.99 1 ships same day
36 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 1 ships same day
37 272-7873 Internal tooth locking washer with screw $10.90 1 usually ships 1-5 days
38 272-7874 Low sulfur diesel decal $10.90 1 usually ships 1-5 days
39 170-6752 Washer 3/8 lock split plated $10.90 4 usually ships 1-5 days
40 999-0721 Washer 7/8 USS flat zinc plated $2.79 4 ships same day
