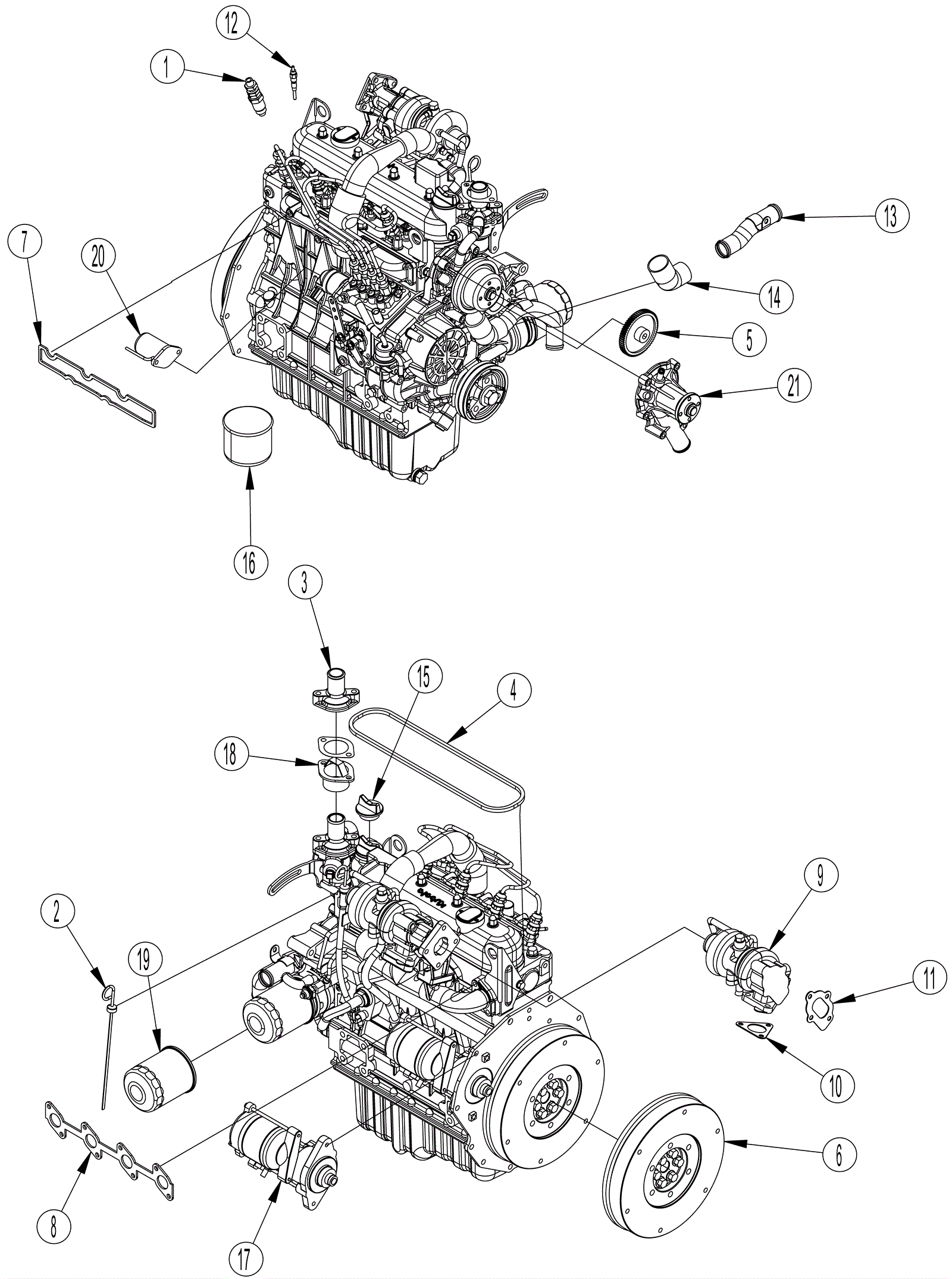

SC8000 Engine Base Assembly - Diesel

#PartDescriptionPriceReqNotesAvailability
1 272-7833 Injector $1,423.63 4 usually ships 1-5 days
2 272-7777 Dipstick $54.43 1 usually ships 1-5 days
3 272-7780 Thermostat cover $38.04 1 usually ships 1-5 days
4 272-7781 Valve cover gasket $31.51 1 usually ships 1-5 days
5 272-7834 Cam gear $603.21 1 usually ships 1-5 days
6 272-7835 Flywheel $1,626.50 1 usually ships 1-5 days
7 272-7836 Intake gasket $30.22 1 usually ships 1-5 days
8 272-7837 Exhaust gasket $49.18 1 usually ships 1-5 days
9 272-7838 Turbo charger assembly $5,286.39 1 usually ships 1-5 days
10 272-7839 Turbo exhaust in gasket $39.46 1 usually ships 1-5 days
11 272-7840 Turbo exhaust out gasket $46.62 1 usually ships 1-5 days
12 272-7841 Diesel turbo glow plug $217.20 4 usually ships 1-5 days
13 272-7842 Tube coolant $87.35 1 usually ships 1-5 days
14 272-7843 Lower radiator hose $36.77 1 usually ships 1-5 days
15 272-7795 Oil fill cap $38.04 1 usually ships 1-5 days
16 272-7808 Fuel filter cartridge $16.27 1 usually ships 1-5 days
17 272-7812 Starter motor $1,491.27 1 usually ships 1-5 days
18 272-7796 Thermostat kit $87.35 1 usually ships 16-41 days
19 272-7809 Oil filter cartridge $23.05 1 usually ships 16-41 days
20 272-7815 Throttle shut down actuator $1,423.63 1 usually ships 1-5 days
21 272-7844 Water pump $976.04 1 usually ships 16-41 days
