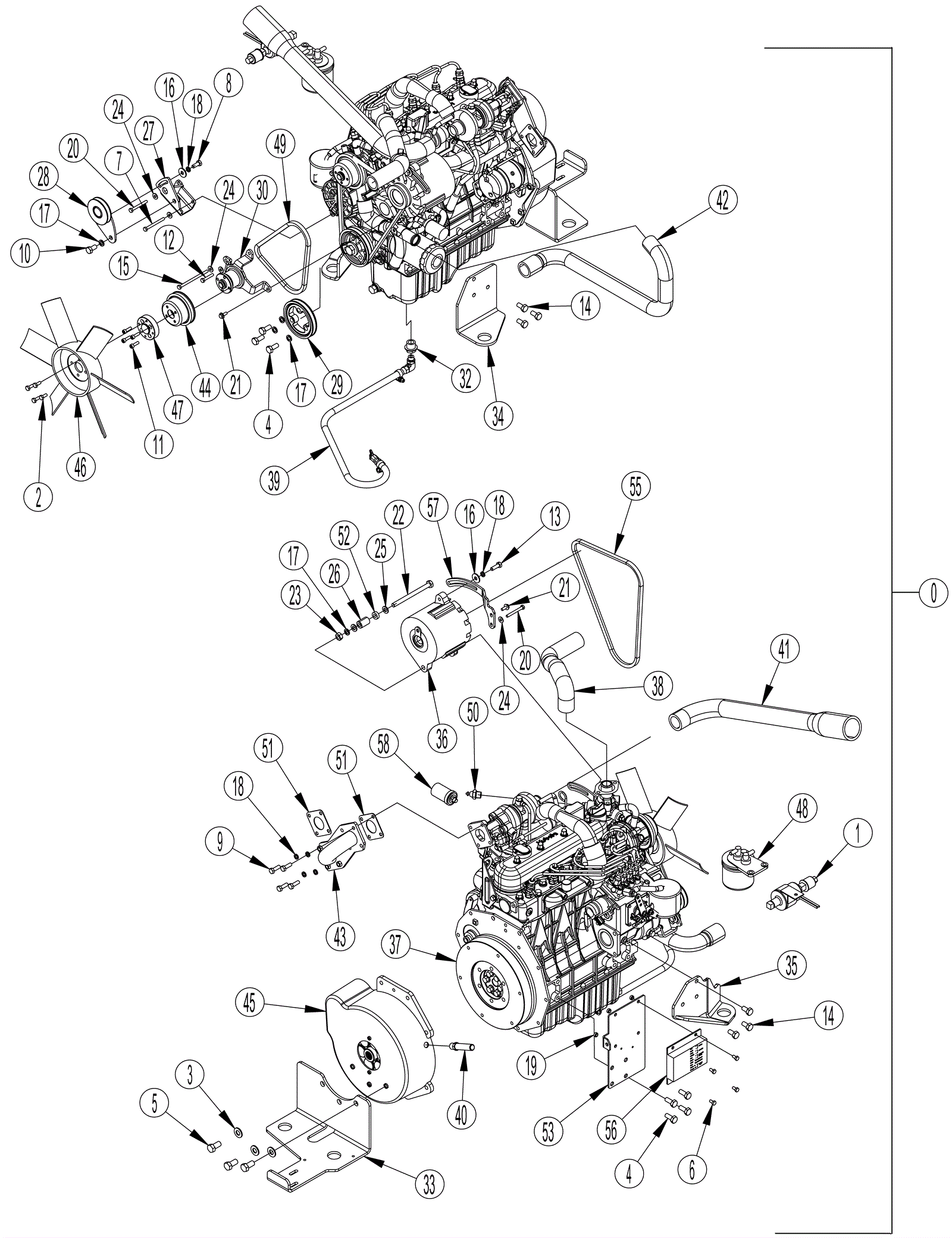

SC8000 Engine Assembly 2 - Diesel

#PartDescriptionPriceReqNotesAvailability
0 272-7800 Diesel engine assembly $30,623.77 1 (includes 1-58) usually ships 1-5 days
1 272-7818 Electronic fuel pump $321.78 1 usually ships 1-5 days
2 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel $0.99 4 ships same day
3 999-0114 Washer 1/2 SAE flat $0.99 3 ships same day
4 172-4369 Screw M10-1 1/4 x 25mm hex head $12.31 7 usually ships 1-5 days
5 272-1659 Bolt 1/2-13 X 1 lock $12.31 3 usually ships 1-5 days
6 999-9116 Screw M6-1 x 12mm hex head stainless steel $0.99 4 ships same day
7 999-9135 Screw M6-1 x 65mm hex cap stainless steel $0.99 1 usually ships 1-5 days
8 999-9092 Screw M8-1.25 x 20mm hex head stainless steel $2.79 1 ships same day
9 999-0801 Screw M8-1.25 x 45mm hex head zinc $1.38 4 ships same day
10 172-4897 Screw M10-1/4 x 20mm hex thread head $12.31 1 usually ships 1-5 days
11 172-0698 Screw M6 x 20 socket head $12.31 4 usually ships 1-5 days
12 172-4428 Screw M6-1.0 x 35mm hex $10.85 1 usually ships 17-28 days
13 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 1 ships same day
14 272-1605 Bolt M10-1.5 x 20mm hex head nylon lock $12.31 6 usually ships 17-28 days
15 999-1329 Screw M6-1 x 100mm hex head $2.20 1 ships same day
16 999-9097 Washer M8 flat stainless steel $0.99 2 ships same day
17 999-1884 Washer M10 nord lock $5.02 5 ships same day
18 999-1885 Washer M8 nord lock $5.52 6 ships same day
19 272-7824 Nut M6-1 self clinching $12.31 4 usually ships 1-5 days
20 999-9093 Screw M6-1 x 55mm hex head stainless steel $0.99 2 ships same day
21 999-1886 Screw M6-1 x 16mm hex flange $1.21 2 usually ships 1-5 days
22 999-9093 Screw M6-1 x 55mm hex head stainless steel $0.99 1 ships same day
23 999-1887 Nut M10-1 1/4 hex $5.49 1 usually ships 1-5 days
24 999-0238 Washer 1/4 internal star lock zinc plated $0.99 5 ships same day
25 181-0015 Washer flat $9.26 2 usually ships 17-28 days
26 272-7734 Spacer $38.62 1 usually ships 1-5 days
27 272-7745 Offset bracket $160.86 1 usually ships 1-5 days
28 272-7746 Idler pulley $245.37 1 usually ships 1-5 days
29 272-7748 Pulley crank $314.39 1 usually ships 1-5 days
30 272-7749 Offset fan bracket $643.69 1 usually ships 1-5 days
32 272-7772 Oil pan fitting $101.56 1 usually ships 1-5 days
33 N/A Not available Call for price 1 (rear engine mount) usually ships 3-26 days
34 N/A Not available Call for price 1 (right side engine mount) usually ships 3-26 days
35 N/A Not available Call for price 1 (left side engine mount) usually ships 3-26 days
36 272-7751 105amp alternator $498.29 1 usually ships 1-5 days
37 N/A Not available Call for price 1 (diesel engine) usually ships 3-26 days
38 272-7752 Radiator hose $192.01 1 usually ships 1-5 days
39 272-7753 Oil drain assembly $118.65 1 usually ships 1-5 days
40 272-7817 Speed sensor $452.27 1 usually ships 1-5 days
41 272-7820 Air intake hose $130.50 1 usually ships 1-5 days
42 272-7754 Lower radiator hose $149.02 1 usually ships 1-5 days
43 272-7829 Exhaust adaptor weldment $326.37 1 usually ships 1-5 days
44 272-7755 89mm fan pulley $104.61 1 usually ships 1-5 days
45 272-7756 Pump housing assembly $499.39 1 usually ships 1-5 days
46 272-3298 Engine cooling fan $192.01 1 usually ships 1-5 days
47 272-7757 Fan spacer $179.06 1 usually ships 1-5 days
48 272-7830 Fuel filter kit $176.52 1 usually ships 1-5 days
49 272-7747 Fan belt $78.58 1 usually ships 1-5 days
50 272-7814 Temperature switch $169.11 1 usually ships 17-28 days
51 272-7821 Exhaust gasket $63.07 2 usually ships 1-5 days
52 272-7758 Coil bracket spacer $34.14 1 usually ships 1-5 days
53 272-7831 Fuel pump bracket $95.66 1 usually ships 1-5 days
55 272-7759 V-belt $65.98 1 usually ships 1-5 days
56 272-7816 Governor controller $2,373.51 1 usually ships 17-28 days
57 272-7760 Diesel alternator bracket $87.54 1 usually ships 1-5 days
58 272-7813 Oil pressure switch $291.39 1 usually ships 17-28 days
N/S 272-7832 Kubota diesel harness $727.47 1 usually ships 1-5 days
