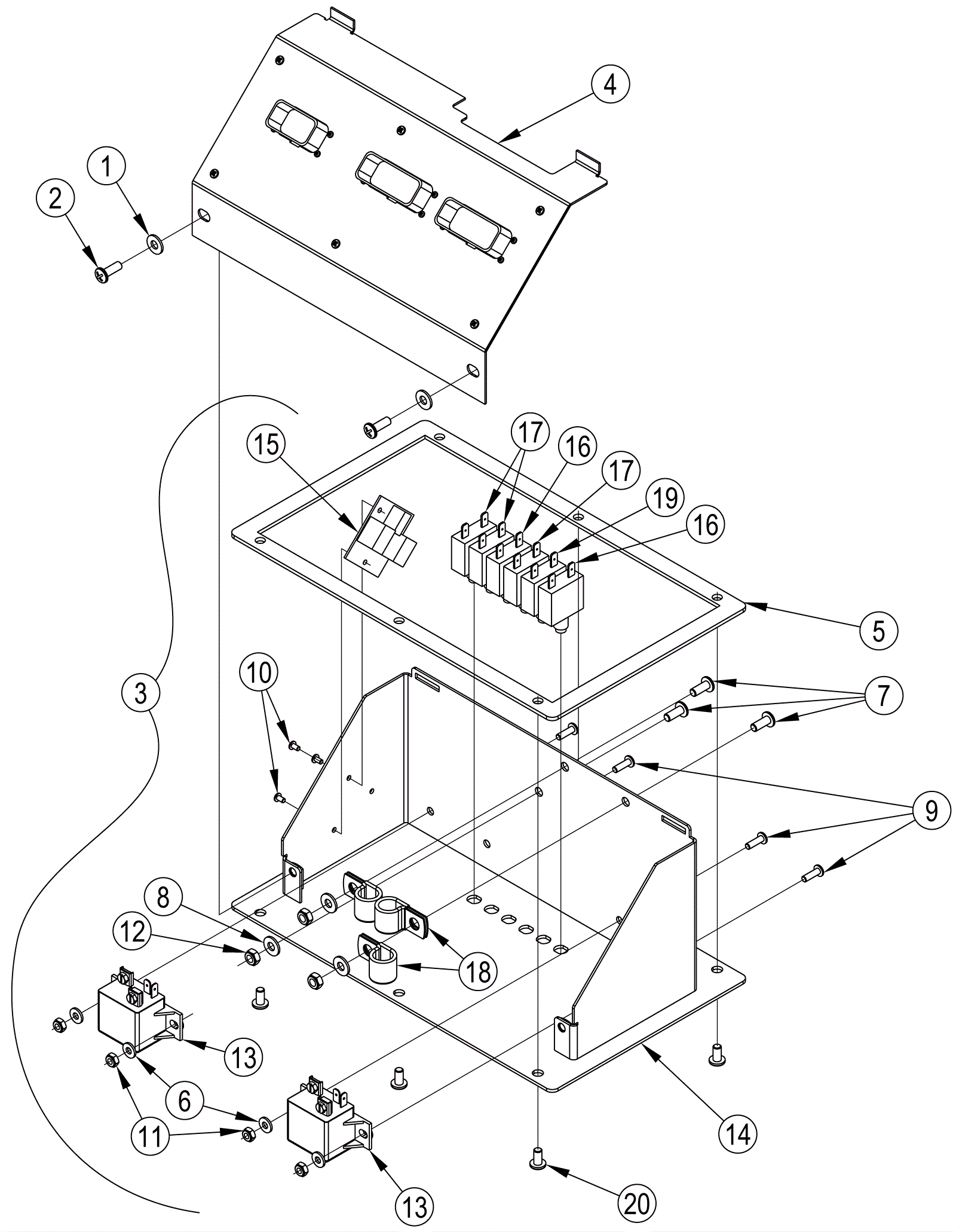

SC8000 Control Board Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
2 999-0456 Screw 1/4-20 x 3/4 pan head phillips stainless steel $1.76 2 ships same day
3a 272-7721 Control board relay assembly $894.58 1 (LPG only) (includes 6-19) usually ships 1-5 days
3b 272-7722 Diesel control board relay assembly (OBSOLETE) Call for price 6 (diesel only) (includes 6-19) usually ships 1-5 days
4 272-7723 Main control assembly $1,965.76 1 usually ships 1-5 days
5 272-7724 Control box gasket $10.90 1 usually ships 1-5 days
6 999-1862 Washer #10 flat SAE stainless steel $0.99 1 (quantity of 4 on diesel models) ships same day
7 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel $0.99 3 ships same day
8 999-0123 Washer 1/4 SAE flat zinc plated $0.99 3 ships same day
9 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel $1.54 2 (quantity of 4 on diesel models) ships same day
10 999-0418 Screw 6-32 x 1/4 pan head slotted zinc plated $0.99 3 ships same day
11 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 (quantity of 4 on diesel models) ships same day
12 999-0190 Nut 1/4-20 hex plain finish $0.99 3 ships same day
13 272-7725 12V 75amp relay $76.20 1 (quantity of 2 on diesel models) usually ships 16-41 days
14 272-7726 Control board weldment $187.81 1 usually ships 1-5 days
15 172-0826 Relay assembly $176.61 1 usually ships 1-5 days
16 272-9755 15amp circuit breaker $13.70 2 usually ships 16-41 days
17 272-7727 20amp circuit breaker $25.87 3 ships same day
18 272-3351 P clamp $10.90 3 usually ships 1-5 days
19 272-9374 10amp circuit breaker $21.77 1 ships same day
20 999-1129 Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc $0.99 6 ships same day
N/S 272-7704 Control board box assembly $3,863.39 1 (LPG only) (includes 1-5 and 20) usually ships 1-5 days
N/S 272-7705 Diesel control board box assembly $3,998.63 1 (diesel only) (includes 1-5 and 20) usually ships 1-5 days
