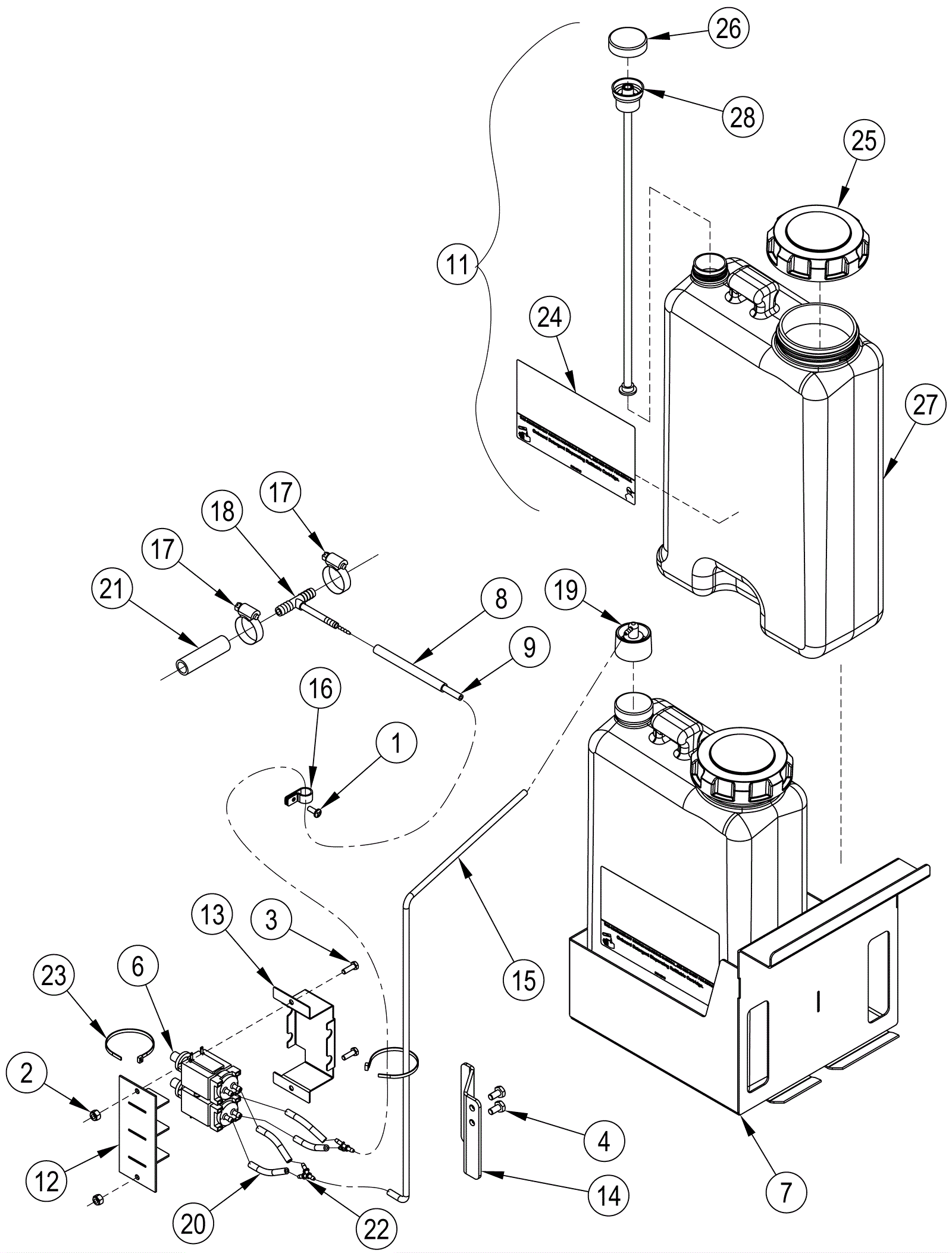

SC8000 Detergent Injection Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 1 ships same day
2 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 ships same day
3 172-2336 Screw 10-24 x 3/4 hex washer head stainless steel $8.18 2 ships same day
4 272-9677 Screw 1/4-20 x 1/2 hex head $10.90 2 usually ships 1-5 days
6 272-7679 12V detergent pump $257.94 2 usually ships 1-5 days
7 272-7680 Chemical bottle weldment box $345.93 1 usually ships 1-5 days
8 272-7681 Conduit hose jacket $17.68 1 usually ships 1-5 days
9 272-7682 Hose 1/8 x 32 inch $50.59 1 usually ships 1-5 days
11 272-7683 Chemical bottle assembly $280.30 2 (includes 24-28) usually ships 1-5 days
12 272-7684 Pump bracket weldment $89.90 1 usually ships 1-5 days
13 272-7685 Pump cover plate $32.47 1 usually ships 1-5 days
14 272-7686 Deflector plate $19.09 1 usually ships 1-5 days
15 272-7687 27 inch chemical resistant hose $16.27 1 usually ships 1-5 days
16 272-8806 P clamp $10.90 1 usually ships 1-5 days
17 172-8494 #6 hose clamp SAE $9.60 2 usually ships 1-5 days
18 272-8135 Tee assembly $10.90 1 usually ships 1-5 days
19 272-2182 Dry break cap $30.22 1 ships same day
20 272-7688 2 inch chemical resistant hose $10.63 4 usually ships 1-5 days
21 172-7747 Insulated tubing $10.90 1 usually ships 1-5 days
22 272-7689 1/8 inch y barb fitting $10.90 2 usually ships 16-41 days
24 272-2347 Blank decal $10.90 1 usually ships 1-5 days
25 272-2180 Solution fill cap $6.79 1 ships same day
26 272-7690 Cap $12.18 1 usually ships 1-5 days
27 272-7691 Chemical tank $91.18 1 usually ships 1-5 days
28 272-7692 Dry break insert $21.77 1 usually ships 1-5 days
