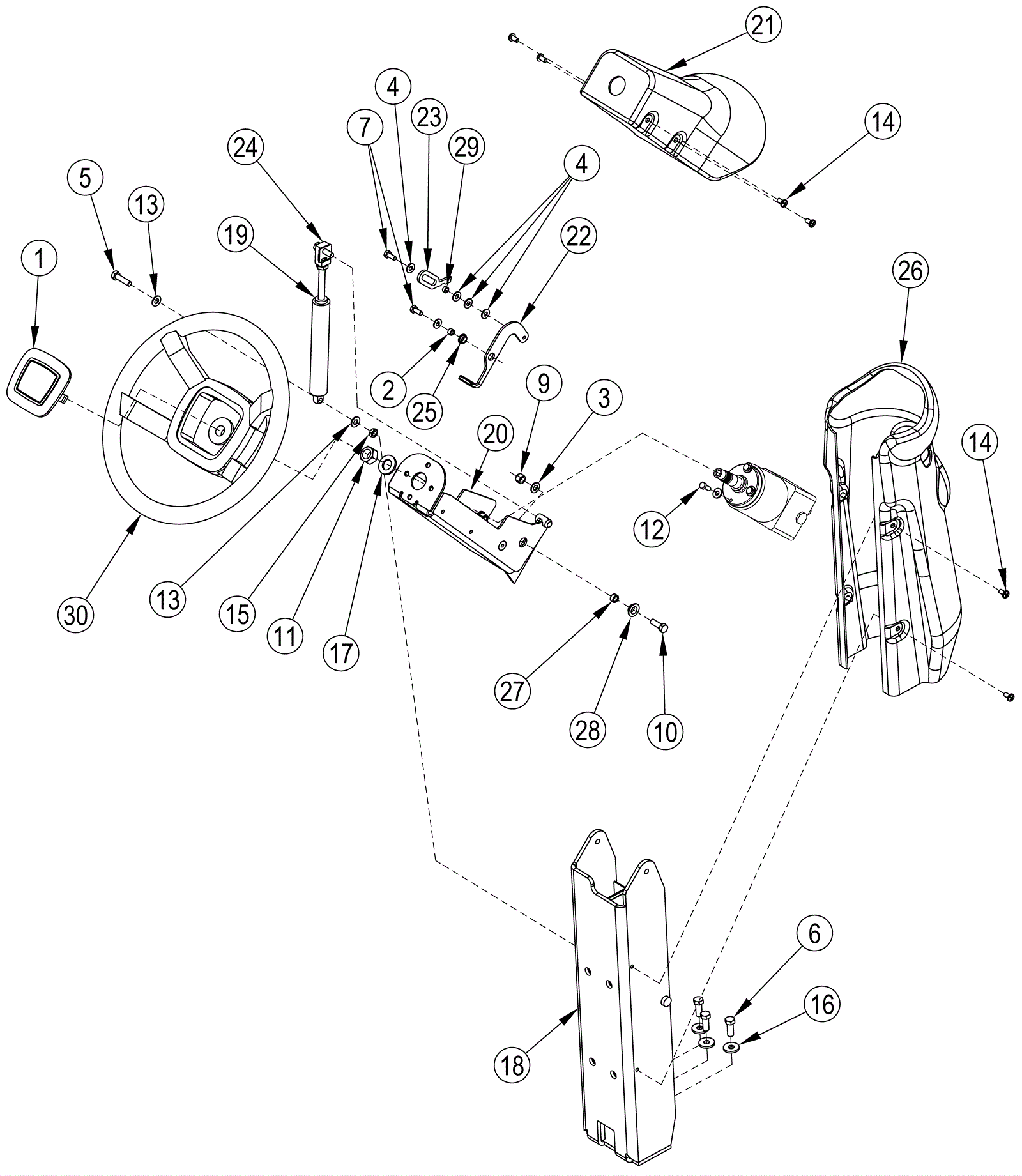

SC8000 Steering Assembly

#PartDescriptionPriceReqNotesAvailability
1 272-7657 Steering wheel cover $10.90 1 usually ships 1-5 days
2 172-0186 Bushing $12.18 1 usually ships 1-5 days
3 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
4 999-0123 Washer 1/4 SAE flat zinc plated $0.99 9 ships same day
5 999-0829 Screw 5/16-18 x 1 1/4 hex head plain finish $0.99 1 ships same day
6 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 3 ships same day
7 272-1465 Screw 1/4-20 X 5/8 hex head lock $10.90 2 usually ships 1-5 days
10 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 2 ships same day
11 172-4431 Nut M16-1 x 1.5mm hex $10.90 1 usually ships 1-5 days
12 272-1599 Bolt M6 x 15mm hex head nylok $10.90 4 usually ships 1-5 days
13 999-0406 Washer 5/16 internal star lock zinc plated $0.99 2 ships same day
14 999-1129 Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc $0.99 8 ships same day
15 999-0430 Nut 5/16-18 hex jam plain finish $0.99 1 ships same day
16 999-0120 Washer 3/8 SAE flat $0.99 3 ships same day
17 181-1076 Washer 11/16 x 1 1/4 flat $10.90 1 usually ships 1-5 days
18 272-7658 Lower column weldment $376.71 1 usually ships 1-5 days
19 272-7659 Locking gas spring $142.40 1 usually ships 1-5 days
20 272-7660 Upper column weldment $162.78 1 usually ships 1-5 days
21 172-3492 Upper column shroud $35.88 1 usually ships 1-5 days
22 272-7662 Lever $36.00 1 usually ships 1-5 days
23 272-7663 Lever $10.90 1 usually ships 1-5 days
24 272-7664 Rod end weldment $88.61 1 usually ships 1-5 days
25 272-7665 Flange bearing $13.70 1 usually ships 1-5 days
26 172-3491 Lower column shroud $97.86 1 usually ships 1-5 days
27 172-4008 Bushing $29.59 2 usually ships 16-41 days
28 272-9481 Flanged bearing $13.70 2 usually ships 16-41 days
29 272-9784 Bushing $13.70 1 usually ships 1-5 days
30 272-2969 Steering wheel $162.78 1 usually ships 1-5 days
