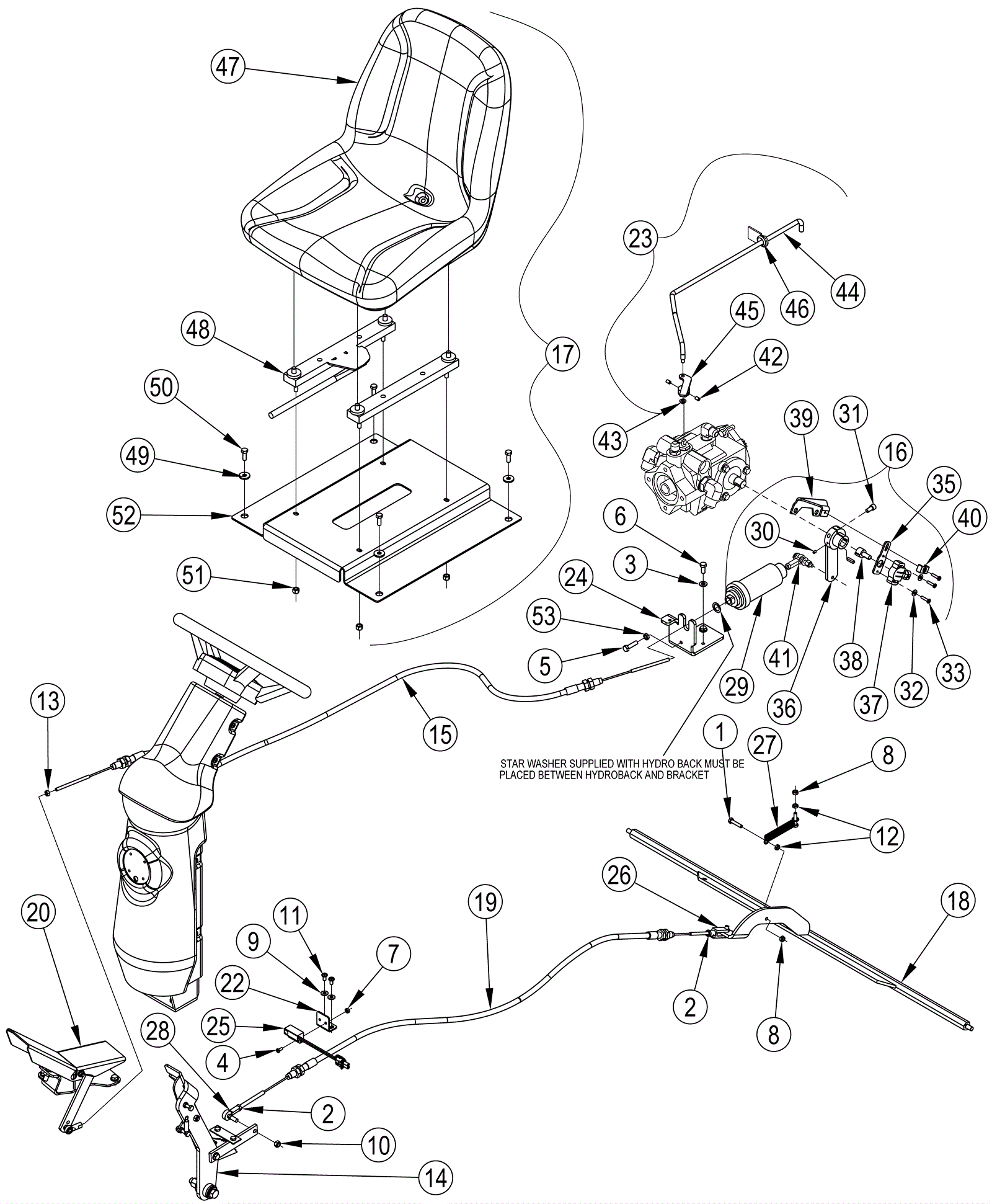

SC8000 Control Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated $0.99 2 ships same day
2 999-0340 Nut 5/16-24 nylon insert lock zinc plated $0.99 2 ships same day
3 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
4 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 1 ships same day
5 999-0829 Screw 5/16-18 x 1 1/4 hex head plain finish $0.99 1 ships same day
6 999-1232 Screw 5/16-18 x 3/4 hex head stainless steel $0.99 2 ships same day
7 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 1 ships same day
8 999-0190 Nut 1/4-20 hex plain finish $0.99 2 ships same day
9 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
10 999-0340 Nut 5/16-24 nylon insert lock zinc plated $0.99 1 ships same day
11 999-1129 Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc $0.99 2 ships same day
12 999-0971 Nut 1/4-20 jam stainless steel $0.99 2 ships same day
13 172-4974 Nut 1/4-28 hex machine $10.90 1 usually ships 1-5 days
14 272-7625 Brake pedal assembly $427.24 1 usually ships 1-5 days
15 272-7626 Push/pull control cable $169.96 1 usually ships 1-5 days
16 272-7627 Pintle assembly $582.86 1 (includes 29-41) usually ships 1-5 days
17 272-7628 Seat assembly $1,084.38 1 (includes 47-52) usually ships 1-5 days
18 272-7629 Brake bar weldment $210.68 1 usually ships 1-5 days
19 272-7630 Cable assembly $237.57 1 usually ships 1-5 days
20 272-7631 Foot pedal assembly $305.19 1 usually ships 1-5 days
22 272-7632 Bracket switch $20.37 1 usually ships 1-5 days
23 272-7633 Tow lever assembly $149.70 1 (includes 42-46) usually ships 1-5 days
24 272-7634 Plate adjuster $43.93 1 usually ships 1-5 days
25 272-8850 Proximity sensor $149.70 1 usually ships 16-41 days
26 172-9531 Clevis assembly $35.48 1 usually ships 1-5 days
27 172-2341 Extension spring $12.18 1 usually ships 16-41 days
28 172-2679 Rod end $57.12 1 usually ships 16-41 days
29 272-7635 Hydroback $311.73 1 usually ships 1-5 days
30 999-0284 Screw 10-24 x 3/16 cup point socket set alloy plain finish $0.99 1 ships same day
31 272-1644 Bolt 5/16-18 x 5/8 socket head $10.90 1 usually ships 1-5 days
32 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
33 181-0474 Screw 10-32 x 7/8 phillips pan head $10.90 3 usually ships 1-5 days
35 272-7636 Sensor plate $13.70 1 usually ships 1-5 days
36 272-7637 Lever weldment $169.96 1 usually ships 1-5 days
37 272-7638 Rotary sensor $190.31 1 usually ships 16-41 days
38 272-7639 Shaft adapter $10.90 1 usually ships 1-5 days
39 272-7640 Bracket $28.94 1 usually ships 1-5 days
40 272-7641 Encoder guide $11.66 1 usually ships 1-5 days
41 272-7642 Rod end throttle kit $74.79 1 usually ships 16-41 days
42 272-1454 Screw 1/4-20 X 3/8 socket set lock $10.90 1 usually ships 1-5 days
43 272-5254 Nut 1/4 push cap $9.60 2 usually ships 16-41 days
44 272-7643 Tow lever rod $74.79 1 usually ships 1-5 days
45 272-7644 Collar weldment $57.12 1 usually ships 1-5 days
46 172-0343 Grommet $10.90 1 usually ships 16-41 days
47 272-7645 Seat (OBSOLETE) $217.30 1 usually ships 1-5 days
48 170-8321 Seat adjuster kit $196.98 1 usually ships 1-5 days
49 172-2067 Washer 11/32 x 1/8 flat $10.90 1 usually ships 16-41 days
50 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel $0.99 4 ships same day
52 272-7646 Seat mount plate $190.31 4 usually ships 1-5 days
53 999-0430 Nut 5/16-18 hex jam plain finish $0.99 1 ships same day
