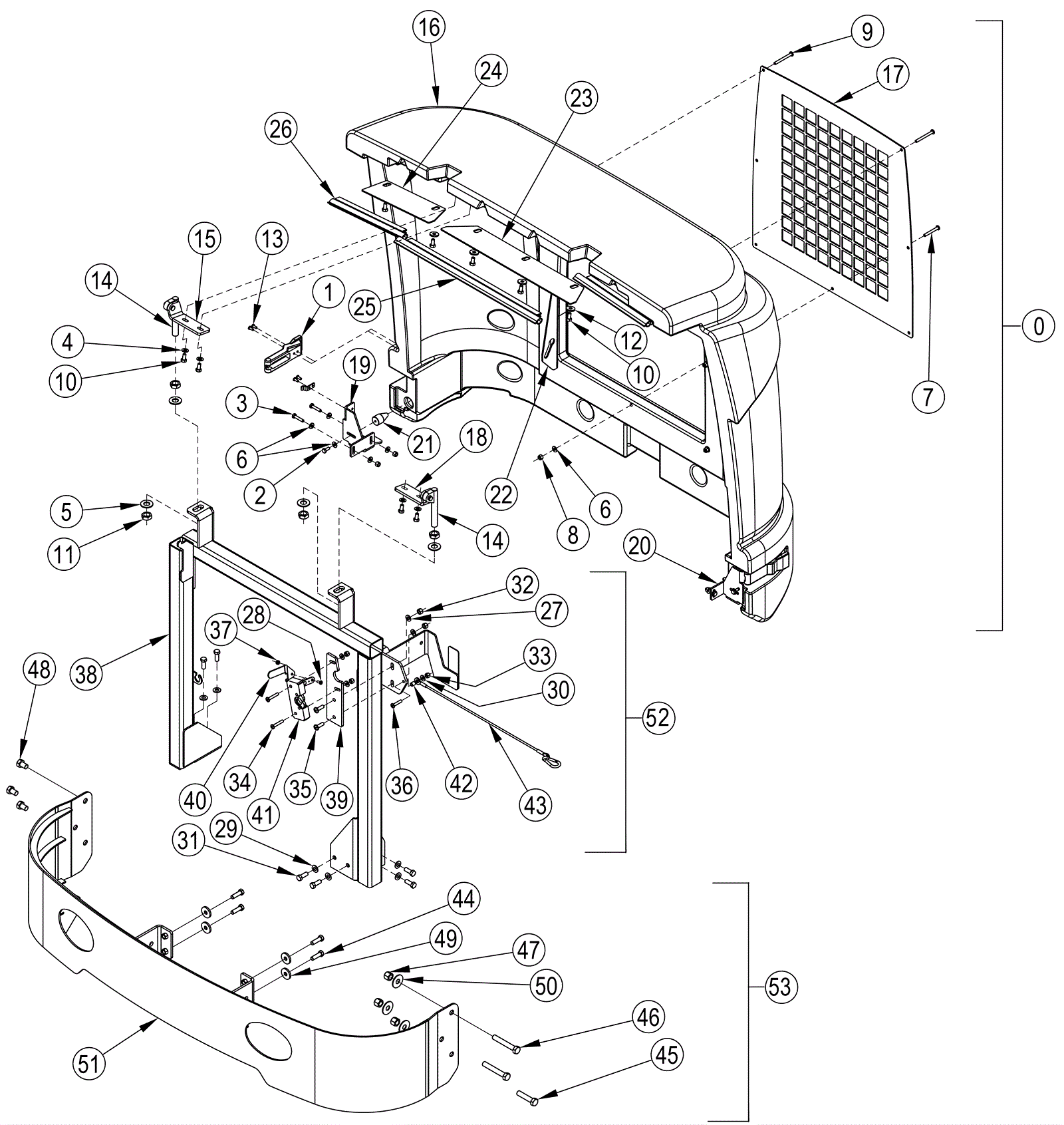

SC8000 Cover Assembly

#PartDescriptionPriceReqNotesAvailability
0 272-7594 Rear cover assembly $1,762.39 1 (includes 1-26) usually ships 1-5 days
1 172-3697 Rubber hook $142.40 2 usually ships 16-41 days
2 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 2 ships same day
3 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated $0.99 4 ships same day
4 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
5 999-0349 Washer 5/8 SAE flat $0.99 4 ships same day
6 999-0123 Washer 1/4 SAE flat zinc plated $0.99 17 ships same day
7 999-1030 Screw 1/4-20 x 2 pan head phillips stainless steel $2.05 5 ships same day
8 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 11 ships same day
9 172-3256 Screw 1/4 - 20 x 2 1/4 pan phil $10.90 2 usually ships 1-5 days
10 272-9785 Screw 5/16-18 x 5/8 hex head lock $10.90 11 usually ships 16-41 days
11 181-0988 Nut 5/8-18 hex jam lock $10.90 4 usually ships 1-5 days
12 172-2067 Washer 11/32 x 1/8 flat $10.90 7 usually ships 16-41 days
13 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel $0.99 8 ships same day
14 272-7607 Hinge weldment $61.09 2 usually ships 1-5 days
15 272-7608 Right side hinge $38.04 1 usually ships 1-5 days
16 272-7609 Rear cover $867.69 1 usually ships 1-5 days
17 272-7610 Rear grille $190.31 1 usually ships 1-5 days
18 272-7611 Left side hinge $38.04 1 usually ships 1-5 days
19 272-7612 Right side rear cover support $50.59 1 usually ships 1-5 days
20 272-7613 Left side rear cover support $50.59 1 usually ships 1-5 days
21 272-7614 Tapered pin $28.94 2 usually ships 1-5 days
22 272-7615 Bracket $28.94 1 usually ships 1-5 days
23 272-7616 Center seal mounting plate $43.93 1 usually ships 1-5 days
24 272-7617 Side seal mount plate $24.47 2 usually ships 1-5 days
25 272-7618 Center cover gasket $17.68 1 usually ships 1-5 days
26 272-7619 Side cover gasket $12.18 2 usually ships 1-5 days
27 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
28 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 1 ships same day
29 999-0120 Washer 3/8 SAE flat $0.99 6 ships same day
30 999-0123 Washer 1/4 SAE flat zinc plated $0.99 3 ships same day
31 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 6 ships same day
33 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 3 ships same day
34 999-0523 Screw 1/4-20 x 1 1/2 pan head phillips stainless steel $0.99 2 ships same day
35 272-1546 Screw 5/16-18 X 1 $10.90 2 usually ships 1-5 days
36 999-0625 Screw 1/4-20 x 1 1/4 pan head phillips stainless steel $1.07 1 ships same day
37 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 1 ships same day
38 272-7620 Cover support weldment $594.70 1 usually ships 1-5 days
39 272-7621 Latch mount plate $28.94 1 usually ships 1-5 days
40 272-7622 Latch handle $16.27 1 usually ships 1-5 days
41 272-7623 Right side latch $119.48 1 usually ships 1-5 days
42 172-0400 Bushing $13.70 1 usually ships 1-5 days
43 272-9973 Quick link cable assembly $16.27 1 usually ships 1-5 days
44 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel $7.56 4 ships same day
45 999-0691 Bolt 1/2-13 x 2 1/4 hex head grade 5 $1.50 1 ships same day
46 999-0930 Bolt 1/2-13 x 3 1/4 hex cap grade 8 plain finish $2.79 2 usually ships 1-5 days
47 999-0118 Nut 1/2-13 nylon insert lock zinc plated $0.99 3 ships same day
48 999-0815 Screw 1/2-13 x 3/4 hex hot dipped galvanized $0.99 3 usually ships 1-5 days
49 172-1939 Washer 13/32 x 1 1/4 x 5/32 $10.90 4 usually ships 16-41 days
50 272-1539 Washer .53 x 1 1/2 x .07 plated $10.90 3 usually ships 1-5 days
51 272-7624 Heavy bumper weldment $1,965.76 1 usually ships 1-5 days
52 272-7603 Cover support assembly $871.14 1 (includes 27-43) usually ships 1-5 days
53 272-7601 Heavy bumper assembly $1,328.49 1 (includes 44-51) usually ships 1-5 days
